247.886640 (31AS615E099) - Craftsman Snow Thrower (2004) (Sears) Belts, Frame & Engine Parts Diagram

Snow Thrower

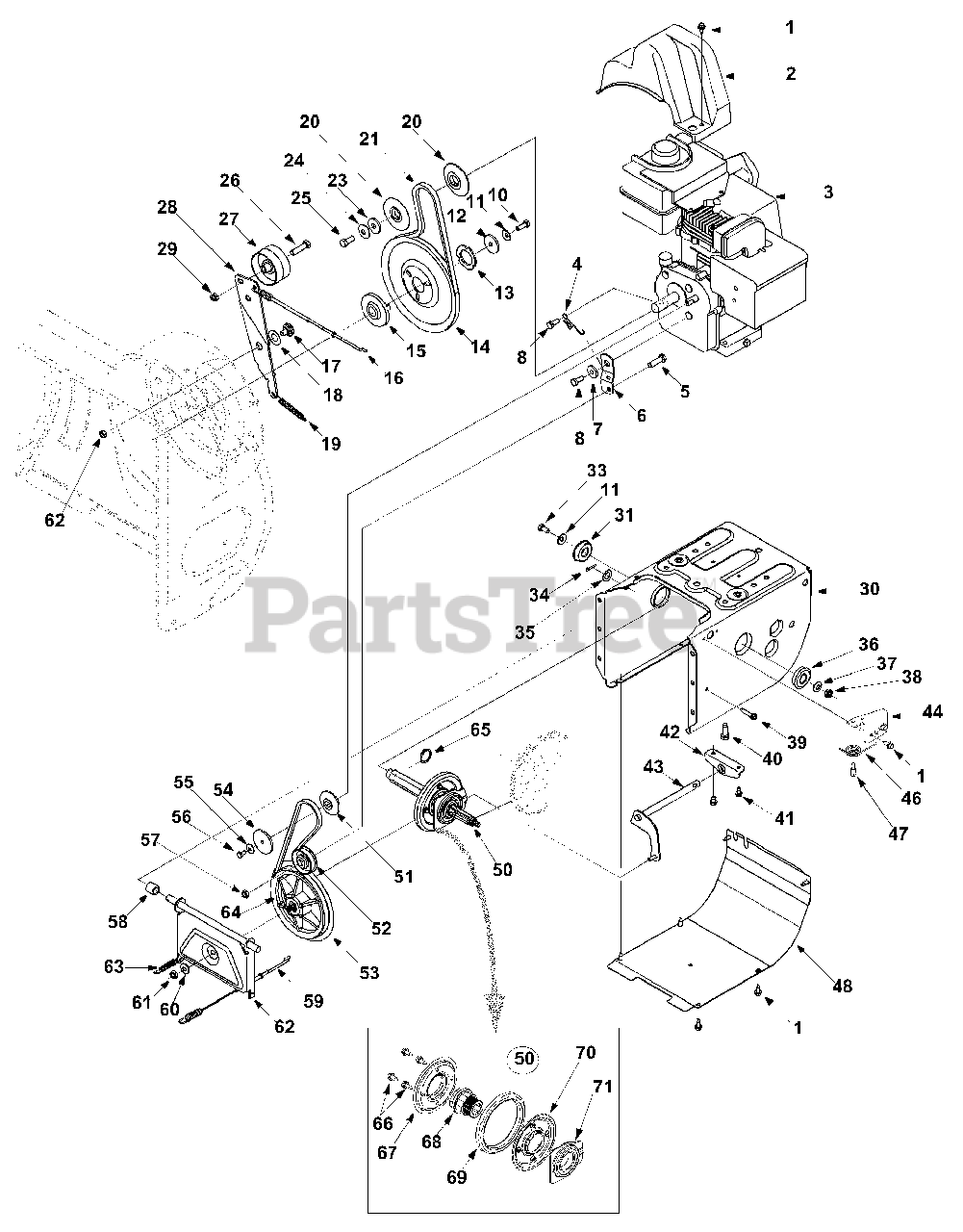

Belts, Frame & Engine Parts Diagram

  • Title

1

MTD 710-1652

TT Screw 1/4-20 x 0.625"

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-1324

Belt Cover

$21.99

$

Usually ships in 3-6 days

0

3

Engine: Craftsman 143.015007

$

$

Not available

4

MTD 732-0339

Extension Spring
(Superseded to 932-0339)

$

$

Not available

5

MTD 710-3005

Hex Bolt 3/8-16 x 1.25"

$3.99

$

In Stock, Qty 10

0

6

MTD 05896A

Idler Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-0627

Lock Bolt 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1245B

Lock Bolt 5/16-24 x 0.875"

$8.49

$

In Stock, only 2 left!

0

11

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0505

Flat Washer

$6.49

$

In Stock, only 2 left!

0

13

MTD 736-0507

Special Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

14

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

15

MTD 748-0360

Pulley Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 2 left!

0

16

MTD 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

17

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

18

MTD 736-0167

Flat Washer
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 7

0

19

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

20

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

21

MTD 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

23

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 15

0

24

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

25

MTD 710-0696

Hex Bolt 3/8-24 x 0.875"

$6.99

$

In Stock, only 2 left!

0

26

MTD 710-0459A

Hex Bolt (Special) 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

27

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

28

MTD 784-5632B

Auger Idler Bracket
(Superseded to 984-0064-0637)

Variations

MTD 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

29

MTD 712-0116

Jam Lock Nut

$4.99

$

In Stock, Qty 6

0

30

MTD 784-5630B

Snow Thrower Frame

$

$

Not available

31

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

33

MTD 710-0538

Lock Bolt 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 9

0

34

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 14

0

35

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

36

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

37

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

38

MTD 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

39

MTD 710-0809

TT Screw 1/4-20 x 1.25"

$6.99

$

In Stock, Qty 19

0

40

MTD 710-0654A

Tt Sems Screw 3/8-16 x 1.0"

$4.49

$

In Stock, only 3 left!

0

41

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

42

MTD 784-5590

Shift Bracket

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

43

MTD 684-0013B

Shift Rod Assembly
(Superseded to 684-04243)

$

$

Not available

44

MTD 784-5689A

Auger Cable Guide Bracket
(Superseded to 784-5689A-0637)

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

46

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

47

MTD 738-0924

C Screw 1/4-28 x 0.375"
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

48

MTD 784-5638A

Snow Thrower Frame Cover

Variations

MTD 784-5638A-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5638A-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

MTD 784-5638A-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5638A-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5638A-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5638A-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5638A-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

MTD 784-5638A-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5638A-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 784-5638A-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-5638A-0721

Frame Cover, Black - SEARS RED (0721)

$

$

Not available

$

$

49

MTD 717-04094

Hex Shaft
(Superseded to 917-04094)

$96.99

$

In Stock, only 2 left!

0

51

MTD 756-0985

Pulley Half

$

$

Not available

52

MTD 756-0313

Flat Idler Pulley

$26.99

$

In Stock, Qty 6

0

54

MTD 756-0984

Pulley Half

$

$

Not available

55

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

56

MTD 710-0230

Hex Bolt 1/4-28 x 0.50"

$

$

Not available

57

MTD 712-0181

Jam Nut 3/8-16

$4.49

$

In Stock, only 3 left!

0

58

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

59

MTD 746-0898B

Drive Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

60

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

61

MTD 712-0711

Jam Nut

$4.49

$

In Stock, Qty 20+

0

62

MTD 684-0021

Support Bracket: Friction Wheel
(Superseded to 984-0021-0637)

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

64

MTD 656-0012A

Friction Wheel Disc
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

65

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

66

MTD 710-1652

Hex washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

67

MTD 790-00010

Friction Plate

$13.99

$

In Stock, only 1 left!

0

68

MTD 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

69

MTD 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

70

MTD 790-00011

Friction Plate

$13.99

$

Usually ships in 3-6 days

0

71

MTD 618-0063

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

0
