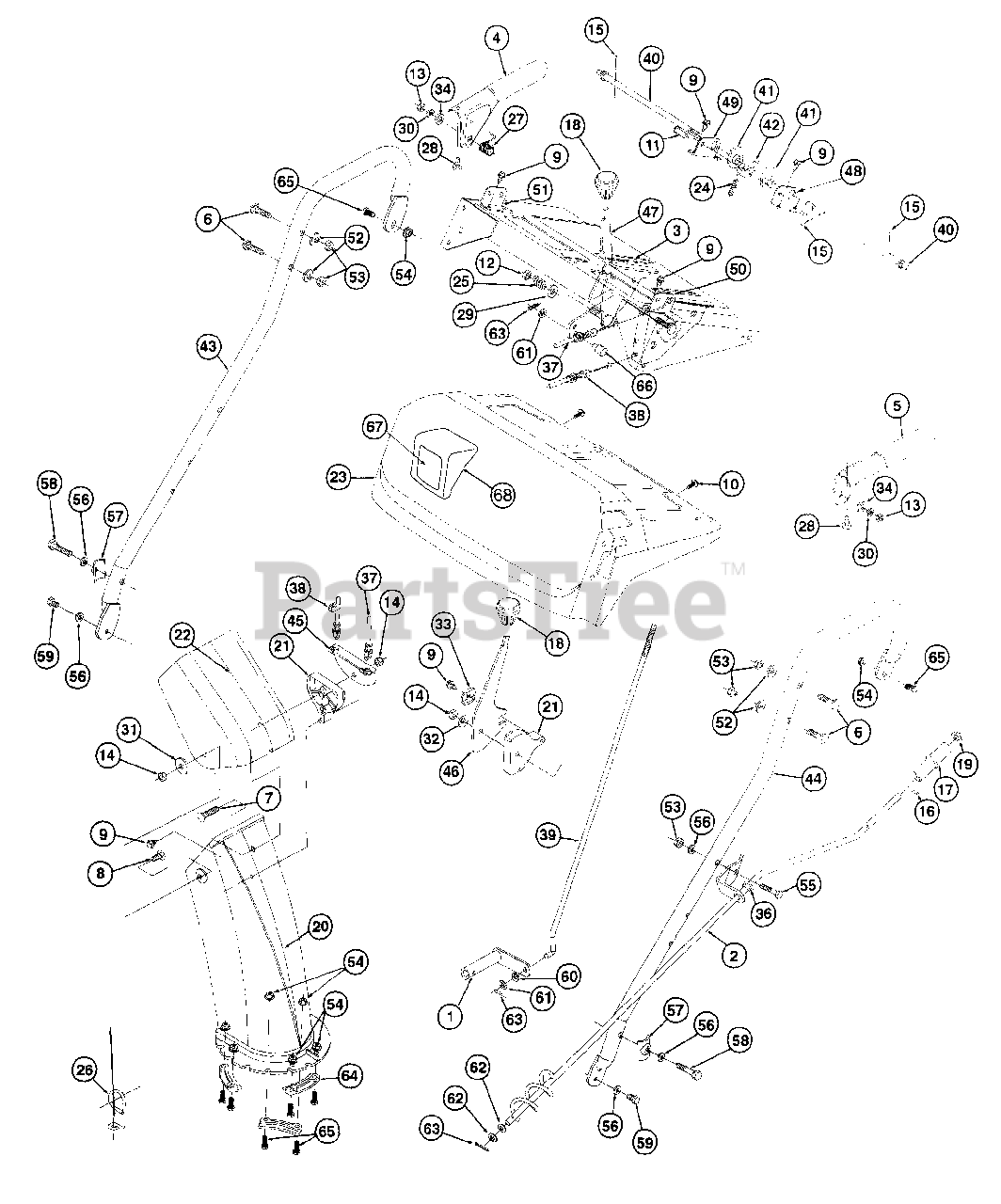

247.885690 (317E758F099) - Craftsman Snow Thrower (1997) (Sears) Handle Assembly Parts Diagram

Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

MTD 684-0008-0637

Shift Arm Assembly
(Superseded to 684-0008A-0637)

$50.99

$

Usually ships in 3-6 days

0

2

MTD 684-0022

Chute Crank Assembly
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

3

MTD 684-0032A

Handle Panel Assembly

Variations

MTD 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 684-0112

Handle Assy. Engagement RH

$

$

Not available

5

MTD 684-0111

Handle Assy. Engagement LH
(Superseded to 684-0111B)

$

$

Not available

6

MTD 710-1250

Carriage Bolt

$4.99

$

In Stock, Qty 5

0

7

MTD 710-0262

Carriage Bolt

$3.99

$

In Stock, Qty 12

0

8

MTD 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0896

Hex Screw

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1003

Tapp. Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

11

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

12

MTD 712-0116

Lock Nut

$4.99

$

In Stock, Qty 6

0

13

MTD 712-0267

Hex Nut
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-3068

Hex Patch Lock Nut
(Superseded to 912-3009)

$

$

Not available

15

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

16

MTD 715-0138

Rolling Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

17

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

18

MTD 720-0300

Shift Knob

$

$

Not available

19

MTD 726-0100

Push Cap

$4.49

$

In Stock, only 3 left!

0

20

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

21

MTD 731-1313B

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

22

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

23

MTD 731-1773

Handle Panel
(Superseded to 731-1773A)

$

$

Not available

24

MTD 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

25

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

26

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

27

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

28

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

29

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0231

Washer

$4.99

$

In Stock, Qty 11

0

32

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0506

Washer
(Superseded to 736-0506A)

$

$

Not available

34

MTD 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

?35

MTD 737-0133

Plastilube
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 19

0

36

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

37

MTD 746-0896

Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

38

MTD 746-0901

Chute Deflector Cable
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

39

MTD 747-0798A

Shift Rod

$38.99

$

Usually ships in 3-6 days

0

40

MTD 747-0877

CAM Rod

$22.99

$

Usually ships in 3-6 days

0

41

MTD 748-0362

CAM Handle Lock

$7.99

$

Usually ships in 3-6 days

0

42

MTD 748-0363

Pawl Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

43

MTD 749-0908A-0637

RH Handle

$

$

Not available

44

MTD 749-0909-0637

LH Handle

$

$

Not available

45

MTD 784-5594

Cable Bracket

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

46

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

47

MTD 784-5619

Shift Handle
(Superseded to 753-05395)

$

$

Not available

48

MTD 784-5679

Support Bracket LH
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

49

MTD 784-5680

Support Bracket RH
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

50

MTD 784-5681

Handle Support Bracket LH

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

51

MTD 784-5682

Handle Support Bracket RH
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

52

MTD 736-0242

Cupped Washer

$4.49

$

In Stock, Qty 20+

0

53

MTD 712-0267

Hex Nut
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

54

MTD 712-3027

Hex Flange Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

55

MTD 710-0442

Hex Bolt
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

56

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

58

MTD 710-3180

Hex Bolt

$5.49

$

In Stock, Qty 15

0

59

MTD 710-3025

Hex Bolt

$3.99

$

In Stock, Qty 8

0

60

MTD 736-0271

Spring Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

61

MTD 736-0264

Flat Washer

$6.99

$

In Stock, only 1 left!

0

62

MTD 736-0140

Flat Washer

$7.49

$

In Stock, Qty 7

0

63

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

64

MTD 731-0851A

Chute Flange Keepers

$4.49

$

In Stock, Qty 20+

0

65

MTD 710-3015

Hex Bolt

$3.99

$

In Stock, Qty 20+

0

66

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

67

MTD 725-1300

Headlight
(Superseded to 925-1300)

$

$

Not available

68

MTD 731-1317

Bezel

$

$

Not available

?69

MTD 629-0058

Harness for Headlight
(Superseded to 929-0058B)

Note: (Not Shown)

$

$

Not available
