247.885570 (317E738E099) - Craftsman Snow Thrower (1997) (Sears) Belt Drive Parts Diagram

Snow Thrower

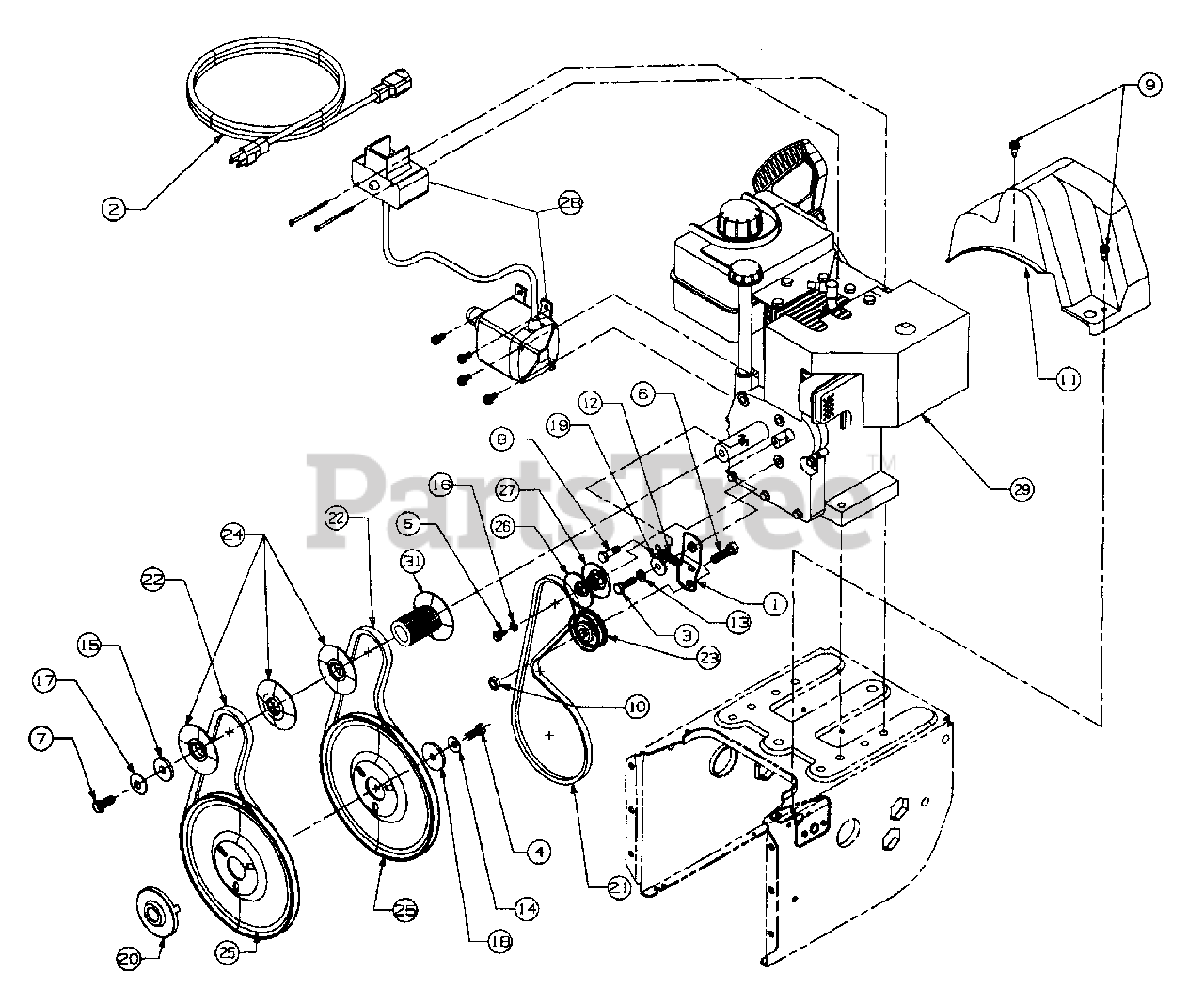

Belt Drive Parts Diagram

  • Title
1

MTD 05896A

Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

3

MTD 710-0117

Screw
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0157

Screw

$4.49

$

In Stock, Qty 15

0

5

MTD 710-0230

Screw

$

$

Not available

6

MTD 710-0342

Screw
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0696

Screw

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-0888

Screw

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0181

Hex Nut

$4.49

$

In Stock, only 3 left!

0

11

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 3 left!

0

12

MTD 732-0710

Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

13

MTD 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

16

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

17

MTD 736-0331

Washer

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-0505

Washer

$6.49

$

In Stock, Qty 11

0

19

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

20

MTD 748-0360

Pulley Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

21

MTD 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

22

MTD 754-0430

V-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

MTD 756-0313

Idler, Flat

$26.99

$

In Stock, only 3 left!

0

24

MTD 756-0620

Pulley, Half

$

$

Not available

25

MTD 756-0967

Pulley Auger

$56.99

$

Usually ships in 3-6 days

0

26

MTD 756-0986

Pulley, Half

$

$

Not available

27

MTD 756-0987

Pulley, Half
(Superseded to 956-0987)

$

$

Not available

28

MTD 390-985-000

Starter

$

$

Currently unavailable

29

Engine

$

$

Not available

31

MTD 756-0621

Pulley, Half

$

$

Not available

Owner's Manual

Note: (Not Shown)

$

$

Not available
