247.885550 (315-718E099) - Craftsman Snow Thrower (1995) (Sears) Handle Assembly Parts Diagram

Snow Thrower

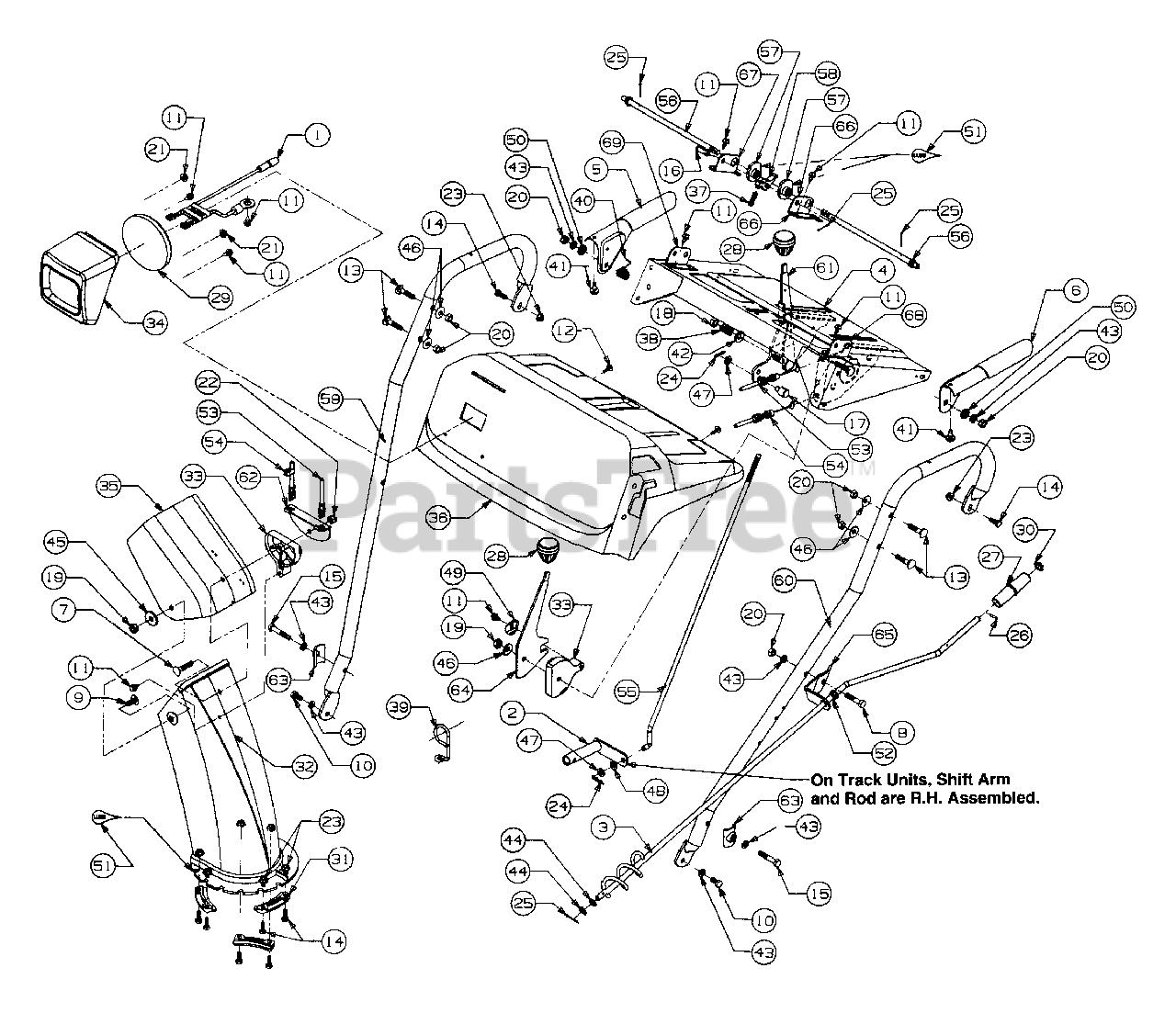

Handle Assembly Parts Diagram

  • Title

1

MTD 629-0058

Harness Light
(Superseded to 929-0058B)

$

$

Not available

2

MTD 684-0008

Arm, Shift
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

MTD 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

3

MTD 684-0022

Crank, Chute
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

4

MTD 684-0032A

Panel, Handle w/Tilt

Variations

MTD 684-0032A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0032A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0032A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0032A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0032A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0032A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

MTD 684-0036

Handle, Engagement R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

6

MTD 684-0037

Handle, Engagement L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

7

MTD 710-0262

Bolt Carriage

$3.99

$

In Stock, Qty 12

0

8

MTD 710-0442

Screw, Hex
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

9

MTD 710-0451

Bolt, Carriage

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0538

Hex Screw

$4.49

$

In Stock, Qty 9

0

11

MTD 710-0776A

Hex Screw
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1003

Screw Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 10

0

13

MTD 710-1250

Bolt, Curved Carriage

$4.99

$

In Stock, Qty 5

0

14

MTD 710-3015

Hex Cap Screw

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-3180

Hex Screw

$5.49

$

In Stock, Qty 15

0

16

MTD 711-0653

Pin, Clevis

$3.99

$

Usually ships in 3-6 days

0

17

MTD 711-0677

Ferrule, Engagement
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

18

MTD 712-0116

Hex Lock Nut

$4.99

$

In Stock, Qty 6

0

19

MTD 712-0158

Nut, Hex Lock
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

20

MTD 712-0267

Nut, Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0415

Nut, Self Threading

$5.49

$

In Stock, only 3 left!

0

22

MTD 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-3027

Nut, Lock, Hex, Flanged
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

24

MTD 714-0104

Pin, Cotter

$4.49

$

In Stock, Qty 20+

0

25

MTD 714-0507

Pin, Cotter

$4.49

$

In Stock, only 2 left!

0

26

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

27

MTD 720-0201A

Knob, Chute Crank

$10.99

$

In Stock, only 4 left!

0

28

MTD 720-0232

Knob, Shift
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

29

MTD 725-1300

Headlight
(Superseded to 925-1300)

$

$

Not available

30

MTD 726-0100

Cap, Push

$4.49

$

In Stock, only 3 left!

0

31

MTD 731-0851A

Chute, Flange Keeper

$4.49

$

In Stock, Qty 20+

0

32

MTD 731-1300A

Lower Chute, 5" Dia. Plastic
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

33

MTD 731-1313

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

34

MTD 731-1317

Bezel Headlight

$

$

Not available

35

MTD 731-1320

Chute, Upper 5.0 Dia. Remote
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

36

MTD 731-1576

Handle w/Tilt

$

$

Not available

MTD 731-1580

Panel Handle w/Titl and Light

Note: For model (315E748F099)

$

$

Not available

37

MTD 732-0145

Spring

$4.49

$

Usually ships in 3-6 days

0

38

MTD 732-0193

Spring

$4.99

$

In Stock, Qty 6

0

39

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

40

MTD 732-0746

Spring

$4.49

$

In Stock, Qty 13

0

41

MTD 735-0199A

Bumper

$7.99

$

In Stock, only 4 left!

0

42

MTD 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

MTD 736-0140

Flat Washer

$7.49

$

In Stock, Qty 7

0

45

MTD 736-0231

Washer

$4.99

$

In Stock, Qty 11

0

46

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

47

MTD 736-0264

Washer, Flat

$6.99

$

In Stock, only 1 left!

0

48

MTD 736-0271

Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

49

MTD 736-0506

Washer
(Superseded to 736-0506A)

$

$

Not available

50

MTD 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

51

Lubricant

$

$

Not available

52

MTD 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

53

MTD 746-0896

Cable, Chute Deflector
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

54

MTD 746-0901

Cable, Chute Deflector w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

55

MTD 747-0798

Rod, Shift
(Superseded to 747-0798A)

$38.99

$

Usually ships in 3-6 days

0

56

MTD 747-0877

Rod, Cam

$22.99

$

Usually ships in 3-6 days

0

57

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

58

MTD 748-0363

Pawl Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

59

MTD 749-0908A

Handle R.H.
(Superseded to 749-0908A-0637)

Variations

MTD 749-0908A-0637

Right Handle: Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 749-0909

Handle L.H.
(Superseded to 749-0909-0637)

Variations

MTD 749-0909-0637

HANDLE-LH-C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 784-0297

Shift Handle

$

$

Not available

62

MTD 784-5594

Brkt., Cable

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

63

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

64

MTD 784-5604

Handle Chute Tilt
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

65

MTD 784-5678

Brkt., Chute Crank Reinforce

Variations

MTD 784-5678-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 784-5679

Brkt., Handle Support L.H.
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

67

MTD 784-5680

Brkt., Handle Support R.H.
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

68

MTD 784-5681

Brkt., Handle Support L.H.

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

69

MTD 784-5682

Brkt., Handle Support R.H.
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0
