247.884331 (31AS6AED799) - Craftsman Snow Thrower (2017) Handle Panel Parts Diagram

Snow Thrower

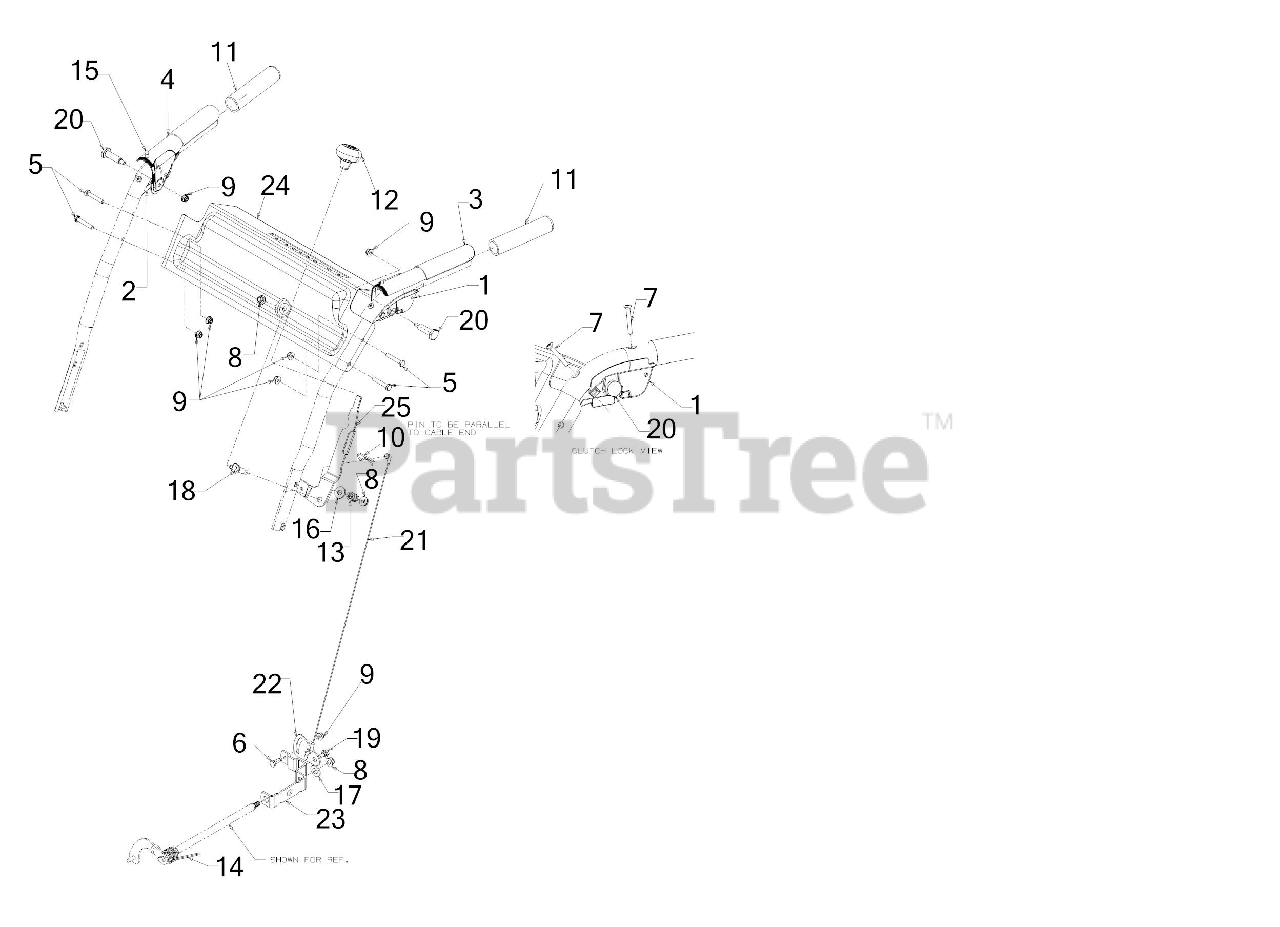

Handle Panel Parts Diagram

  • Title

1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 7

0

1

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

Usually ships in 3-6 days

0

2

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

3

MTD 684-04105C

HANDLE ASSEMBLY (LH)
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

4

MTD 684-04106C

HANDLE ASSEMBLY (RH)
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

5

MTD 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.49

$

In Stock, Qty 10

0

6

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

MTD 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

11

MTD 720-0274

GRIP

$11.99

$

In Stock, Qty 8

0

12

MTD 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

13

MTD 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

14

MTD 732-04311A

TORSION SPRING

$10.99

$

In Stock, only 3 left!

0

15

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

16

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

17

MTD 936-3015

FLAT WASHER

$4.49

$

In Stock, Qty 19

0

18

MTD 738-04118

SHOULDER BOLT

$5.49

$

Usually ships in 3-6 days

0

19

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 5

0

20

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

MTD 946-04397A

SPEED SELECTOR CABLE (STEEL)

$20.99

$

In Stock, Qty 8

0

22

MTD 790-00217A-0637

PIVOT BRACKET
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0

23

MTD 790-00218A-0637

SHIFT SPEED BRACKET
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0

24

MTD 790-00219A

HANDLE PANEL-STEEL W/O CUTOUT

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00219A-0637

PANEL-STEEL HNDL - POWDER BLACK (0637)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-0638

PANEL-STEEL HNDL - MTD/TROY-BILT RED (0638)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-0691

PANEL-STEEL HNDL - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-0709

PANEL-STEEL HNDL - MASTERCRAFT GREEN (0709)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-4043

PANEL-STEEL HNDL - CRAFTSMAN METALLIC GRAY (4043)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-4044

PANEL-STEEL HNDL - CRAFTSMAN RED (4044)

$72.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

25

MTD 790-00313A

SPEED SHIFT LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00313A-0637

LVR-SPEED SHIFT - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0
