247.883971 (31BH95SI799) - Craftsman Snow Thrower (2014) Auger & Housing Parts Diagram

Snow Thrower

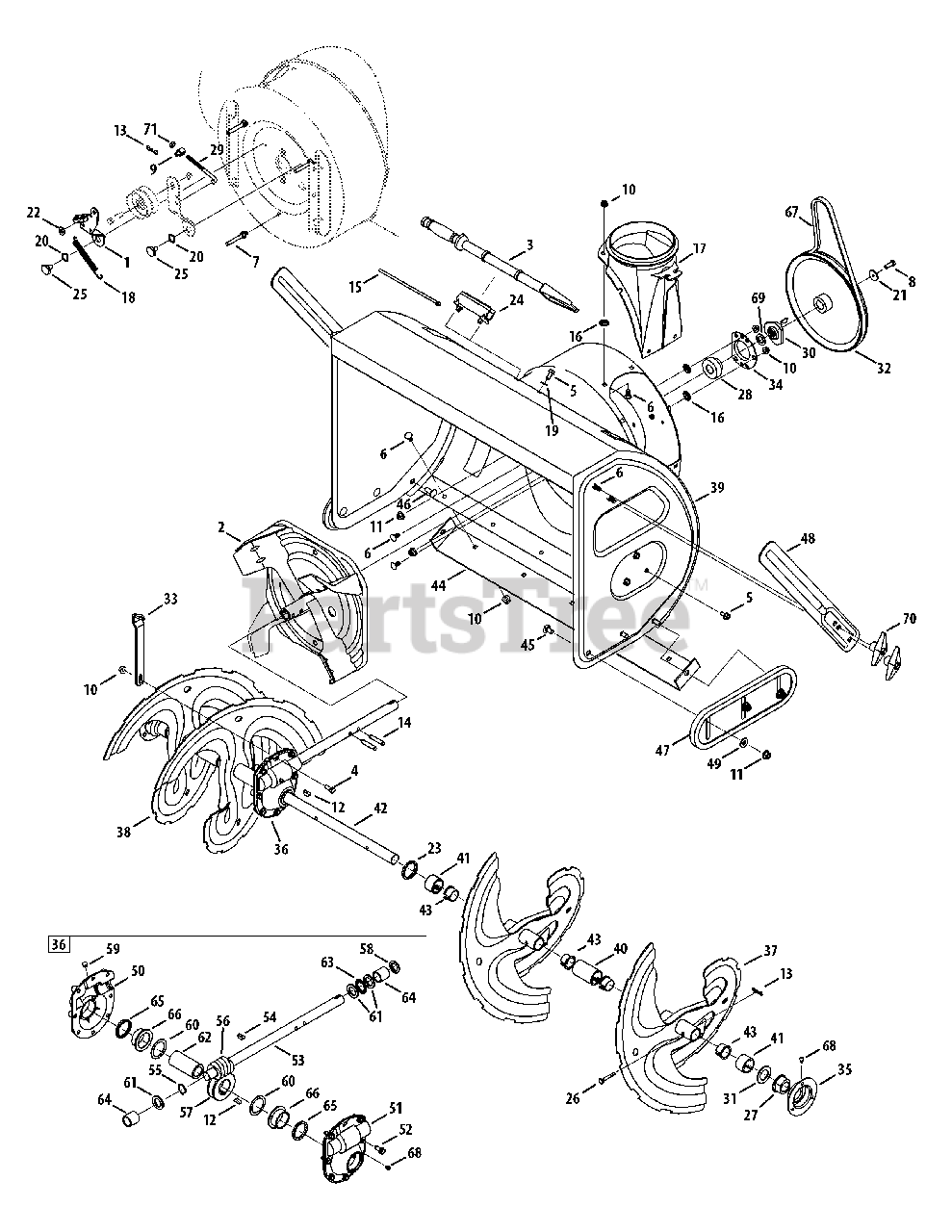

Auger & Housing Parts Diagram

  • Title

1

MTD 918-0281A

Bracket Assy, Auger Brake

$64.99

$

In Stock, only 2 left!

0

2

MTD 684-0090B-0637

Impellar, 16"

$

$

Not available

3

MTD 931-2643

Tool, Cleanout

$19.99

$

In Stock, Qty 11

0

4

MTD 710-0376

Scr,Hex Cap, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0451

Screw, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-04606A

Screw, 5/16-18 x .4300

$7.49

$

In Stock, only 1 left!

0

8

MTD 710-1245B

Screw, 5/16-24 x .875

$8.49

$

In Stock, only 4 left!

0

9

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

10

MTD 712-04063

Nut, Flnge Lk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

Nut, Flg Lk, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 914-0135

Key, Woodruff,1/4 x 3/4
(Superseded to 714-0135)

$

$

Not available

13

MTD 714-04040

Pin, Bowtie Cotter

$1.49

$

In Stock, Qty 20+

0

14

MTD 915-0118

Pin, Spirol, 5/16 x 1.75
(Superseded to 715-0118)

$

$

Not available

15

MTD 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

16

MTD 926-04012

Nut, Push
(Superseded to 726-04012)

$

$

Not available

17

MTD 731-1696B

Adapter, Chute, 6"

$91.99

$

In Stock, Qty 11

0

18

MTD 732-0858

Spring, Extension

$24.99

$

In Stock, only 4 left!

0

19

MTD 936-0159

Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

20

MTD 736-0174

Washer, .625 x .885 x .015

$6.99

$

In Stock, Qty 9

0

21

MTD 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

22

MTD 936-3008

Washer, .344 x .75 x .12

$6.99

$

Usually ships in 3-6 days

0

23

MTD 736-3046A

Washer, 1.01 x 1.86 x .06

$8.99

$

Usually ships in 3-6 days

0

24

MTD 731-2635

Clip, Mounting
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 17

0

25

MTD 938-0281

Screw, Shoulder, .625 x .17
(Superseded to 738-0281)

$

$

Not available

26

MTD 738-04155

Pin, Shear, .25 x 1.75

$1.99

$

In Stock, Qty 20+

0

27

MTD 941-0170

Bearing, Flange w/Flats

$19.99

$

In Stock, Qty 6

0

28

MTD 941-04024

Bearing, Self Aligning

$64.99

$

Usually ships in 3-6 days

0

29

MTD 747-0980A

Rod, Auger Idler

$47.99

$

Usually ships in 3-6 days

0

30

MTD 748-04067A

Pulley, Adapter, .75 Dia.

$26.99

$

Usually ships in 3-6 days

0

31

MTD 950-04020

Spacer, 1.004 x 1.375 x .25

$12.99

$

In Stock, only 1 left!

0

32

MTD 756-04244A

Pulley, Auger Drive, 10.0

$60.99

$

Usually ships in 3-6 days

0

33

MTD 790-00264A-0637

Bracket, Gear Box Support

$19.99

$

Usually ships in 3-6 days

0

34

MTD 05244B

Housing, Bearing

$23.99

$

Usually ships in 3-6 days

0

35

MTD 784-0315A-0637

Housing, Bearing

$

$

Not available

36

MTD 918-04514

Gear Box Assembly, Auger

$543.99

$

Usually ships in 3-6 days

0

37

MTD 684-04151-4044

Spiral Assy, LH

$231.99

$

Usually ships in 3-6 days

0

38

MTD 684-04152-4044

Spiral Assy, RH
(Superseded to 684-04152-0637)

$261.99

$

Usually ships in 3-6 days

0

39

MTD 684-04214-0691

Housing, Auger - 33"

$818.99

$

Usually ships in 3-6 days

0

40

MTD 731-05162

Spacer, 1.0 x 1.5 x 2

$7.49

$

Usually ships in 3-6 days

0

41

MTD 731-05163

Spacer, 1.0 x 1.5 x 1

$7.49

$

In Stock, Qty 20+

0

42

MTD 938-04158

Axle, Spiral, 33"

$186.99

$

Usually ships in 3-6 days

0

43

MTD 741-0494

Bushing, Flange, 1.051 x 1.16

$3.99

$

In Stock, Qty 20+

0

44

MTD 784-5714B-0691

Shave Plate
(Superseded to 784-5714B-0637)

$55.99

$

In Stock, only 3 left!

0

45

MTD 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

46

MTD 710-3034

Bolt, Carriage, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

47

MTD 731-06007

Shoe, Skid

$45.99

$

Usually ships in 3-6 days

0

48

MTD 790-00181-0691

Drift Cutter

$43.99

$

Usually ships in 3-6 days

0

49

MTD 736-0262

Washer, Flat, .385 x .870

$3.99

$

In Stock, Qty 20+

0

50

MTD 918-0246

Hsg Assy Auger RH (Inc. 65 & 66)

$

$

Not available

51

MTD 918-0435

Hsg Assy Auger LH (Inc. 65 & 66)

$109.99

$

Usually ships in 3-6 days

0

52

MTD 710-1260A

Screw, LD, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

53

MTD 711-04714

Shf, Drive, Auger

$66.99

$

Usually ships in 3-6 days

0

54

MTD 914-0126

Key, Hi Pro, 3/16 x 3/4
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

55

MTD 716-0111

Ext, Ret, Ring

$6.99

$

In Stock, only 4 left!

0

56

MTD 917-0299

Gear, Worm, Dbl Thread

$124.99

$

In Stock, only 1 left!

0

57

MTD 917-1425

Gear, Worm, LH

$177.99

$

In Stock, only 1 left!

0

58

MTD 921-0145

Seal, Oil

$9.99

$

Usually ships in 3-6 days

0

59

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

60

MTD 936-0266

Washer, Flat, 1.52 ID x 2.0 OD
(Superseded to 736-0266)

$

$

Not available

61

MTD 936-0291

Washer, Flat, .88 ID x .38 OD
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

62

MTD 738-0275

Shf, Gear, Worm

$112.99

$

Usually ships in 3-6 days

0

63

MTD 741-0184

Brg, Thrust

$16.99

$

Usually ships in 3-6 days

0

64

MTD 941-0217

Sleeve

$17.99

$

In Stock, Qty 7

0

65

MTD 921-0146

Oil Seal

$12.99

$

Usually ships in 3-6 days

0

66

MTD 741-0670

Flange Bearing

$13.99

$

Usually ships in 3-6 days

0

67

MTD 954-04194A

V Belt,4L x 44.60 Lg.

$22.99

$

In Stock, Qty 9

0

68

MTD 937-3000

Lube Fitting, 3/16 #70

$4.99

$

In Stock, Qty 20+

0

69

MTD 736-0188

Washer, Flat, .78 x 1.49 x .08

$4.49

$

In Stock, Qty 20+

0

70

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

71

MTD 712-3007

Jam Nut, 5/16-18

$6.99

$

In Stock, only 2 left!

0
