247.883961 (31BH55TH799) - Craftsman Snow Thrower (2014) Handle & Panel Assembly Parts Diagram

Snow Thrower

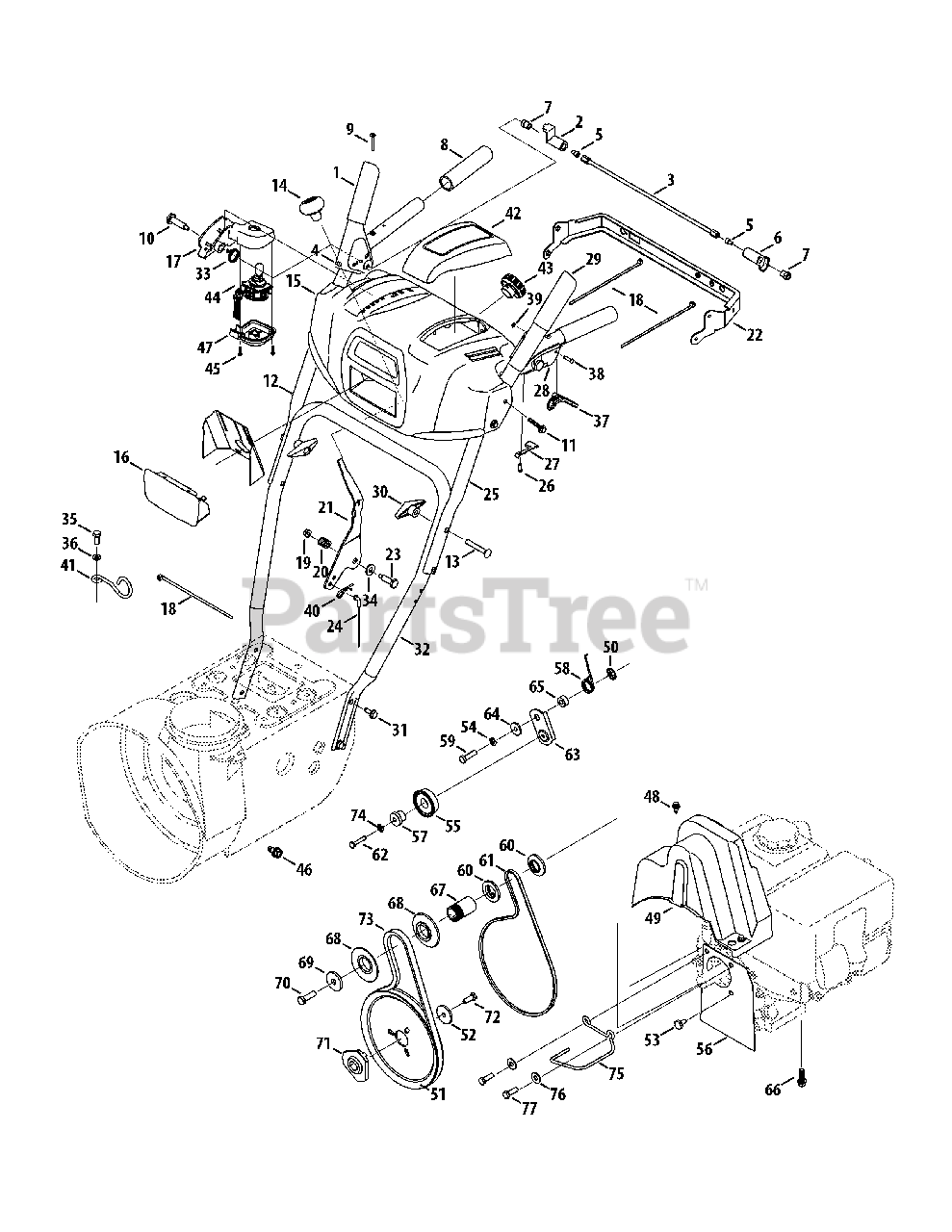

Handle & Panel Assembly Parts Diagram

  • Title

1

MTD 684-04112C

Handle Engagement Ass’y RH
(Superseded to 684-04112D)

$21.99

$

In Stock, only 1 left!

0

2

MTD 731-04894D

Lock Plate

$5.49

$

In Stock, Qty 11

0

3

MTD 684-04250

Pivot Rod

$12.99

$

In Stock, only 4 left!

0

4

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

5

MTD 710-3069

Screw, 1/4-20 x .500

$4.99

$

In Stock, Qty 11

0

6

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

8

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 11

0

9

MTD 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

10

MTD 738-04348

Shoulder Screw, 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

12

MTD 749-04190A-0691

Upper Handle RH
(Superseded to 749-04190A-0637)

$45.99

$

Usually ships in 3-6 days

0

13

MTD 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

15

MTD 931-04187A

Handle Panel

$71.99

$

Usually ships in 3-6 days

0

16

MTD 731-05324

Lens

$14.99

$

Usually ships in 3-6 days

0

17

MTD 931-04653

Handle Clutch Lock Assembly - RH

$12.99

$

In Stock, only 1 left!

0

18

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

21

MTD 790-00311C-0637

Shift Lever

$27.99

$

In Stock, only 4 left!

0

22

MTD 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, Qty 5

0

23

MTD 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

24

MTD 946-04396A

Speed Selector Cable

$20.99

$

In Stock, Qty 20+

0

25

MTD 749-04191A-0691

Upper Handle LH

$39.99

$

Usually ships in 3-6 days

0

26

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

27

MTD 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

28

MTD 631-04133A

Handle Clutch Lock Assembly - LH

$15.99

$

In Stock, Qty 8

0

29

MTD 684-04111B

Handle Engagement Assembly LH
(Superseded to 684-04111D)

$22.99

$

Usually ships in 3-6 days

0

30

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

31

MTD 710-04484

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

32

MTD 749-04138B-0691

Lower Handle
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

33

MTD 732-04238B

Torsion Spring

$5.49

$

In Stock, Qty 11

0

34

MTD 936-0267

Flat Washer
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-04022

Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

36

MTD 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

37

MTD 731-06113

Steering Control

$4.99

$

In Stock, Qty 20+

0

38

MTD 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

39

MTD 716-04036

E-Ring

$6.49

$

In Stock, Qty 20+

0

40

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

41

MTD 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

42

MTD 731-08947

Handle Panel Cover

$16.99

$

Usually ships in 3-6 days

0

43

MTD 925-06095

LED Light Socket
(Superseded to 925-06095A)

$52.99

$

In Stock, only 1 left!

0

44

MTD 925-06248

Electric Chute Harness

$192.99

$

In Stock, only 1 left!

0

45

MTD 710-04329

Screw, .159 OD x .610

$4.99

$

In Stock, only 2 left!

0

46

MTD 710-0599

Screw (For ground wire)

$4.49

$

In Stock, Qty 20+

0

47

MTD 731-08876

Joystick Housing Cover

$4.49

$

Usually ships in 3-6 days

0

48

MTD 710-1652

AB Screw, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

49

MTD 731-06401

Belt Cover
(Superseded to 753-09065)

$27.99

$

In Stock, Qty 10

0

50

MTD 926-04012

Push-on Nut
(Superseded to 726-04012)

$

$

Not available

51

MTD 756-04109

Auger Pulley

$54.99

$

Usually ships in 3-6 days

0

52

MTD 736-0505

Flat Washer

$6.49

$

In Stock, Qty 11

0

53

MTD 738-04439

Shoulder Screw

$3.99

$

In Stock, Qty 6

0

54

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

55

MTD 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 13

0

56

MTD 790-00332-0637

Plt., Cvr.
(Superseded to 790-00332A)

$6.49

$

Usually ships in 3-6 days

0

57

MTD 750-04571

Spacer

$6.99

$

In Stock, only 3 left!

0

58

MTD 732-04308A

Torsion Spring
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

59

MTD 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

60

MTD 756-04252

Pulley Half

$6.49

$

In Stock, only 3 left!

0

61

MTD 954-04201A

Belt, Wheel Drive

$34.99

$

In Stock, Qty 20+

0

62

MTD 710-0809

TT Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

63

MTD 790-00208D

Drive Clutch Idler Bracket

$8.99

$

In Stock, Qty 12

0

64

MTD 748-04112B

Shoulder Spacer

$4.49

$

In Stock, Qty 11

0

65

MTD 750-04477A

Spacer

$5.49

$

In Stock, only 4 left!

0

66

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

67

MTD 750-04303

Spacer

$17.99

$

In Stock, Qty 5

0

68

MTD 756-04113

Pulley Half
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

69

MTD 736-3082A

Flat Washer

$9.99

$

In Stock, Qty 16

0

70

MTD 710-0191

Hex Bolt, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

71

MTD 748-04053A

Pulley Adapter

$22.99

$

In Stock, only 3 left!

0

72

MTD 710-1245B

Hex Bolt, 5/16-24 x 0.875

$8.49

$

In Stock, only 1 left!

0

73

MTD 954-04195A

V-Belt,.500 x 35.00 Lg

$34.99

$

In Stock, Qty 20+

0

74

MTD 936-0329

Lock Washer

$4.49

$

In Stock, Qty 11

0

75

MTD 747-06336

Belt Guide
(Superseded to 747-06336A)

$

$

Not available

76

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

77

MTD 710-0117A

Screw, 5/16-24 x 1.00

$5.49

$

Usually ships in 3-6 days

0
