247.883961 (31BH55TH799) - Craftsman Snow Thrower (2014) Chute Control Parts Diagram

Snow Thrower

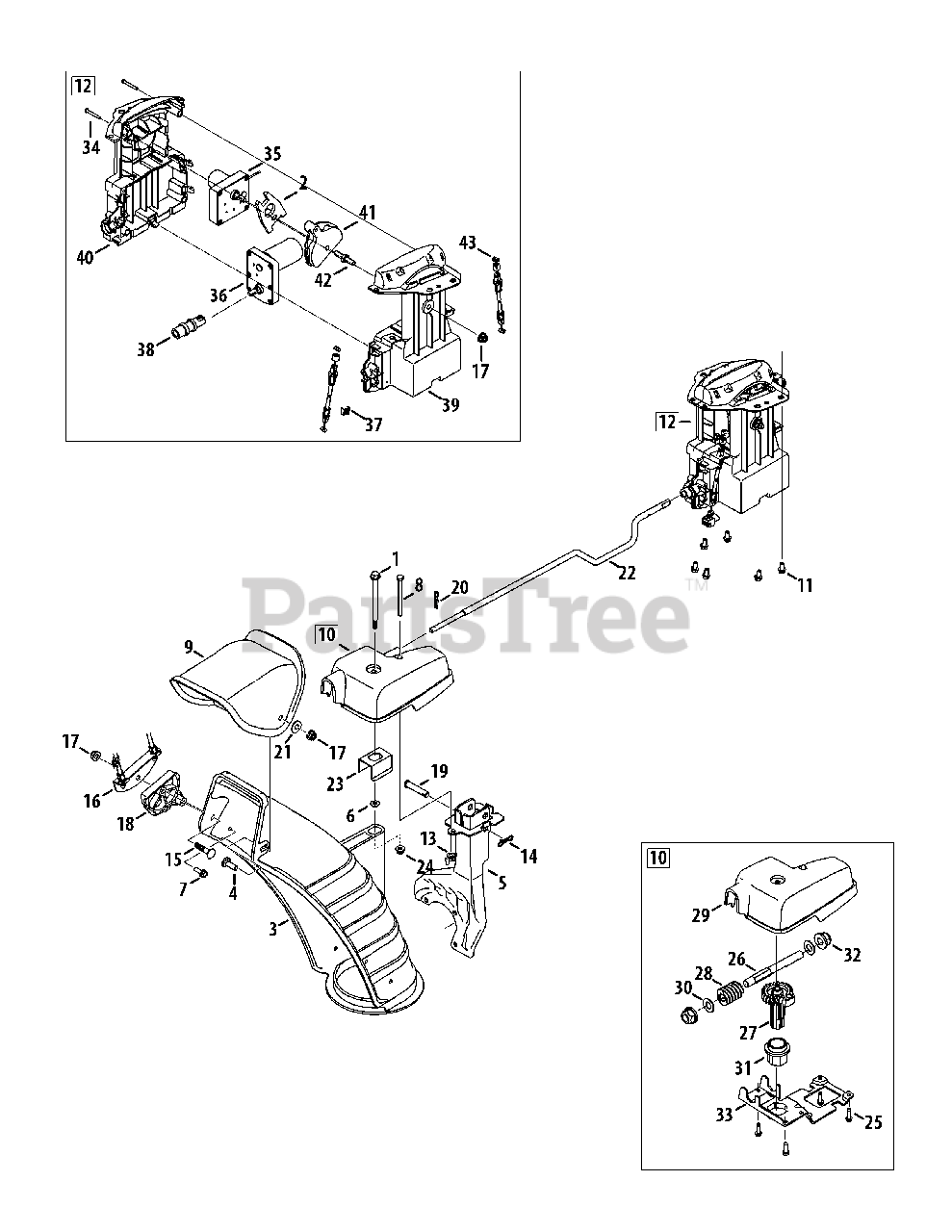

Chute Control Parts Diagram

  • Title

1

MTD 738-04367

Flange Shoulder Screw

$4.99

$

In Stock, only 1 left!

0

2

MTD 748-04297A

Adpt., Pitch, Chute

$11.99

$

Usually ships in 3-6 days

0

3

MTD 731-06440A

Lower Chute

$51.99

$

In Stock, Qty 19

0

4

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 15

0

5

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

6

MTD 736-04446

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

7

MTD 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

8

MTD 710-04370

Hex Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

9

MTD 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

10

MTD 918-04932B

Electric Chute Gearbox Assembly

$77.99

$

Usually ships in 3-6 days

0

11

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

12

MTD 984-05051

Electric Chute Control Assembly

$414.99

$

In Stock, only 1 left!

0

13

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

15

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

16

MTD 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

17

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 731-06451

Chute Tilt Cable Guide

$4.99

$

Usually ships in 3-6 days

0

19

MTD 711-04469A

Clevis Pin

$5.99

$

In Stock, only 4 left!

0

20

MTD 914-0101

Cotter Pin
(Superseded to 714-0101)

$

$

Not available

21

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

22

MTD 747-05721

Chute Rod

$28.99

$

Usually ships in 3-6 days

0

23

MTD 790-00503

Chute Bracket

$6.49

$

In Stock, only 1 left!

0

24

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

26

MTD 911-05752

Shaft, Worm Drive

$8.49

$

Usually ships in 3-6 days

0

27

MTD 917-04973A

Gear, Helical

$14.99

$

In Stock, only 1 left!

0

28

MTD 917-05019

Worm, 2-Start Nylon

$6.99

$

Usually ships in 3-6 days

0

29

MTD 731-07529A

Cover, Gear, Chute Control

$18.99

$

Usually ships in 3-6 days

0

30

MTD 936-0272

Wash., Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

31

MTD 741-04388A

Bearing, Flange, 1.00 ID

$7.49

$

Usually ships in 3-6 days

0

32

MTD 741-04453A

Bearing, Flange, .50 ID

$4.49

$

Usually ships in 3-6 days

0

33

MTD 790-00342C-0637

Brkt., Gear, Chute Rotation

$28.99

$

Usually ships in 3-6 days

0

34

MTD 710-04509

Scr., AB, #10-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0

35

MTD 724-04209

Motor, Pitch, Chute

$137.99

$

Usually ships in 3-6 days

0

36

MTD 724-04210

Motor, Rotate, Chute

$180.99

$

Usually ships in 3-6 days

0

37

MTD 731-07868

Clip, Cable

$3.49

$

In Stock, only 2 left!

0

38

MTD 731-08795

Coupler, Electric Chute

$4.49

$

In Stock, only 2 left!

0

39

MTD 731-08845A

Hsg., LH, 4-Way, Chute Control

$22.99

$

Usually ships in 3-6 days

0

40

MTD 731-08846

Hsg., RH, 4-Way, Chute Control

$22.99

$

Usually ships in 3-6 days

0

41

MTD 731-1313C

Gde., Cbl., Chute Tilt

$11.99

$

In Stock, Qty 20+

0

42

MTD 938-0849

Scr., Hex, 5/16-18 x .75

$10.99

$

Usually ships in 3-6 days

0

43

MTD 946-04528B

Cbl., Snow, 4-Way, Tall Chute

$41.99

$

Usually ships in 3-6 days

0

MTD 753-08018

Chute Service Kit (Incl. Ref.# 3 & 9)

Note: Intended for warranty coverage only. Contact a Sears authorized service provider for details.

$

$

Not available
