247.883940 (31AM59TG799) - Craftsman Snow Thrower (2015) Auger & Housing Parts Diagram

Snow Thrower

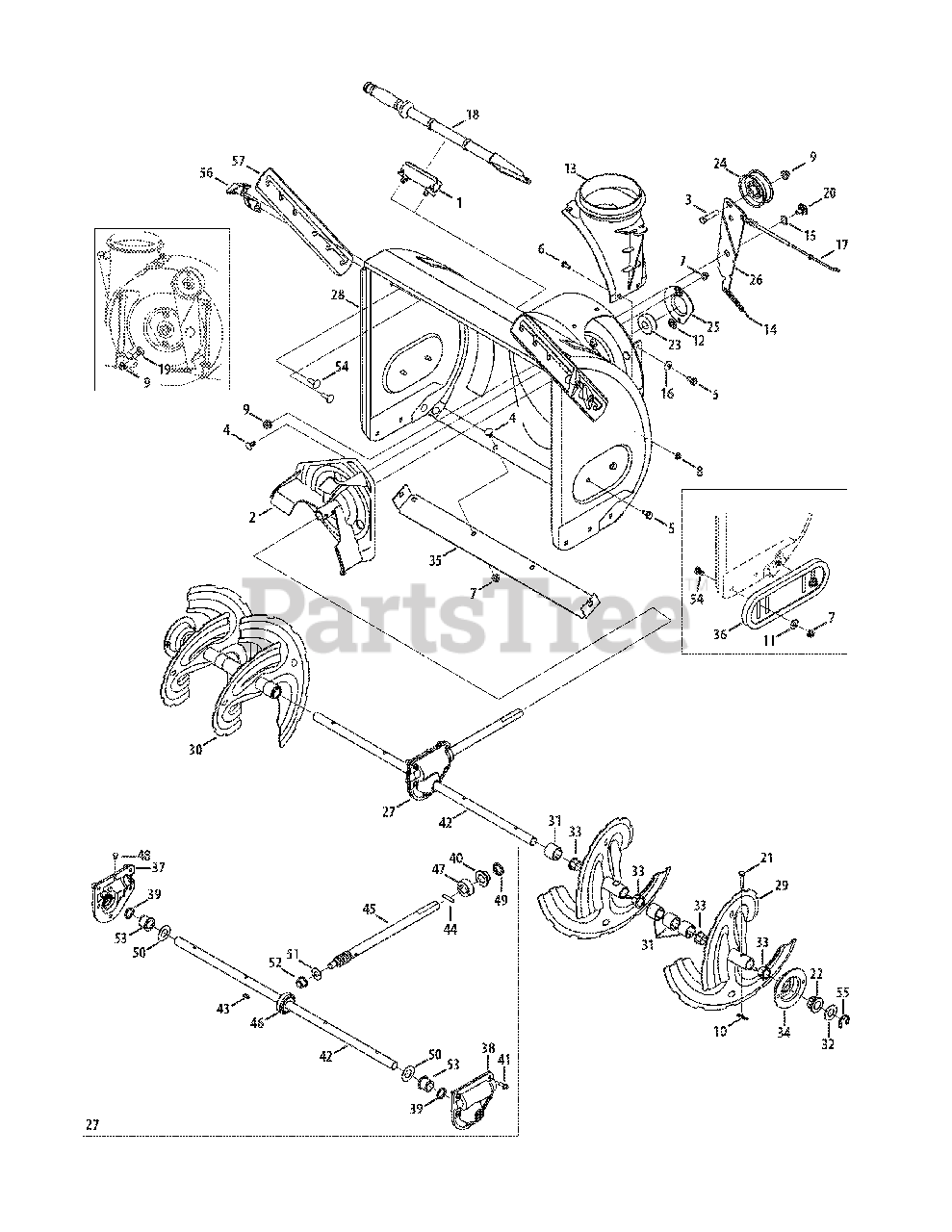

Auger & Housing Parts Diagram

  • Title

1

MTD 731-11421

Snow Removal Tool Mount

$11.99

$

In Stock, Qty 7

0

2

MTD 684-04057B-0637

Impeller Assembly, 12" Dia.
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 5

0

3

MTD 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-0451

Bolt, Carriage, 5/16-18, .750 Gr1

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0703

Screw, Carriage, 1/4-20, .750, Gr5

$4.49

$

In Stock, Qty 15

0

7

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-04040

Cotter Pin, Bow-tie

$1.49

$

In Stock, Qty 20+

0

11

MTD 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

12

MTD 926-04012

Nut, Push-on, .25 Dia
(Superseded to 726-04012)

$

$

Not available

13

MTD 731-07525

Chute, Adapter 5" Dia

$18.99

$

Usually ships in 3-6 days

0

14

MTD 732-04460

Spring, Extension, .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

15

MTD 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, only 2 left!

0

16

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

17

MTD 946-04230A

Clutch Cable, Auger, 47.23"
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

18

MTD 931-2643

Snow Removal Tool

$19.99

$

In Stock, only 1 left!

0

19

MTD 738-0143

Screw, Shoulder, .498 x .34, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 938-0281

Screw, Shoulder, .625 x .17, 3/8-16
(Superseded to 738-0281)

$

$

Not available

21

MTD 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

22

MTD 741-05041

Bearing, Hex Flange x .75 ID

$9.99

$

Usually ships in 3-6 days

0

23

MTD 941-0309

Bearing, Ball, .75 ID x 1.85 OD

$74.99

$

In Stock, only 2 left!

0

24

MTD 756-04224

Flat Pulley, Idler, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

25

MTD 790-00075A

Housing, Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

26

MTD 790-00080C-0637

Bracket, Auger Idler w/ Brake
(Superseded to 790-00080D)

$28.99

$

In Stock, only 4 left!

0

27

MTD 918-04173B

Gearbox Assembly, Auger, 28"

$331.99

$

In Stock, only 1 left!

0

28

MTD 684-04268-4044

Housing Assembly, Auger 28"
(Superseded to 684-04268A-0691)

$374.99

$

Usually ships in 3-6 days

0

29

MTD 684-04107A-0637

Spiral Assembly, LH

$89.99

$

In Stock, Qty 7

0

30

MTD 684-04108A-0637

Spiral Assembly, RH

$94.99

$

In Stock, Qty 14

0

31

MTD 731-04870

Spacer, 1.25 OD x .75 ID x 1.00

$4.99

$

In Stock, Qty 20+

0

32

MTD 736-0188

Washer, Flat, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

33

MTD 741-0493A

Bushing, Flange, .80 ID x .91 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

MTD 790-00534-0637

Housing, 1" Hex Bearing

$13.99

$

In Stock, only 2 left!

0

35

MTD 790-00118-4044

Shave Plate, 2.25 x 27.66
(Superseded to 790-00118-0637)

$37.99

$

In Stock, only 4 left!

0

36

MTD 731-05984A

Polymer Slide Shoe, Deluxe

$30.99

$

In Stock, only 2 left!

0

36

MTD 753-06205

Polymer Reversible Shoe Kit

Note: (Will replace 731-05984A, includes hardware & 2 shoes)

$45.99

$

Usually ships in 3-6 days

0

37

MTD 918-0123A

Housing, Auger, RH Reduced

$52.99

$

In Stock, Qty 10

0

38

MTD 918-0124A

Housing, Auger, LH Reduced

$52.99

$

In Stock, Qty 12

0

39

MTD 921-0338

Seal, Oil, .750 x 1.00 x .125

$7.49

$

In Stock, Qty 20+

0

40

MTD 741-0662

Bearing, Flange, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 20+

0

41

MTD 710-0642

Screw, Self-tapping, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

42

MTD 711-06145

Axle, Auger, 28"

$89.99

$

In Stock, only 2 left!

0

43

MTD 914-0161

Key, Hi-pro 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

44

MTD 715-04021

Pin, Dowel, .25 OD x 1.2

$4.49

$

In Stock, Qty 8

0

45

MTD 917-04126

Shaft, Worm .75 OD

$79.99

$

In Stock, only 4 left!

0

46

MTD 917-04861

Gear, Worm 20T

$43.99

$

In Stock, Qty 20+

0

47

MTD 718-04071

Collar, Thrust

$7.99

$

In Stock, Qty 10

0

48

MTD 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

49

MTD 721-0327

Seal, Oil, .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

50

MTD 936-0351

Washer, Flat, .760 ID x 1.5 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-3084

Washer, Flat, .51 x 1.12

$4.99

$

In Stock, Qty 20+

0

52

MTD 741-0663

Bearing, Flange, .75 x 1.0 x .925

$9.99

$

In Stock, Qty 20+

0

53

MTD 741-0661B

Bearing, Flange, .75 x 1.00 x .975

$10.99

$

In Stock, only 1 left!

0

54

MTD 710-0276

Screw, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

55

MTD 916-0231

E-Ring
(Superseded to 716-0231)

$

$

Not available

56

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

57

MTD 790-00181-0691

Drift Cutter

$43.99

$

Usually ships in 3-6 days

0
