247.883940 (31AM59TG799) - Craftsman Snow Thrower (2015) 375-QU Crankcase Parts Diagram

Snow Thrower

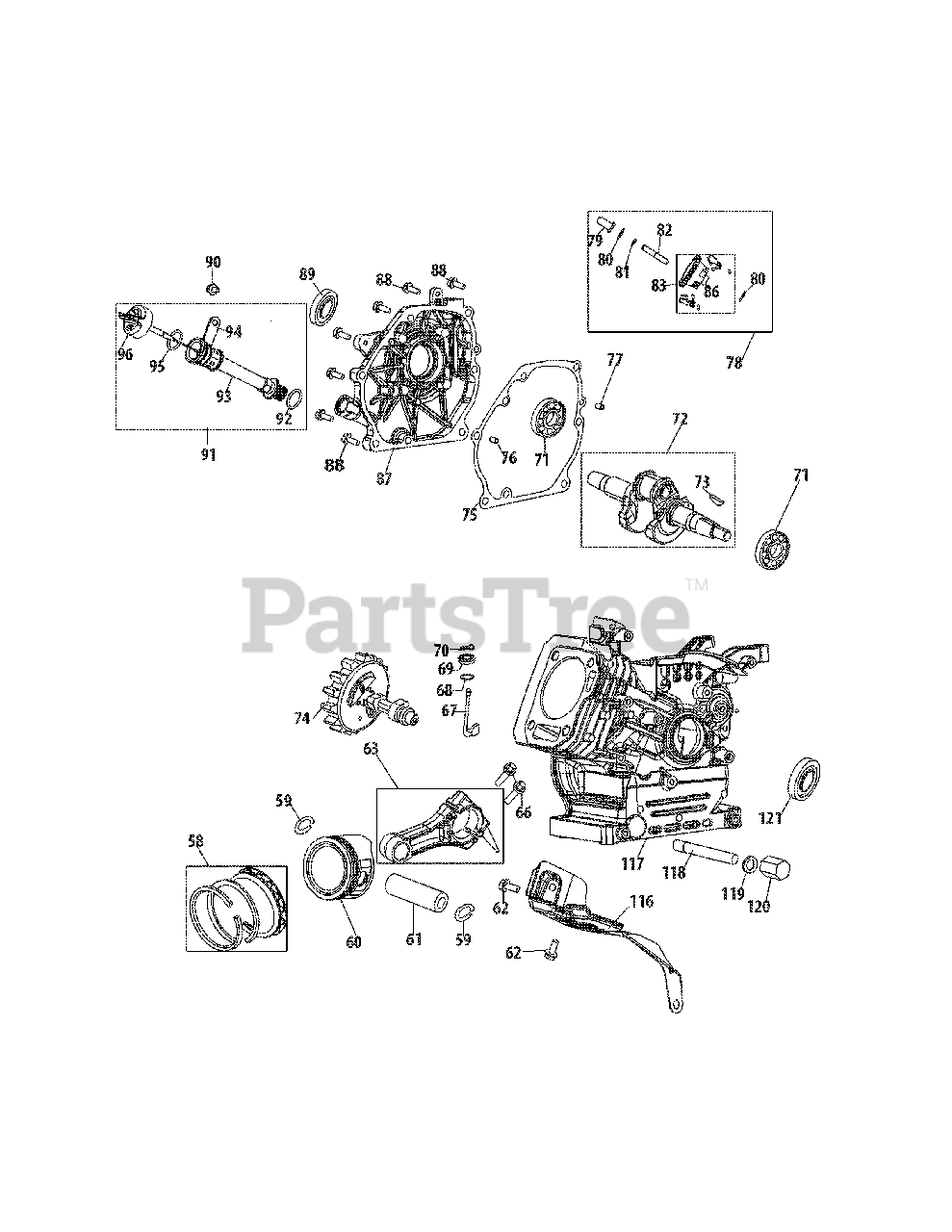

375-QU Crankcase Parts Diagram

  • Title

58

MTD 951-14471

Piston Ring Set

$24.99

$

In Stock, only 1 left!

0

59

MTD 951-11632

Circlip

$4.49

$

In Stock, only 1 left!

0

60

MTD 919-05074

Piston

$38.99

$

Usually ships in 3-6 days

0

61

MTD 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

62

MTD 710-04915

Bolt, M6×12

$4.49

$

In Stock, only 3 left!

0

63

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, only 1 left!

0

66

MTD 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

67

MTD 951-14053

Governor Gear Shaft

$15.99

$

Usually ships in 3-6 days

0

68

MTD 736-04461

O-Ring, 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

69

MTD 951-11902

Oil Seal, 6×11×4
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

70

MTD 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

71

MTD 951-11369

Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

72

MTD 951-05059

Crankshaft

$215.99

$

Usually ships in 3-6 days

0

73

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

74

MTD 651-05058

Camshaft
(Superseded to 951-05058)

$67.99

$

Usually ships in 3-6 days

0

75

MTD 951-11371

Gasket, Crankcase
(Superseded to 951-11371A)

$3.99

$

In Stock, only 4 left!

0

76

MTD 715-04096

Pin, 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

77

MTD 715-04092

Pin, 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

78

MTD 917-05007

Governor Gear

$13.99

$

Usually ships in 3-6 days

0

79

MTD 931-09595

Governor Cup

$5.99

$

Usually ships in 3-6 days

0

80

MTD 936-05038

Washer, 6.2×0.6×15

$4.99

$

In Stock, only 2 left!

0

81

MTD 916-05003

Retaining Ring

$5.99

$

In Stock, only 1 left!

0

82

MTD 911-06137

Governor Shaft

$6.99

$

Usually ships in 3-6 days

0

83

MTD 917-05007

Governor Gear

$13.99

$

Usually ships in 3-6 days

0

86

MTD 917-05152

Governor Gear

$11.99

$

Usually ships in 3-6 days

0

87

MTD 951-14875

Crankcase Cover

$84.99

$

Usually ships in 3-6 days

0

88

MTD 710-04932

Bolt, M8×32

$4.49

$

Usually ships in 3-6 days

0

89

MTD 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 13

0

90

MTD 910-06278

Bolt, M6×16

$4.49

$

Usually ships in 3-6 days

0

91

MTD 931-05255

Dipstick

$22.99

$

Usually ships in 3-6 days

0

92

MTD 951-11577

O-Ring, 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

93

MTD 951-14876

Dipstick Seat

$9.49

$

Usually ships in 3-6 days

0

94

MTD 951-14878

Clamp

$5.99

$

Usually ships in 3-6 days

0

95

MTD 921-04663

O-Ring, 21×2.77
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

96

MTD 951-14879

Dipstick

$9.49

$

Usually ships in 3-6 days

0

116

MTD 951-11113

Shroud

$9.49

$

Usually ships in 3-6 days

0

117

MTD 919-05075

Crankcase

$212.99

$

Usually ships in 3-6 days

0

118

MTD 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

119

MTD 736-04440

Washer, 10×1.5×16
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

120

MTD 710-04906

Earth Bolt

$6.99

$

In Stock, only 3 left!

0

121

MTD 951-11370

Oil Seal, 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, only 2 left!

0

MTD 952Z375-QU

Complete Engine
(Superseded to 952Z675-QU)

Note: (not shown)

$923.99

$

Usually ships in 3-6 days
