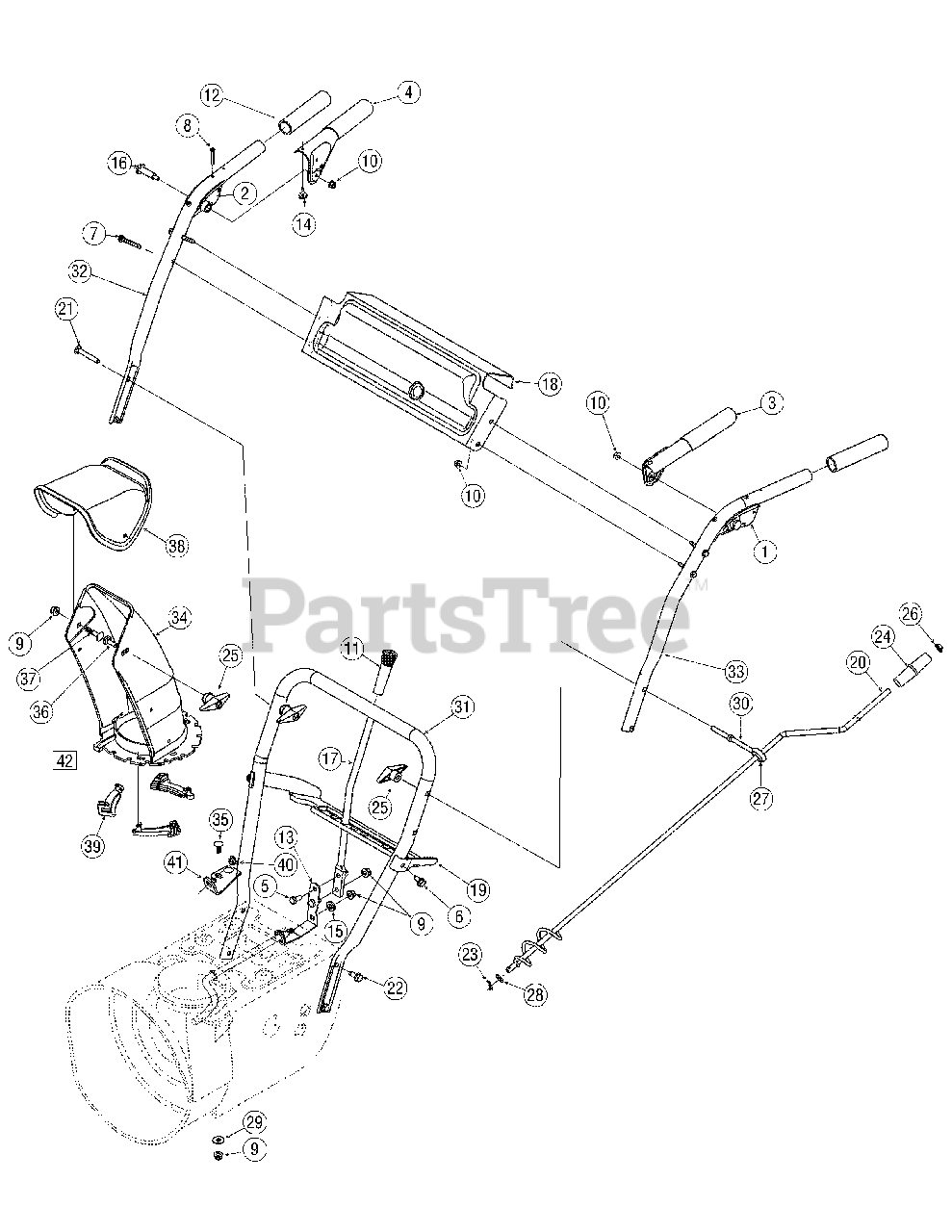

247.883550 (31AS6BCE799) - Craftsman Snow Thrower (2007) (Sears) Handlebar Assembly Parts Diagram

Snow Thrower

Handlebar Assembly Parts Diagram

  • Title

1

MTD 631-04133A

Handle Ass’y, Lock LH

$15.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

Handle Ass’y, Lock, RH

$15.99

$

In Stock, only 1 left!

0

3

MTD 684-04105B

Handle Ass’y, Engagement LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

4

MTD 684-04106B

Handle Ass’y, Engagement, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

5

MTD 710-0376

Screw, Self-tapping, 5/16-18, .625

$3.99

$

In Stock, only 4 left!

0

6

MTD 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0606

Screw, Self-tapping, 1/4-20, 1.50

$5.49

$

In Stock, Qty 9

0

8

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.99

$

In Stock, Qty 11

0

9

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

11

MTD 720-0223

Grip, 0.5 ID x 3.45

$14.99

$

In Stock, Qty 6

0

12

MTD 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, only 2 left!

0

13

MTD 732-04205

Spring Lever, Shift

$11.99

$

Usually ships in 3-6 days

0

14

MTD 735-0199A

Bumper, Rubber, .62 OD x .22

$7.99

$

In Stock, only 4 left!

0

15

MTD 736-3015

Washer, Flat, .469 x .875 x .105
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

16

MTD 738-04122

Screw, Shoulder, 1/4-20, .437
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

17

MTD 747-04243

Lever, Shift
(Superseded to 747-04243-0637)

Variations

MTD 747-04243-0637

Shift Lever - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

18

MTD 790-00100

Panel, Handle

Variations

Cub Cadet 790-00100-4044

PANEL-HANDLE W/O S - CRAFTSMAN RED

$53.99

$

In Stock, only 1 left!

0

MTD 790-00100-4044

PANEL-HANDLE W/O S - CRAFTSMAN RED

$53.99

$

In Stock, only 1 left!

0

MTD 790-00100-0638

PANEL-HANDLE W/O S - MTD/TROY-BILT RED

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00100-0665

PANEL-HANDLE W/O S - YARDMAN GREEN

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00100-0674

PANEL-HANDLE W/O S - YARDMAN YELLOW

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00100-0684

PANEL-HANDLE W/O S - ZINC YELLOW

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00100-0691

PANEL-HANDLE W/O S - BLACK JACK

$64.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

19

MTD 790-00187A

Panel, Speed Select (5 FW, 2 RV)

Variations

MTD 790-00187A-0637

PANEL-SELECT - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

MTD 790-00187A-0638

Select Panel, 5-Speed - MTD/TROY-BILT RED (0638)

$33.99

$

Usually ships in 3-6 days

0

MTD 790-00187A-0691

PANEL SELECT - BLACK JACK (0691)

$30.99

$

Usually ships in 3-6 days

0

MTD 790-00187A-0721

PANEL-SELECT - SEARS RED (0721)

$35.99

$

Usually ships in 3-6 days

0

MTD 790-00187A-4044

PANEL-SELECT - CRAFTSMAN RED (4044)

$35.99

$

Usually ships in 3-6 days

0

MTD 790-00187A-0665

PANEL-SELECT - YARDMAN GREEN (0665)

$33.99

$

Usually ships in 3-6 days

0

MTD 790-00187A-0684

PANEL-SELECT - ZINC YELLOW (0684)

$

$

Not available

MTD 790-00187A-0729

PANEL-SELECT - STORM GRAY (0729)

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0

20

MTD 684-04104

Crank Assembly, Chute
(Superseded to 684-04104-0637)

Variations

MTD 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

In Stock, only 1 left!

0

$62.99

$

In Stock, only 1 left!

0

21

MTD 710-0449

Screw, Carriage, 5/16-18, 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

22

MTD 710-04484

Screw, 5/16-18, 2.25, Gr5

$3.99

$

In Stock, Qty 20+

0

23

MTD 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

24

MTD 720-0201A

Crank Knob, 1.0 Dia. x 3.2, Black

$10.99

$

In Stock, only 4 left!

0

25

MTD 720-0284

Knob Assembly, Black, 5/16-18

$6.99

$

In Stock, Qty 20+

0

26

MTD 726-0100

Cap, Push, 3/8 Rod

$4.49

$

In Stock, only 3 left!

0

27

MTD 735-0234

Grommet, .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

28

MTD 736-0185

Washer, Flat, .375 x .738 x .063

$3.99

$

In Stock, only 2 left!

0

29

MTD 736-0159

Washer, Flat, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

30

MTD 747-04263

Eye Bolt, Chute Crank

$9.49

$

In Stock, only 2 left!

0

31

MTD 749-04138A

Handle, Lower

Variations

MTD 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

32

MTD 749-04141A

Handle, Upper, RH
(Superseded to 749-04190A)

Variations

MTD 749-04141A-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141A-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141A-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

33

MTD 749-04142A

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

MTD 749-04142A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

34

MTD 731-04912B

Chute, Lower, 5.0 Diameter

$38.99

$

In Stock, only 3 left!

0

35

MTD 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 12

0

36

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 15

0

37

MTD 710-0451

Bolt, Carriage, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

38

MTD 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

39

MTD 731-04869

Chute, Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0475

Bushing, Plastic, .380
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

41

MTD 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0

42

MTD 631-04131B

Chute Assembly (Includes Ref. # 39)

$37.99

$

Usually ships in 3-6 days
