247.882902 (312-174-099) - Craftsman Snow Thrower (1992) (Sears) Pulley And Shaft Assembly Parts Diagram

Snow Thrower

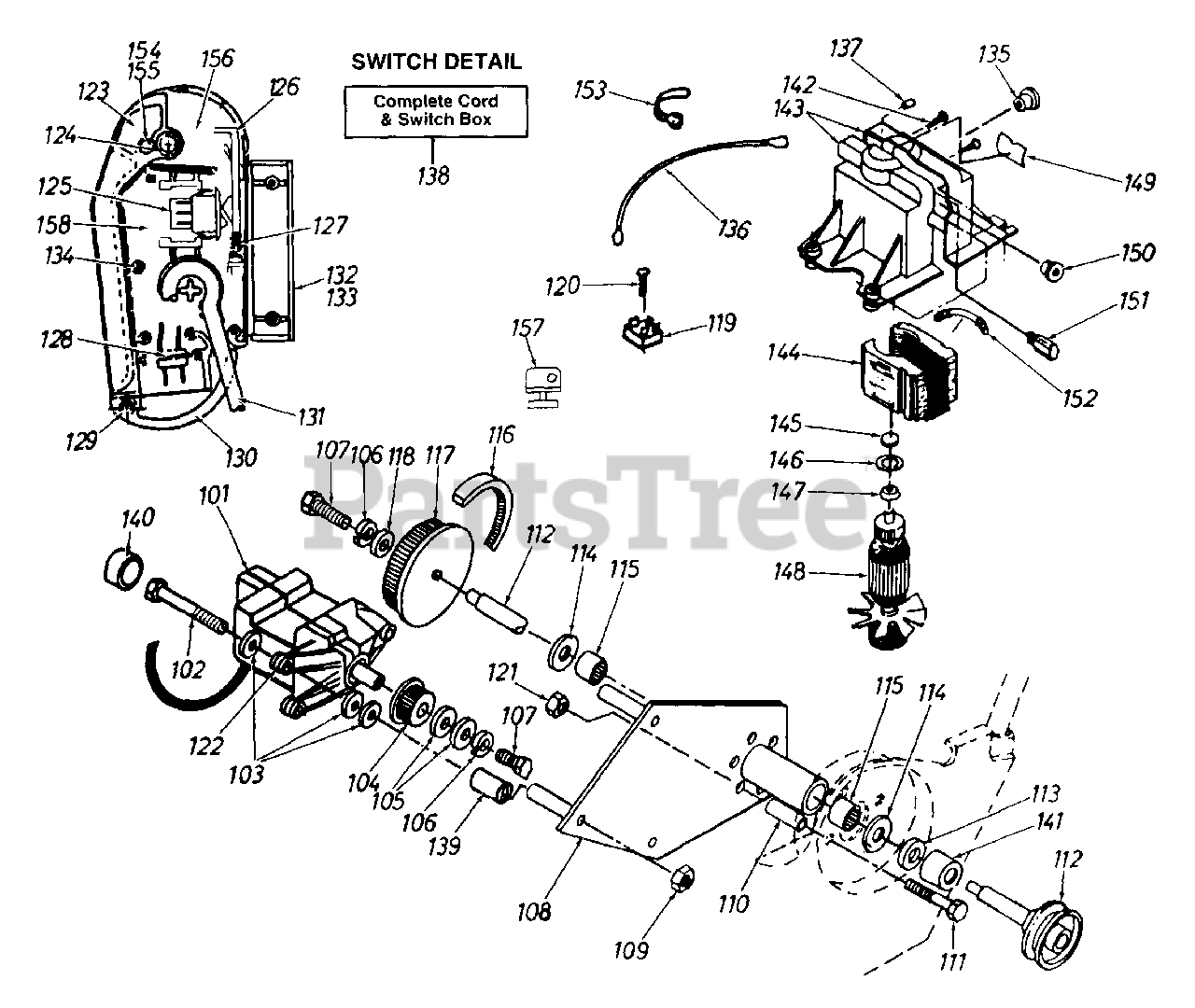

Pulley And Shaft Assembly Parts Diagram

  • Title
?15

MTD 741-0475

Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

?19

MTD 647-0001

Chute Crank - Lower

$

$

Not available

101

MTD 831-60051

Motor and Switch Box Ass'y.

Note: (Includes Nos. 104, 105, 106, 107, 122)

$

$

Currently unavailable

102

MTD 710-1123

Hex Bolt 1/4-20 x 3-1/4" Lg. Grade 5 (Special)

$

$

Not available

103

MTD 736-3020

Washer 1/4"

$6.99

$

In Stock, Qty 9

0

104

MTD 756-0548

Pulley - Motor (227)

Note: (Part of Armature & Bearing Ass'y. #148)

$

$

Currently unavailable

105

MTD 736-0483

Washer (Special)
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

106

MTD STD551125

L-Wash. 1/4" I.D.

$

$

Currently unavailable

107

MTD STD522507

Hex Bolt 1/4-20 x 3/4" Grade 5 (Special)

$

$

Currently unavailable

108

MTD 684-0005

Plate Assembly

Note: (Includes Bearings #115)

$

$

Currently unavailable

109

MTD STD541425

Lock Nut 1/4-20 Thd.

$

$

Currently unavailable

110

MTD 750-0589

Spacer
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

111

MTD STD523115

Hex Bolt 5/16-18 x 1-1/2" Lg.

$

$

Currently unavailable

112

UNKNOWN

$

$

Not available

113

MTD 736-0162

Fl-Wash. .635" I.D.

$4.49

$

In Stock, Qty 14

0

114

MTD 736-0489

Washer - Thrust

$

$

Currently unavailable

115

MTD 741-0586

Bearing - Needle

$

$

Not available

116

MTD 754-0426

Belt - Cog
(Superseded to 954-0426)

$

$

Not available

117

MTD 756-0598

Pulley - Shaft (71T)

$

$

Not available

118

MTD 736-0488

Washer - Special
(Superseded to 736-0498)

$4.49

$

Usually ships in 3-6 days

0

119

MTD 725-1631

Rectifier

$

$

Not available

120

MTD 710-0430

Tap Scr. #10-24 x 3/4"

$

$

Currently unavailable

121

MTD STD541431

Lock Nut 5/16-18 Thd.

$

$

Currently unavailable

122

MTD 721-0289

Insulator - Motor Housing

$

$

Currently unavailable

123

MTD 731-1210

Handle Dash Switch Actuator

$

$

Not available

124

MTD 732-0679

Spring - Switch Handle

$

$

Not available

125

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

126

MTD 731-1198

Latch

$

$

Not available

127

MTD 732-0681

Spring - Latch

$

$

Not available

128

MTD 729-0304

Plug - 2 Prong
(Superseded to 929-0304)

Note: (Part of Cord Ass'y. #131)

$

$

Not available

129

MTD 732-0680

Spring - Cord Retainer
(Superseded to 932-0680)

$

$

Not available

130

MTD 731-1211

Cord Retainer

$

$

Not available

131

MTD 729-0011

Cord Assembly

Note: (Includes Plug #128 and all Terminals)

$

$

Currently unavailable

132

MTD 725-1628

Housing - Upper Half

$

$

Not available

133

MTD 731-1209

Housing - Lower Half

$

$

Not available

134

MTD 710-1147

Screw #6 x 1/2" Drive

Note: (Not Shown)

$

$

Not available

135

MTD 741-0588

Bushing - Split

$

$

Currently unavailable

136

MTD 629-0015

Jumper Wire Assembly (Blue)

$

$

Currently unavailable

137

MTD 735-0242

Pad - Pressure

$

$

Currently unavailable

138

MTD 625-0002

Cord & Switch Box Ass'y. Complete

$

$

Currently unavailable

139

MTD 750-0824

Spacer Insulator

$

$

Currently unavailable

140

MTD 720-0264

End Cap Insulator

$

$

Not available

141

MTD 748-0201

Spacer
(Superseded to 948-0201)

$

$

Not available

142

MTD 710-1146

Screw - Motor Housing (Special)

$

$

Not available

143

MTD 724-0197

Kit - Motor Housing (Both Halves)

$

$

Currently unavailable

144

MTD 624-0020

Field Assembly

$

$

Currently unavailable

145

MTD 721-0265

Oil Wick

$

$

Not available

146

MTD 721-0266

"O"-Ring

$

$

Not available

147

MTD 741-0572

Bearing - Spherical

$

$

Currently unavailable

148

MTD 624-0019

Armature & Pulley Ass'y.

Note: (Includes Nos. 104, 105, 106, 107)

$

$

Currently unavailable

149

MTD 724-0159

Spring - Field

$

$

Not available

150

MTD 731-1207

Strain Relief

$

$

Not available

151

MTD 818-60004

Brush Assembly

$

$

Currently unavailable

152

MTD 726-0302

Wire Clip

$

$

Not available

153

MTD 726-0303

Plastic Tie

$

$

Not available

154

MTD 715-0214

Pin - Handle Lock

$

$

Not available

155

MTD 732-0670

Spring - Handle Lock Pin

$

$

Not available

156

MTD 784-0296

Plate - Key

$

$

Not available

157

MTD 725-1627

Key - Switch Box

$

$

Not available

158

MTD 818-60002

Jumper Wire Ass'y.

$

$

Currently unavailable
