247.882551 (31A-3CDE799) - Craftsman Snow Thrower (2006) (Sears) .Quick Reference Parts Diagram

Snow Thrower

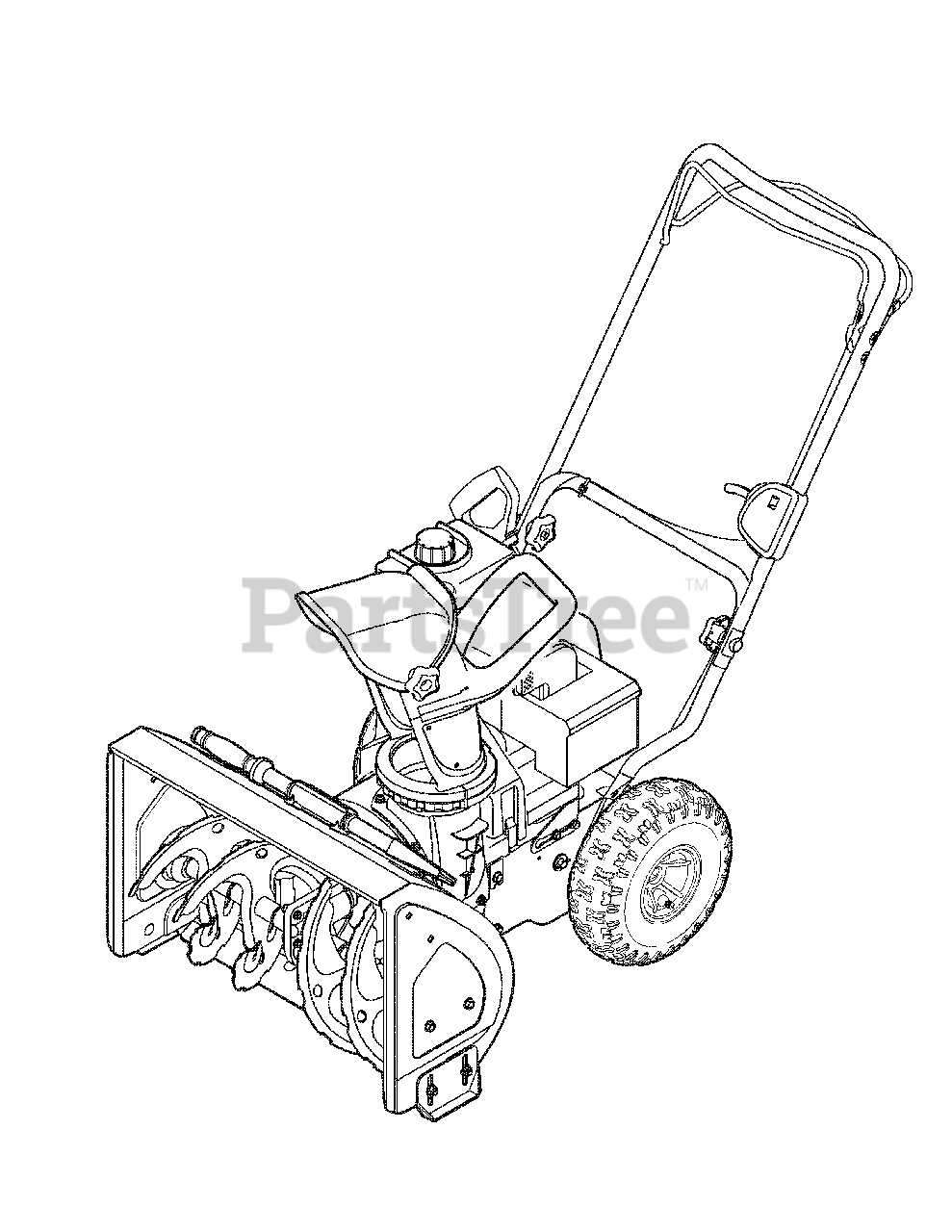

.Quick Reference Parts Diagram

  • Title

MTD 759-3338

Spark Plug

$3.99

$

In Stock, Qty 14

0

MTD TC-35062

Key

$3.99

$

In Stock, only 4 left!

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

Note: (Optional Equipment, if equipped)

$21.99

$

In Stock, Qty 12

0

MTD 931-2643

Snow Removal Toll

$19.99

$

In Stock, Qty 11

0

MTD 746-04246

Auger Cable

$

$

Not available

MTD 946-04256

Wheel Cable

$58.99

$

In Stock, only 4 left!

0

MTD 746-04244

Speed Cable

$57.99

$

Usually ships in 3-6 days

0

MTD 684-04113A-0637

Auger Assembly - LH

$84.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0637

Auger Assembly - RH

$84.99

$

Usually ships in 3-6 days

0

MTD 790-00120-0729

Shave Plate

$

$

Not available

MTD 731-04218B

Impeller

$82.99

$

In Stock, only 2 left!

0

MTD 784-5580-0729

Slide Shoe
(Superseded to 784-5580-0637)

$23.99

$

In Stock, Qty 20+

0

MTD 753-06206

Skid Shoe Kit, Standard Polymer

Note: (includes 2 shoes and hardware) (Optional Equipment)

$54.99

$

In Stock, Qty 8

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 954-05110

Auger Belt

$28.99

$

In Stock, Qty 20+

0

MTD 954-04102

Wheel Belt

$23.99

$

In Stock, only 1 left!

0

MTD 934-04282B

Wheel

$54.99

$

In Stock, Qty 20+

0
