247.881980 (31A-3ABD799) - Craftsman Snow Thrower (2015) 165-WU Flywheel Shroud Parts Diagram

Snow Thrower

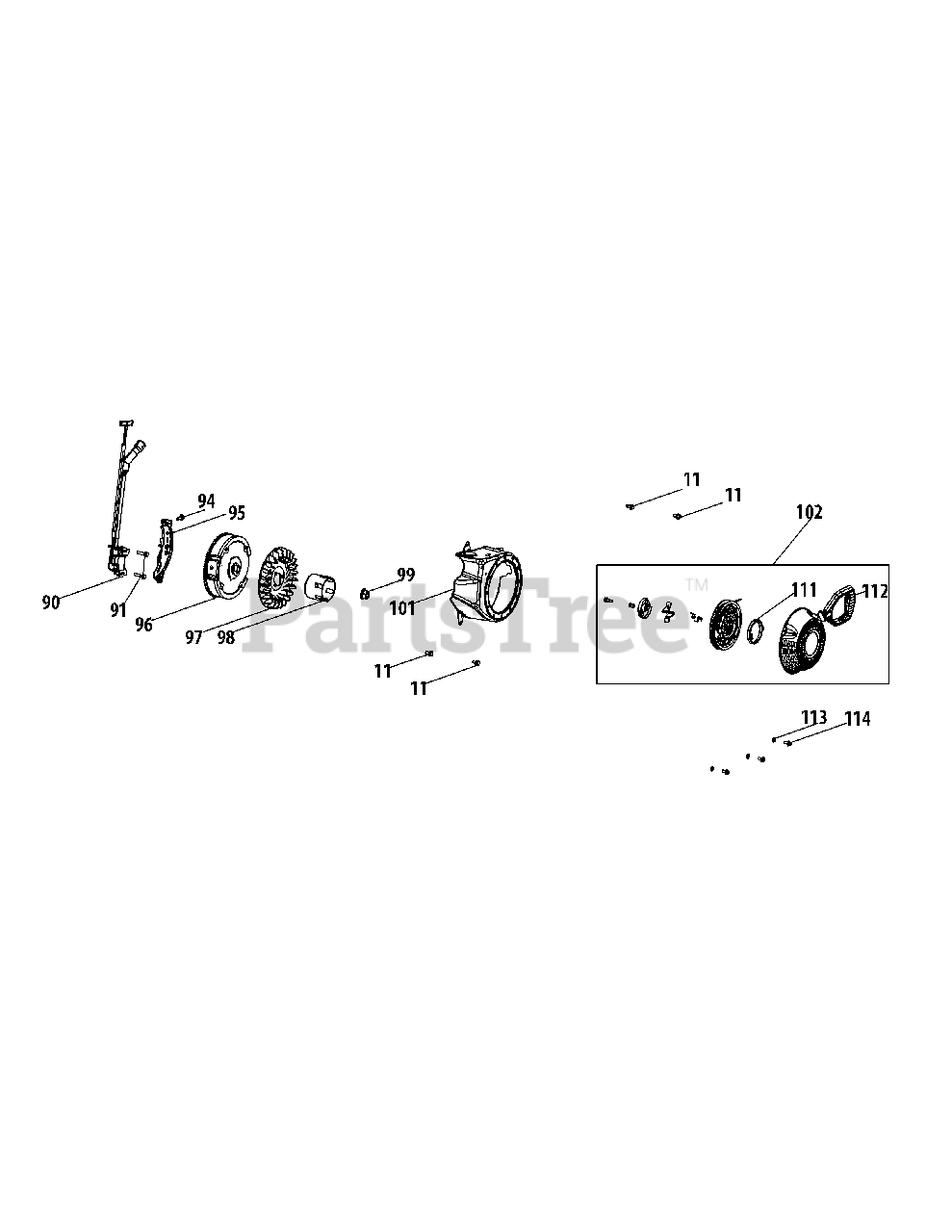

165-WU Flywheel Shroud Parts Diagram

  • Title

11

MTD 710-04915

Bolt, M6×12

$4.49

$

In Stock, Qty 20+

0

90

MTD 751-15151

Ignition Module
(Superseded to 951-15151)

$98.99

$

Usually ships in 3-6 days

0

91

MTD 710-04919

Bolt, M6×25

$4.49

$

Usually ships in 3-6 days

0

94

MTD 710-05192

Bolt, M6×20

$5.99

$

Usually ships in 3-6 days

0

95

MTD 951-15030

Lower Shield

$11.99

$

Usually ships in 3-6 days

0

96

MTD 951-10805

Flywheel

$133.99

$

Usually ships in 3-6 days

0

97

MTD 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

98

MTD 951-14887

Starter Cup

$14.99

$

Usually ships in 3-6 days

0

99

MTD 712-04287

Nut, M14×1.5

$6.99

$

In Stock, only 1 left!

0

101

MTD 751-15145

Blower Housing
(Superseded to 951-15145)

$37.99

$

Usually ships in 3-6 days

0

102

MTD 951-14545

Recoil Starter

$83.99

$

In Stock, only 1 left!

0

111

MTD 932-05114

Recoil Spring

$12.99

$

Usually ships in 3-6 days

0

112

MTD 731-05696

Starter Handle

$16.99

$

In Stock, only 3 left!

0

113

MTD 736-04455

Washer, 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

114

MTD 710-06354

Bolt, M6×12

$6.99

$

Usually ships in 3-6 days

0
