247.881732 (31AS6BEE799) - Craftsman Snow Thrower (2015) 270-WU Carburetor Parts Diagram

Snow Thrower

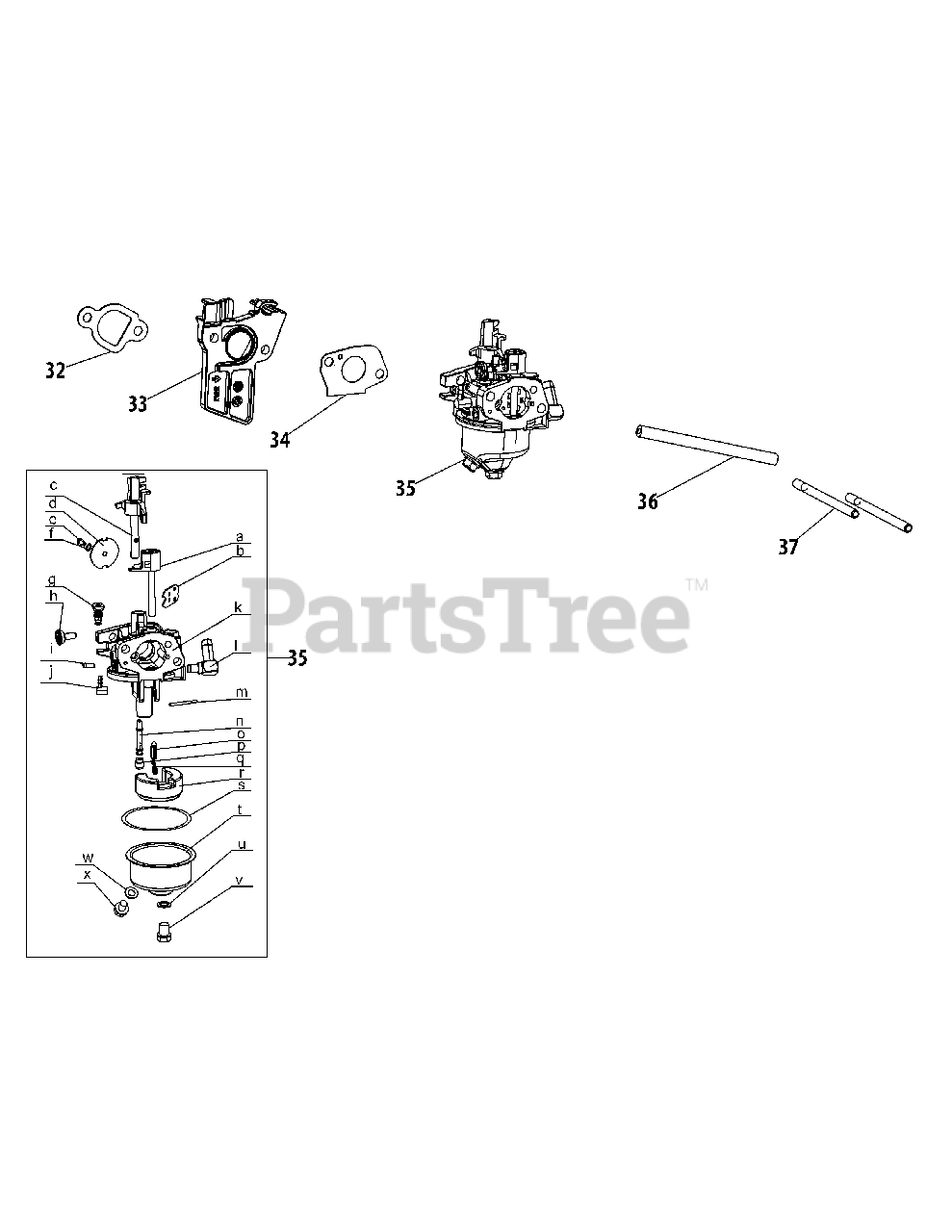

270-WU Carburetor Parts Diagram

  • Title
32

MTD 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

33

MTD 751-15160

Insulator
(Superseded to 951-15160)

$7.49

$

In Stock, Qty 11

0

34

MTD 951-11569A

Gasket, Carburetor
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

35

MTD 751-15236

Carburetor
(Superseded to 951-15236)

$101.99

$

In Stock, Qty 20+

0

36

MTD 935-05038

Fuel Hose,3.2×6.5×170

$12.99

$

In Stock, only 3 left!

0

37

MTD 710-06319

Stud, M6×92

$6.49

$

Usually ships in 3-6 days

0

a

MTD n/a

Choke Shaft

$

$

Currently unavailable

b

MTD n/a

Choke Plate

$

$

Currently unavailable

c

MTD n/a

Throttle Shaft

$

$

Currently unavailable

d

MTD n/a

Throttle Plate

$

$

Currently unavailable

e

MTD 710-05469

Screw, M3×6

$4.49

$

Usually ships in 3-6 days

0

f

MTD 736-04638

Washer, 3
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

MTD n/a

Idle Jet

$

$

Currently unavailable

h

MTD n/a

Idle Adjusting Screw

$

$

Currently unavailable

i

MTD n/a

Mixture Screw

$

$

Currently unavailable

j

MTD n/a

Primer Line

$

$

Currently unavailable

k

MTD n/a

Carburetor Body

$

$

Currently unavailable

l

MTD n/a

Fuel Nipple

$

$

Currently unavailable

m

MTD n/a

Float Pin

$

$

Currently unavailable

n

MTD n/a

Nozzle Tube

$

$

Currently unavailable

o

MTD n/a

Needle Valve

$

$

Currently unavailable

p

MTD n/a

Main Jet

$

$

Currently unavailable

q

MTD n/a

Needle Valve Spring

$

$

Currently unavailable

r

MTD n/a

Float

$

$

Currently unavailable

s

MTD 951-11589

O-Ring, Float Bowl
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

MTD 908-05000

Float Bowl

$

$

Not available

u

MTD 951-11348

O-Ring, Float Bowl
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

v

$4.49

$

In Stock, Qty 13

0

w

MTD 951-11349

Gasket, Drain Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

MTD 710-04938

Drain Bolt

$4.49

$

In Stock, Qty 10

0
