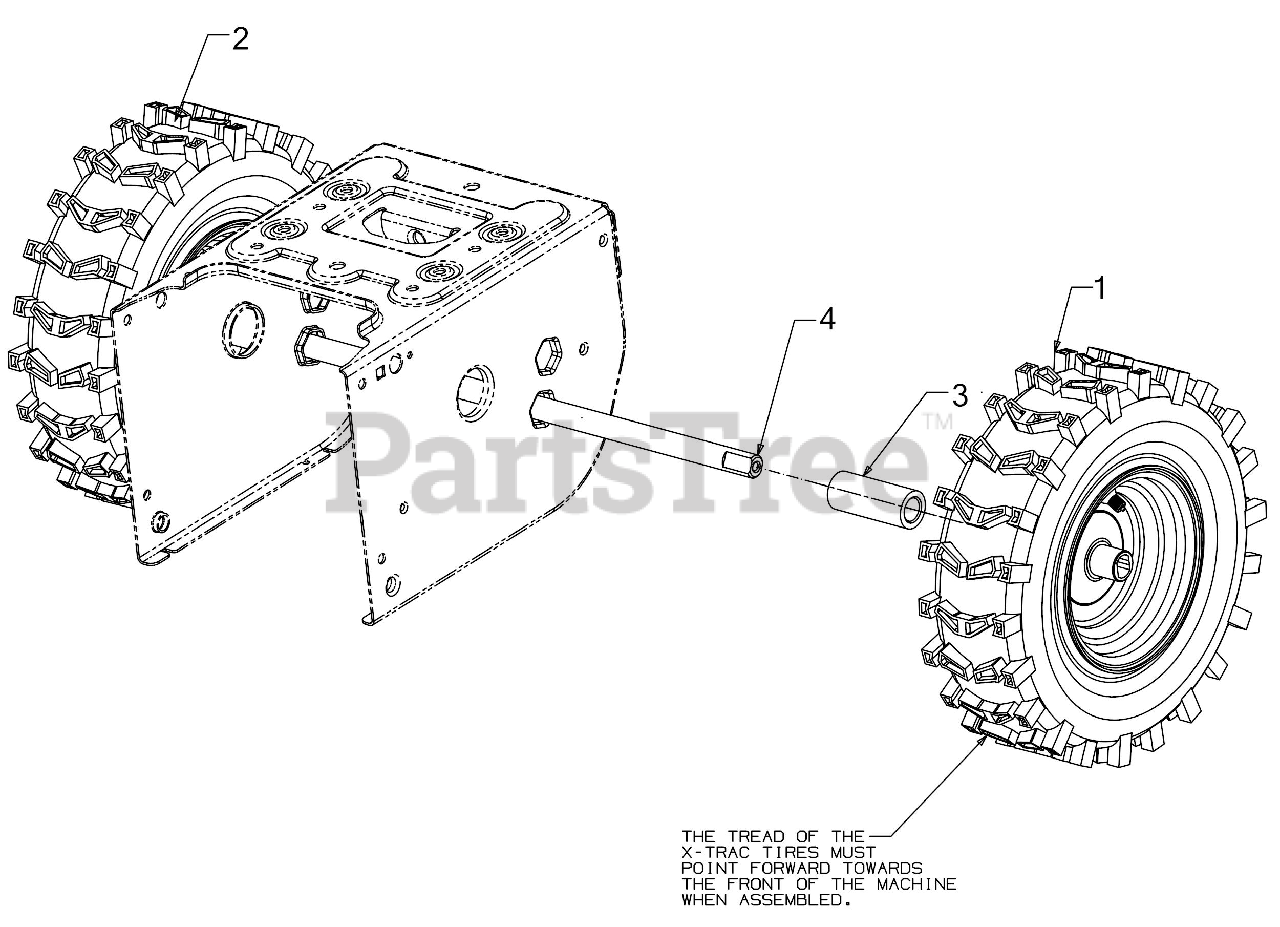

247.881723 (31AS6AEE799) - Craftsman Snow Thrower (2017) Wheels Parts Diagram

Snow Thrower

Wheels Parts Diagram

  • Title
1

WHEEL ASSEMBLY (13 x 4 x 6) (LH)

$

$

Not available

1

MTD 634-04172A-4042

RIM ASSEMBLY (6 x 3.25) W/VALVE

Note: (Not Shown)

$54.99

$

Usually ships in 3-6 days

0

1

MTD 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

MTD 734-04128-0901

TIRE X-TRAC 13 x 4 x 6

Note: (Not Shown)

$83.99

$

Usually ships in 3-6 days

0

2

WHEEL ASSEMBLY (13 x 4 x 6) (RH)

$

$

Not available

2

MTD 634-04172A-4042

RIM ASSEMBLY (6 x 3.25) W/VALVE

Note: (Not Shown)

$54.99

$

Usually ships in 3-6 days

0

2

MTD 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 734-04128-0901

TIRE X-TRAC 13 x 4 x 6

Note: (Not Shown)

$83.99

$

Usually ships in 3-6 days

0

3

MTD 731-04873

WHEEL SPACER 1.25ODX.75X3.00

$10.99

$

In Stock, Qty 13

0

4

MTD 938-04493

WHEEL AXLE SHAFT .75 x 22"

$63.99

$

In Stock, Qty 7

0
