247.881722 (31AS6AEE799) - Craftsman Snow Thrower (2015) 265-WU Flywheel Shroud Parts Diagram

Snow Thrower

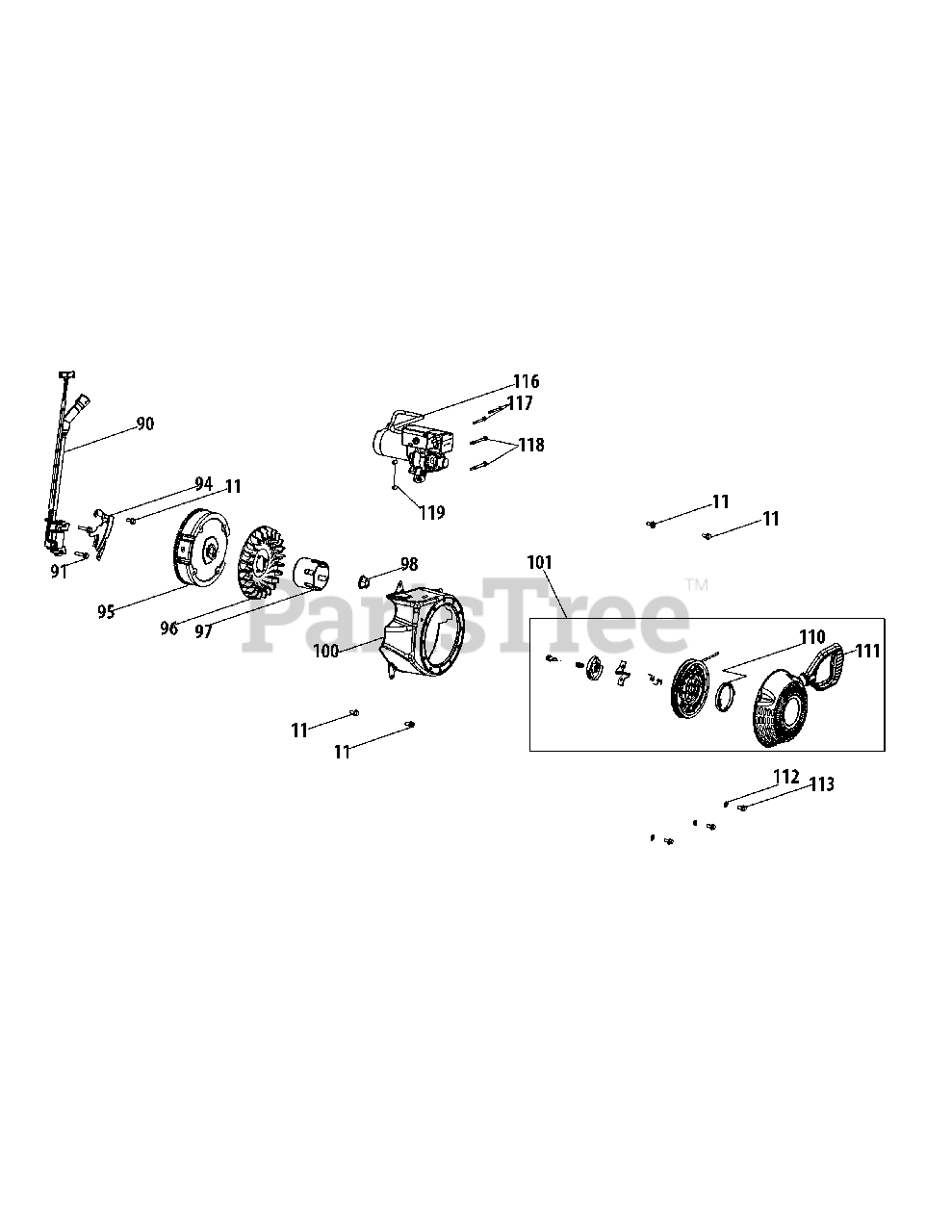

265-WU Flywheel Shroud Parts Diagram

  • Title

11

MTD 710-04915

Bolt, M6×12

$4.49

$

In Stock, Qty 20+

0

90

MTD 751-15151

Ignition Module
(Superseded to 951-15151)

$98.99

$

Usually ships in 3-6 days

0

91

MTD 710-04919

Bolt, M6×25

$4.49

$

Usually ships in 3-6 days

0

94

MTD 951-11109

Lower Shield

$7.49

$

Usually ships in 3-6 days

0

95

MTD 751-14886

Flywheel

$

$

Currently unavailable

96

MTD 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

97

MTD 951-14887

Starter Cup

$14.99

$

Usually ships in 3-6 days

0

98

MTD 712-04287

Nut, M14×1.5

$6.99

$

In Stock, only 1 left!

0

100

MTD 751-15228

Blower Housing
(Superseded to 951-15228)

$44.99

$

Usually ships in 3-6 days

0

101

MTD 951-14545

Recoil Starter

$83.99

$

In Stock, only 1 left!

0

110

MTD 932-05114

Recoil Spring

$12.99

$

Usually ships in 3-6 days

0

111

MTD 731-05696

Starter Handle

$16.99

$

In Stock, only 3 left!

0

112

MTD 736-04455

Washer, 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

113

MTD 710-04974

Bolt, M6×10

$6.99

$

In Stock, only 3 left!

0

116

MTD 751-15229

Electric Starter
(Superseded to 951-15229)

$367.99

$

Usually ships in 3-6 days

0

117

MTD 751-15230

Screw, M4×45
(Superseded to 951-15230)

$3.49

$

Usually ships in 3-6 days

0

118

MTD 710-05182

Bolt, M6×32

$4.49

$

In Stock, only 1 left!

0

119

MTD 715-05088

Pin, 8×8

$

$

Currently unavailable
