247.881722 (31AS6AEE799) - Craftsman Snow Thrower (2015) 265-WU Cylinder Head Parts Diagram

Snow Thrower

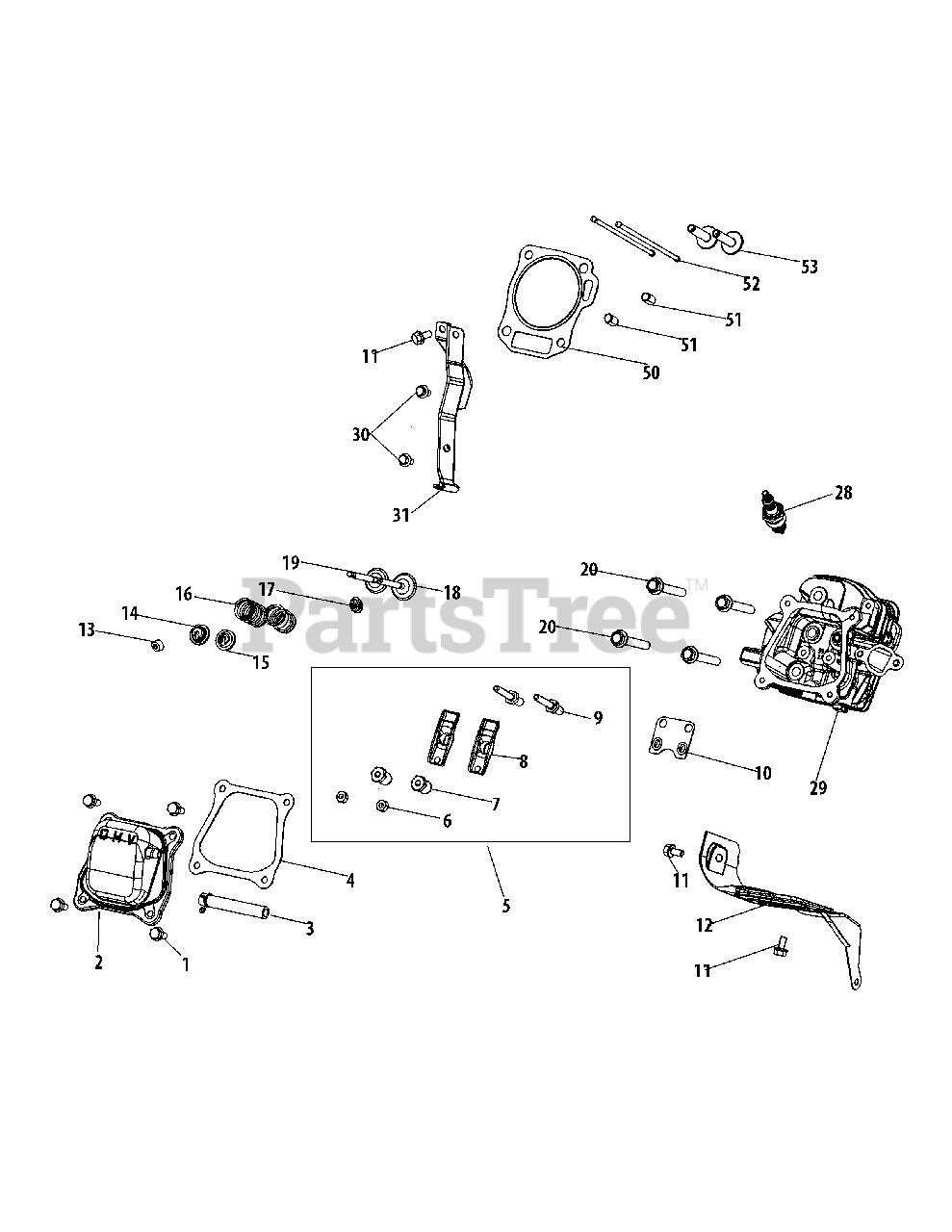

265-WU Cylinder Head Parts Diagram

  • Title
1

MTD 710-05191

Bolt, M6×16
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11054B

Valve Cover

$15.99

$

Usually ships in 3-6 days

0

3

MTD 951-15045

Breather Hose

$6.49

$

Usually ships in 3-6 days

0

4

MTD 951-11565

Gasket, Valve Cover
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 13

0

5

MTD 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

6

MTD 751-11124

Lock Nut

$9.49

$

In Stock, only 2 left!

0

7

MTD 751-11123

Adjust Nut

$10.99

$

In Stock, only 4 left!

0

8

MTD 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

9

$6.99

$

In Stock, only 4 left!

0

10

MTD 751-15139

Rocker Arm Base
(Superseded to 951-15139)

$6.99

$

Usually ships in 3-6 days

0

11

MTD 710-04915

Bolt, M6×12

$4.49

$

In Stock, Qty 20+

0

12

MTD 951-11113

Shroud

$9.49

$

Usually ships in 3-6 days

0

13

MTD 951-12002

Valve Adjust Cap, Exhaust
(Superseded to 751P12002A)

$2.99

$

Usually ships in 3-6 days

0

14

MTD 951-12003

Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

15

MTD 951-12000

Valve Spring Seat

$4.49

$

In Stock, only 1 left!

0

16

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

17

MTD 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

18

MTD 951-14099

Intake Vavle
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

19

MTD 951-14100

Exhaust Valve
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

20

MTD 710-04933

Bolt, M8×55

$3.99

$

In Stock, Qty 10

0

28

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

MTD 751-14928

Cylinder Head
(Superseded to 951-14928)

$45.99

$

In Stock, Qty 5

0

30

MTD 710-05103

Bolt, M6×12

$4.49

$

In Stock, only 2 left!

0

31

MTD 751-15185

Snow Guard
(Superseded to 951-15185)

$12.99

$

In Stock, only 1 left!

0

50

MTD 951-11898

Gasket, Cylinder Head

$11.99

$

In Stock, only 2 left!

0

51

MTD 715-04108

Pin, 10×16

$4.49

$

In Stock, only 3 left!

0

52

MTD 951-14105

Push Rod
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

53

MTD 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0
