247.881722 (31AS6AEE799) - Craftsman Snow Thrower (2015) 265-WU Crankcase Parts Diagram

Snow Thrower

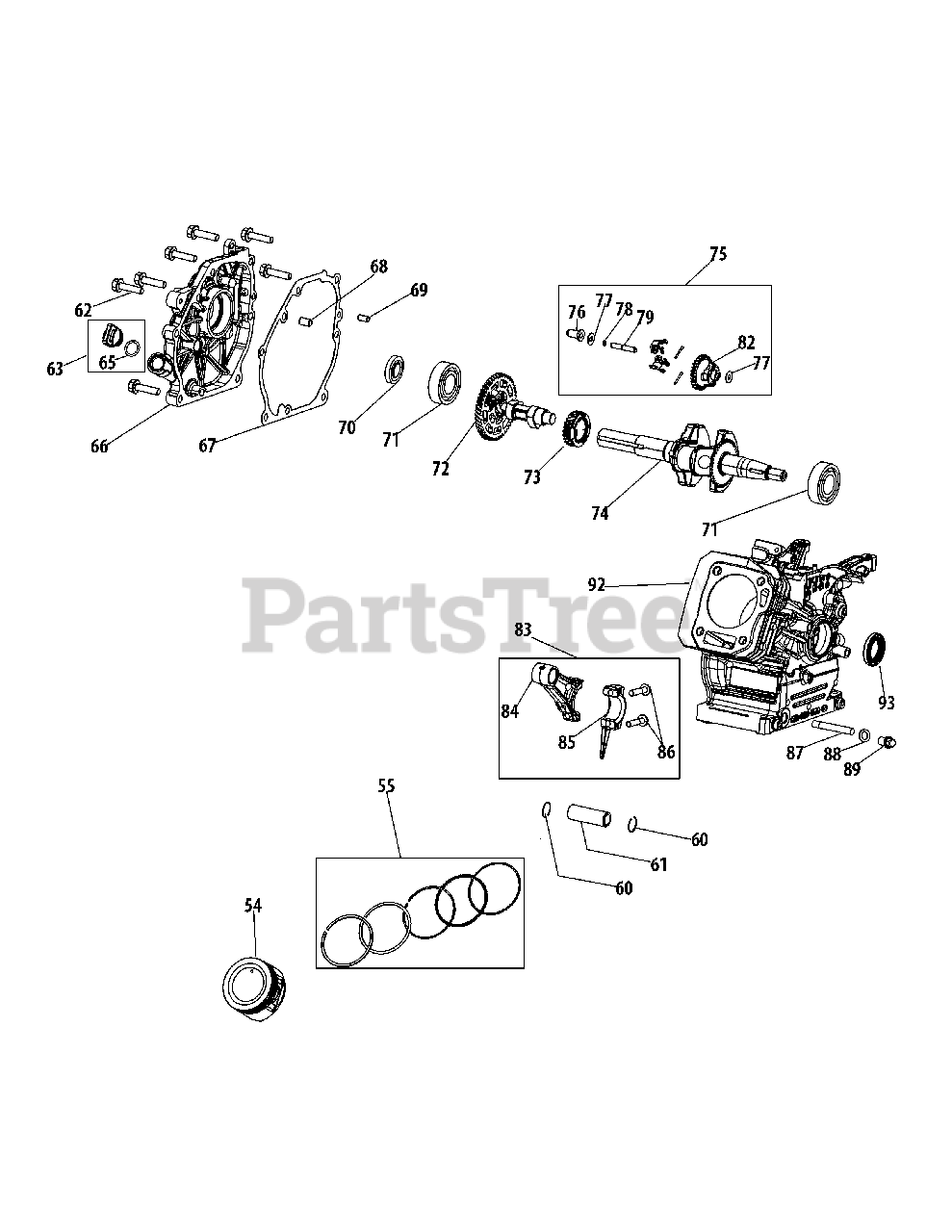

265-WU Crankcase Parts Diagram

  • Title
54

MTD 951-11900

Piston

$34.99

$

In Stock, only 1 left!

0

55

MTD 951-11688

Piston Ring Set

$19.99

$

In Stock, only 3 left!

0

60

MTD 951-11632

Circlip

$4.49

$

Usually ships in 3-6 days

0

61

MTD 951-11901

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

62

MTD 710-04932

Bolt, M8×32

$4.49

$

Usually ships in 3-6 days

0

63

MTD 731-09966

Oil Plug
(Superseded to 931-09966)

$6.49

$

Usually ships in 3-6 days

0

65

MTD 951-11577

O-Ring, 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

66

MTD 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

67

MTD 951-11371

Gasket, Crankcase
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

68

MTD 715-04096

Pin, 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

69

MTD 715-04092

Pin, 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

70

MTD 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

71

MTD 951-11369

Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

72

MTD 751-15128

Camshaft
(Superseded to 951-15128)

$48.99

$

Usually ships in 3-6 days

0

73

MTD 751-15130

Drive Timing Gear
(Superseded to 951-15130)

$14.99

$

Usually ships in 3-6 days

0

74

MTD 751-15129

Crankshaft
(Superseded to 951-15129)

$122.99

$

Usually ships in 3-6 days

0

75

MTD 951-11576

Governor Gear
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

76

MTD 931-09595

Governor Cup

$5.99

$

Usually ships in 3-6 days

0

77

MTD 936-05038

Washer, 6.2×0.6×15

$4.99

$

In Stock, only 2 left!

0

78

MTD 916-05003

Retaining Ring

$5.99

$

In Stock, only 1 left!

0

79

MTD 911-06137

Governor Shaft

$6.99

$

Usually ships in 3-6 days

0

82

MTD 917-05152

Governor Gear

$11.99

$

Usually ships in 3-6 days

0

83

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

84

MTD 619-05049

Connecting Rod

$

$

Currently unavailable

85

MTD 619-05048

Connecting Rod Cap

$

$

Currently unavailable

86

MTD 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

87

MTD 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

88

MTD 736-04440

Washer, 10×1.5×16
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

89

MTD 710-04906

Earth Bolt

$6.99

$

In Stock, Qty 13

0

92

MTD 751-14198

Crankcase
(Superseded to 951-14198)

$185.99

$

Usually ships in 3-6 days

0

93

MTD 951-11370

Oil Seal, 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0
