247.881720 (31BS62EE799) - Craftsman Snow Thrower (2014) Drive Assembly Parts Diagram

Snow Thrower

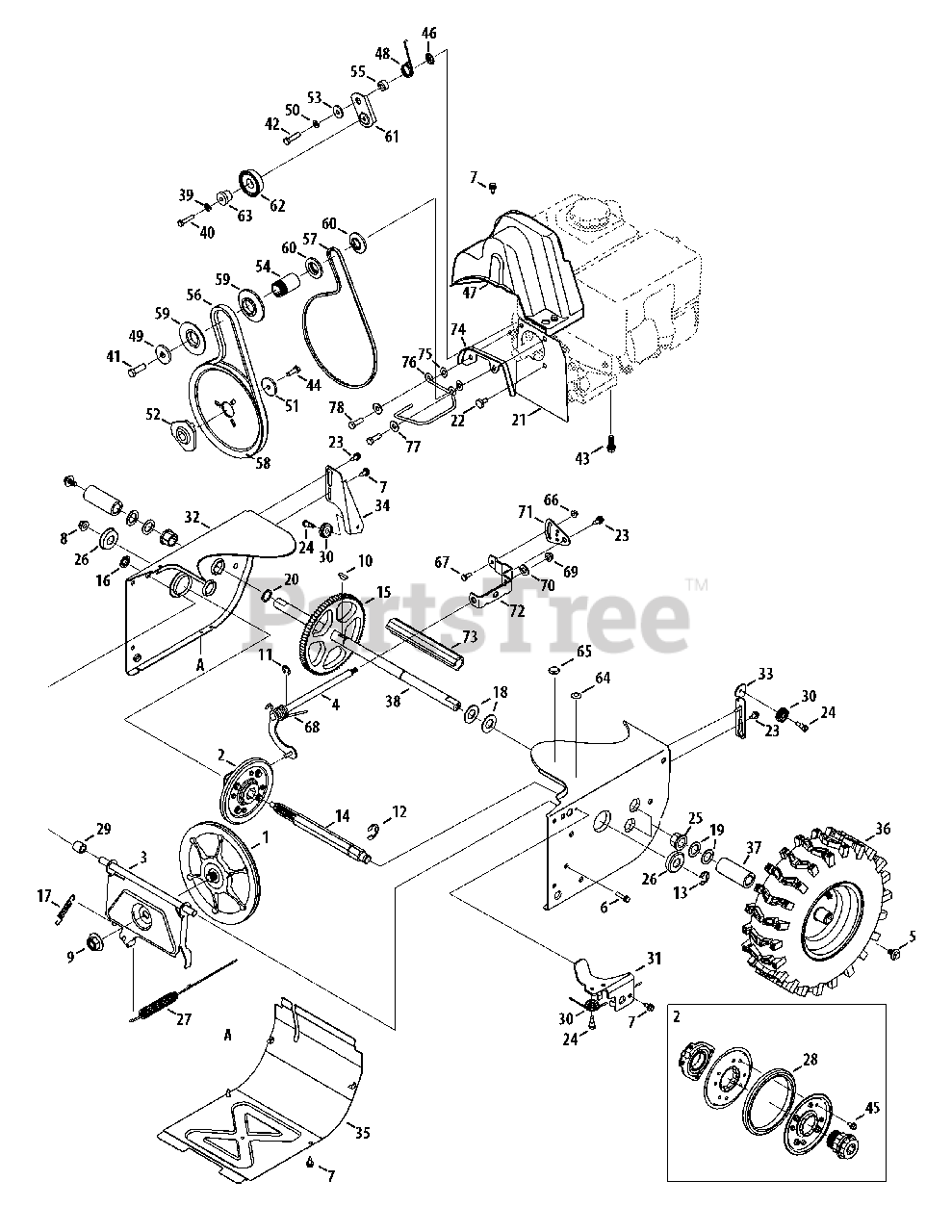

Drive Assembly Parts Diagram

  • Title

1

MTD 656-04055

Disc Assembly, Friction Wheel
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 13

0

2

MTD 684-04153C

Friction Wheel Assembly, 5.5 OD

$101.99

$

In Stock, Qty 20+

0

3

MTD 684-04154B-0637

Support Bracket, Friction Wheel

$41.99

$

Usually ships in 3-6 days

0

4

MTD 684-04156A

Shift Assembly, Rod

$61.99

$

Usually ships in 3-6 days

0

5

MTD 710-05339

Screw, 5/16-24, .750, Gr5
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0788

Screw, 1/4-20, 1.000

$7.49

$

In Stock, only 2 left!

0

7

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

10

MTD 914-0126

Key, Hi Pro, 3/16 x 3/4 Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

11

MTD 916-0104

E-ring, .500 Dia.

$3.99

$

In Stock, Qty 20+

0

12

MTD 716-0136

E-ring, Retaining, .875 Dia.

$8.99

$

In Stock, Qty 18

0

13

MTD 916-0231

E-ring, .750 Dia.
(Superseded to 716-0231)

$

$

Not available

14

MTD 917-04209A

Hex Shaft, .8125, 7-Tooth
(Superseded to 917-04209B)

$143.99

$

In Stock, only 2 left!

0

15

MTD 917-04230

Gear, 80-Tooth

$108.99

$

Usually ships in 3-6 days

0

16

MTD 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 2 left!

0

17

MTD 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0188

Washer, Flat, .760 x 1.490 x .060

$4.49

$

In Stock, Qty 20+

0

19

MTD 936-0287

Washer, Flat, .793 x 1.24 x .060
(Superseded to 736-0287)

$

$

Not available

20

MTD 736-04161

Washer, Flat, .75 x 1.00 x .060

$6.99

$

Usually ships in 3-6 days

0

21

MTD 790-00289A-0637

Plate, Cover
(Superseded to 790-00289B-0637)

$26.99

$

Usually ships in 3-6 days

0

22

MTD 738-04439

Shoulder Screw

$3.99

$

In Stock, Qty 5

0

23

MTD 738-04184A

Screw, Shoulder, .37 x .105, 1/4-20

$6.99

$

In Stock, Qty 5

0

24

MTD 738-0924A

Screw, 1/4-28, .375

$6.99

$

In Stock, Qty 5

0

25

MTD 941-0245

Bearing, Hex Flange x .75 ID

$9.99

$

In Stock, Qty 20+

0

26

MTD 941-0563

Bearing, Ball, 17 x 40 x 12

$36.99

$

In Stock, Qty 7

0

27

MTD 946-05067

Clutch Cable, Wheel, 44.95"

$25.99

$

In Stock, Qty 13

0

28

MTD 935-04054

Rubber, Friction Wheel, 5.5 OD
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

29

MTD 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, Qty 11

0

30

MTD 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 11

0

31

MTD 790-00096A-0637

Front Guide Bracket, Auger Cable
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 2 left!

0

32

MTD 790-00180C-4043

Frame
(Superseded to 790-00180E-4043)

$139.99

$

Usually ships in 3-6 days

0

33

MTD 790-00206A-0637

Guide Bracket, Auger Cable
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

34

MTD 790-00207C

Guide Bracket, Drive Cable
(Superseded to 790-03997)

$5.49

$

In Stock, Qty 6

0

35

MTD 790-00316-4043

Cover, Frame

$44.99

$

Usually ships in 3-6 days

0

36

MTD 634-04167A-0911

LH Wheel Assembly

$189.99

$

In Stock, only 4 left!

0

36

MTD 634-04168A-0911

RH Wheel Assembly

$189.99

$

Usually ships in 3-6 days

0

37

MTD 731-04873

Spacer, 1.25 x .75 x 3.0

$10.99

$

In Stock, Qty 7

0

38

MTD 738-04493

Axle, .75 x 22"
(Superseded to 938-04493)

$63.99

$

In Stock, Qty 5

0

39

MTD 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 9

0

40

MTD 710-0809

Hex Screw, 1/4-20, 1.25, Gr5

$6.99

$

In Stock, Qty 17

0

41

MTD 710-0191

Hex Screw, 3/8-24, 1.25, Gr8

$4.99

$

In Stock, Qty 9

0

42

MTD 710-0672

Hex Screw, 5/16-24, 1.25, Gr5

$4.49

$

In Stock, Qty 16

0

43

MTD 710-0654A

Screw, Sems, 3/8-16, 1.00

$4.49

$

In Stock, Qty 20+

0

44

MTD 710-1245B

Hex Screw, 5/16-24, .875, Gr8

$8.49

$

In Stock, only 4 left!

0

45

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

46

MTD 926-04012

Nut, Push-on, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

47

MTD 731-05353

Cover, Belt
(Superseded to 731-05353B)

$

$

Not available

48

MTD 732-04308A

Spring, Torsion, .850 ID x .354
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

49

MTD 736-3082A

Washer, Flat, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

50

MTD 936-0119

Washer, Lock .3125

$4.99

$

In Stock, Qty 20+

0

51

MTD 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

52

MTD 748-04053A

Pulley, Adapter, .75 Dia.

$22.99

$

In Stock, only 3 left!

0

53

MTD 748-04112B

Spacer, Shoulder, .317 x .50 x .102

$4.49

$

In Stock, Qty 9

0

54

MTD 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

55

MTD 750-04477A

Spacer, .340 x .750 x .360

$5.49

$

In Stock, only 2 left!

0

56

MTD 954-04050A

Belt, Auger Drive

$27.99

$

In Stock, Qty 20+

0

57

MTD 954-04260

Belt, Wheel Drive

$28.99

$

In Stock, Qty 20+

0

58

MTD 756-04109

Pulley, Auger Drive, 8.1 x .5

$54.99

$

Usually ships in 3-6 days

0

59

MTD 756-04113

Pulley, Half, V x 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

60

MTD 756-04252

Pulley, Half, 3/8-V x 1.7160 OD

$6.49

$

In Stock, only 2 left!

0

61

MTD 790-00208D

Idler Bracket, Wheel Drive

$8.99

$

In Stock, Qty 9

0

62

MTD 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 8

0

63

MTD 750-04571

Spacer, Shoulder, .26 x .79 x .538

$6.99

$

In Stock, only 2 left!

0

64

MTD 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

65

MTD 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

66

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0751

Hex Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

68

MTD 732-04311A

Spring, Torsion, .750 ID x .968

$10.99

$

In Stock, only 2 left!

0

69

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

70

MTD 936-3015

Wash., Flat, .469 x .875 x .105

$4.49

$

In Stock, Qty 19

0

71

MTD 790-00217A-0637

Pivot Bracket, Speed Selector
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0

72

MTD 790-00218A-0637

Shift Bracket, Speed Selector
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0

73

MTD 731-08181

Spacer, Axle

$10.99

$

Usually ships in 3-6 days

0

74

MTD 731-07101

Belt Cover

$10.99

$

In Stock, only 2 left!

0

75

MTD 736-0278

Washer, Flat, .330 x .687 x .030

$5.99

$

Usually ships in 3-6 days

0

76

MTD 747-06336

Belt Guide
(Superseded to 747-06336A)

$

$

Not available

77

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

78

MTD 710-0117A

Screw, 5/16-24 x 1.00

$5.49

$

Usually ships in 3-6 days

0
