247.880450 (31AE9P6J799) - Craftsman Snow Thrower (2007) (Sears) Controls & Chute Parts Diagram

Snow Thrower

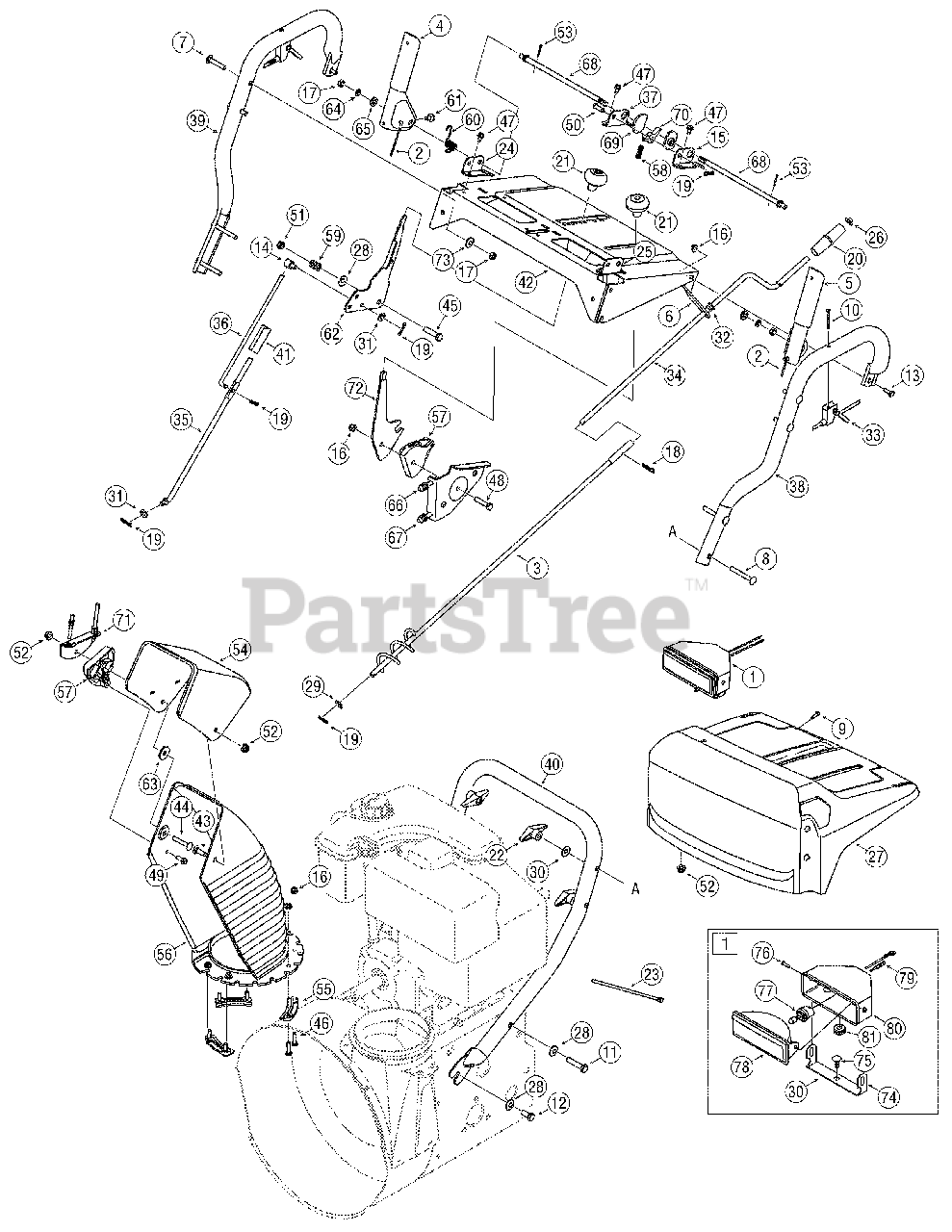

Controls & Chute Parts Diagram

  • Title

1

MTD 625-0007A

Assembly, Light
(Superseded to 625-0007AP)

$

$

Not available

2

MTD 646-0012

Cable Ass’y, Auger/Drive

$36.99

$

In Stock, only 1 left!

0

3

MTD 684-0053B

Crank, Chute, 26.0
(Superseded to 684-0053B-0637)

Variations

MTD 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 705-5218

Handle, Engage, RH

$37.99

$

Usually ships in 3-6 days

0

5

MTD 705-5219

Handle, Engage, LH

$37.99

$

Usually ships in 3-6 days

0

6

MTD 705-5266

Bracket, Chute Crank
(Superseded to 705-5266-0637)

Variations

MTD 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

7

MTD 710-0458

Screw, Carr., 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

8

MTD 710-0572

Screw, Carr., 5/16-18 x 2.5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

10

MTD 710-1625

Screw, #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

11

MTD 710-04682

Screw, Hex, 3/8-16 x 2.00

$5.99

$

Usually ships in 3-6 days

0

12

MTD 710-3118

Screw, Hex, 3/8-16 x 1.00

$5.49

$

Usually ships in 3-6 days

0

13

MTD 710-3015

Screw, Hex, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

14

MTD 711-0677

Ferrule, 5/16-18 x .312 Dia
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

15

MTD 784-5679

Brkt., Handle Support - LH
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

16

MTD 712-04064

Nut, Hex Flange, 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-3068

Nut, Hex Lock, 5/16-18 GR5
(Superseded to 912-3009)

$

$

Not available

18

MTD 714-0101

Pin, Internal Cotter

$4.99

$

In Stock, only 2 left!

0

19

MTD 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

20

MTD 720-0201A

Knob, Crank

$10.99

$

In Stock, Qty 5

0

21

MTD 720-04039

Knob, Shift

$10.99

$

In Stock, only 2 left!

0

22

MTD 720-0284

Knob, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

23

MTD 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

24

MTD 784-5682

Brkt., Handle Support - RH
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

25

MTD 784-5681

Brkt., Handle Support - LH

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

26

MTD 726-0100

Cap, Push, 3/8

$4.49

$

In Stock, Qty 20+

0

27

MTD 731-2298

Panel, Handle

$

$

Not available

28

MTD 736-0105

Wash, Bell, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0185

Wash,Fl., .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0242

Wash, Bell, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0275

Wash, Fl, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

32

MTD 741-0475

Bushing, Plastic, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

33

MTD 746-0950A

Cable Assembly, Trigger

$22.99

$

Usually ships in 3-6 days

0

34

MTD 747-0624

Rod, Chute Crank
(Superseded to 747-0624-0637)

Variations

MTD 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

35

MTD 747-0983A

Rod, Lower Shift

$45.99

$

Usually ships in 3-6 days

0

36

MTD 747-0997

Rod, Upper Shift

$69.99

$

Usually ships in 3-6 days

0

37

MTD 784-5680

Brkt., Handle Support - RH
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

38

MTD 749-0989A

Handle, Upper LH

Variations

MTD 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

39

MTD 749-0990A

Handle, Upper RH

Variations

MTD 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

40

MTD 749-0991

Handle, Lower

Variations

MTD 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

41

MTD 750-0963

Connector, Shift Rod
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

42

MTD 684-0102A

Panel, Handle

Variations

MTD 684-0102A-0498

PANEL ASM:HANDLE - OLD CUB YELLOW (0498)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0637

PANEL ASM:HANDLE - POWDER BLACK (0637)

$133.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0674

PANEL ASM:HANDLE - YARDMAN YELLOW (0674)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0716

PANEL ASM:HANDLE - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

MTD 684-0102A-4044

PANEL ASM:HANDLE - CRAFTSMAN RED (4044)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

43

MTD 710-0276

Screw, Carr, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 10

0

44

MTD 710-0458

Screw, Carr., 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

45

MTD 710-0459A

Screw, Hex, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

46

MTD 710-0597

Screw, Hex, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

47

MTD 710-0599

Screw, Hx, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0805

Screw, Hex, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0895

Screw, Hx,1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

50

MTD 711-0653

Pin, Clevis, .312 x 1.0

$3.99

$

Usually ships in 3-6 days

0

51

MTD 712-0116

Nut, Insert, 3/8-24

$4.99

$

In Stock, Qty 6

0

52

MTD 712-04063

Nut, Flnge Lk, 5/16-18

$3.99

$

In Stock, only 4 left!

0

53

MTD 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, Qty 12

0

54

MTD 731-0846C

Chute, Upper, 6.0

$52.99

$

In Stock, only 4 left!

0

55

MTD 731-0851A

Flange Keeper, Chute

$4.49

$

In Stock, Qty 20+

0

56

MTD 731-0903D

Chute, Lower
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 20+

0

57

MTD 731-1313C

Cbl. Guide, Chute Tilt

$11.99

$

In Stock, Qty 20+

0

58

MTD 732-0145

Spring, Compression

$4.49

$

Usually ships in 3-6 days

0

59

MTD 732-0193

Spring, Compression

$4.99

$

In Stock, Qty 6

0

60

MTD 732-0746

Spring, Torsion

$4.49

$

In Stock, Qty 13

0

61

MTD 735-0199A

Bumper, Rubber

$7.99

$

In Stock, only 4 left!

0

62

MTD 784-5619B

Handle, Shift
(Superseded to 784-5619B-0637)

Variations

MTD 784-5619B-0637

HANDLE:SHIFT:S/T - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

63

MTD 736-0231

Wash, Fl, .344 x 1.125 x .12

$4.99

$

In Stock, Qty 20+

0

64

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

MTD 736-0509

Wash, Fl, .35 Sq x .72 x .134

$6.99

$

In Stock, only 1 left!

0

66

MTD 746-0902

Cable, Chute Control, 66"
(Superseded to 946-0902)

$49.99

$

Usually ships in 3-6 days

0

67

MTD 746-0903

Cable, Chute Control w/Clip,
(Superseded to 946-0903)

$53.99

$

In Stock, only 1 left!

0

68

MTD 747-0877

Rod, Cam

$22.99

$

Usually ships in 3-6 days

0

69

MTD 748-0362

Cam, Handle Lock

$7.99

$

Usually ships in 3-6 days

0

70

MTD 748-0363

Pawl, Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

71

MTD 784-5594

Bracket, Cable

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

72

MTD 784-5604A

Handle, Chute Tilt
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604A-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

73

MTD 736-0159

Washer, Flat, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

74

MTD 705-5217

Bracket, Mount, Lamp

$43.99

$

Usually ships in 3-6 days

0

75

MTD 710-0451

Bolt, Carriage, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

76

MTD 710-1240

Screw, M4 x .7

$7.49

$

Usually ships in 3-6 days

0

77

MTD 725-1658

Lamp
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

78

MTD 725-1669

Housing, Lamp
(Superseded to 925-1669P)

$

$

Not available

79

MTD 725-04220

Harness

$20.99

$

Usually ships in 3-6 days

0

80

MTD 731-1364

Housing

$39.99

$

Usually ships in 3-6 days

0

81

MTD 735-0225

Grommet

$3.49

$

Usually ships in 3-6 days

0
