Craftsman 247.799640 (246-315D099) - Craftsman Shredder Vacuum (1996) (Sears) Chipper Assembly Parts Lookup with Diagrams

1

MTD 629-0241

HARNESS-CHIPPER VAC

$

Not available 

2

MTD 681-0059-0483

No Longer Available HSG-ASSY-I - CHARCOAL GRAY (0483)

Variations

MTD 681-0059-0483

No Longer Available HSG-ASSY-I - CHARCOAL GRAY (0483)

$

Not available 

MTD 681-0059-0498

No Longer Available HSG-ASSY-I - OLD CUB YELLOW (0498)

$

Not available 

MTD 681-0059-0638

No Longer Available HSG-ASSY-I - MTD/TROY-BILT RED (0638)

$

Not available 

MTD 681-0059-0650

No Longer Available HSG-ASSY-I - RED METALLIC (0650)

$

Not available 

MTD 681-0059-0662

Housing Ass'y, Inner Flail - OYSTER GRAY (0662)

$

Not available 

MTD 681-0059-0665

No Longer Available HSG-ASSY-I - YARDMAN GREEN (0665)

$

Not available 

MTD 681-0059-0716

No Longer Available HSG-ASSY-I - CUB YELLOW-99 (0716)

$

Not available 

$

Not available 

3

MTD 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

Variations

MTD 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

MTD 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

MTD 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

MTD 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

MTD 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

MTD 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

MTD 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

$309.99

$

Usually ships in 3-6 days

4

MTD 710-0382

SCREW-HEX

$12.99

$

In Stock, Qty 6

5

MTD 710-0604

SCREW-HEX SELF TAP

(Superseded to 710-0604A) 

$4.49

$

In Stock, Qty 20+

6

MTD 710-0607

SCREW-HEX SELF TAP

$6.99

$

In Stock, Qty 20+

7

MTD 710-0772

SCREW-HEX

$4.49

$

Usually ships in 3-6 days

8

MTD 710-1268

SCREW-HEX SELF TAP

$4.49

$

In Stock, Qty 20+

9

MTD 710-3008

SCREW-HEX

$4.49

$

In Stock, Qty 20+

10

MTD 712-0384

NUT-HEX LOCK

(Superseded to 912-0384) 

$6.99

$

In Stock, only 3 left!

11

MTD 712-0421

KNOB

$6.99

$

In Stock, Qty 18

12

MTD 712-3004A

NUT-HEX LOCK

$3.99

$

In Stock, Qty 20+

13

MTD 712-3010

NUT-HEX (GR 5)

$4.49

$

In Stock, Qty 20+

14

MTD 719-0326

SCREEN

$101.99

$

In Stock, only 1 left!

15

MTD 723-0438

SEAL-RUBBER

$10.99

$

Usually ships in 3-6 days

16

MTD 725-1700

COVER-SWITCH

(Superseded to 925-1700) 

$11.99

$

In Stock, only 1 left!

17

MTD 725-3166

SWITCH

(Superseded to 925-3166) 

$16.99

$

In Stock, Qty 20+

18

MTD 726-0272

CLAMP

$7.49

$

Usually ships in 3-6 days

19

MTD 731-1613

COVER SWITCH

(Superseded to 931-1613) 

$10.99

$

In Stock, only 1 left!

20

MTD 736-0119

WASHER-LOCK

(Superseded to 936-0119) 

$4.99

$

In Stock, Qty 20+

21

MTD 736-0242

WASHER-BELL

$4.49

$

In Stock, Qty 20+

22

MTD 781-0598-0637

Shredder Blade, Lower - POWDER BLACK (0637)

(Superseded to 781-0598-0637) 

Variations

MTD 781-0598-0637

Shredder Blade, Lower - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

$79.99

$

Usually ships in 3-6 days

23

MTD 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

(Superseded to 781-0599-0637) 

Variations

MTD 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

$33.99

$

In Stock, only 1 left!

24

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

Variations

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

MTD 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

MTD 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

MTD 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

MTD 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

MTD 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

MTD 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

MTD 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

$19.99

$

Usually ships in 3-6 days

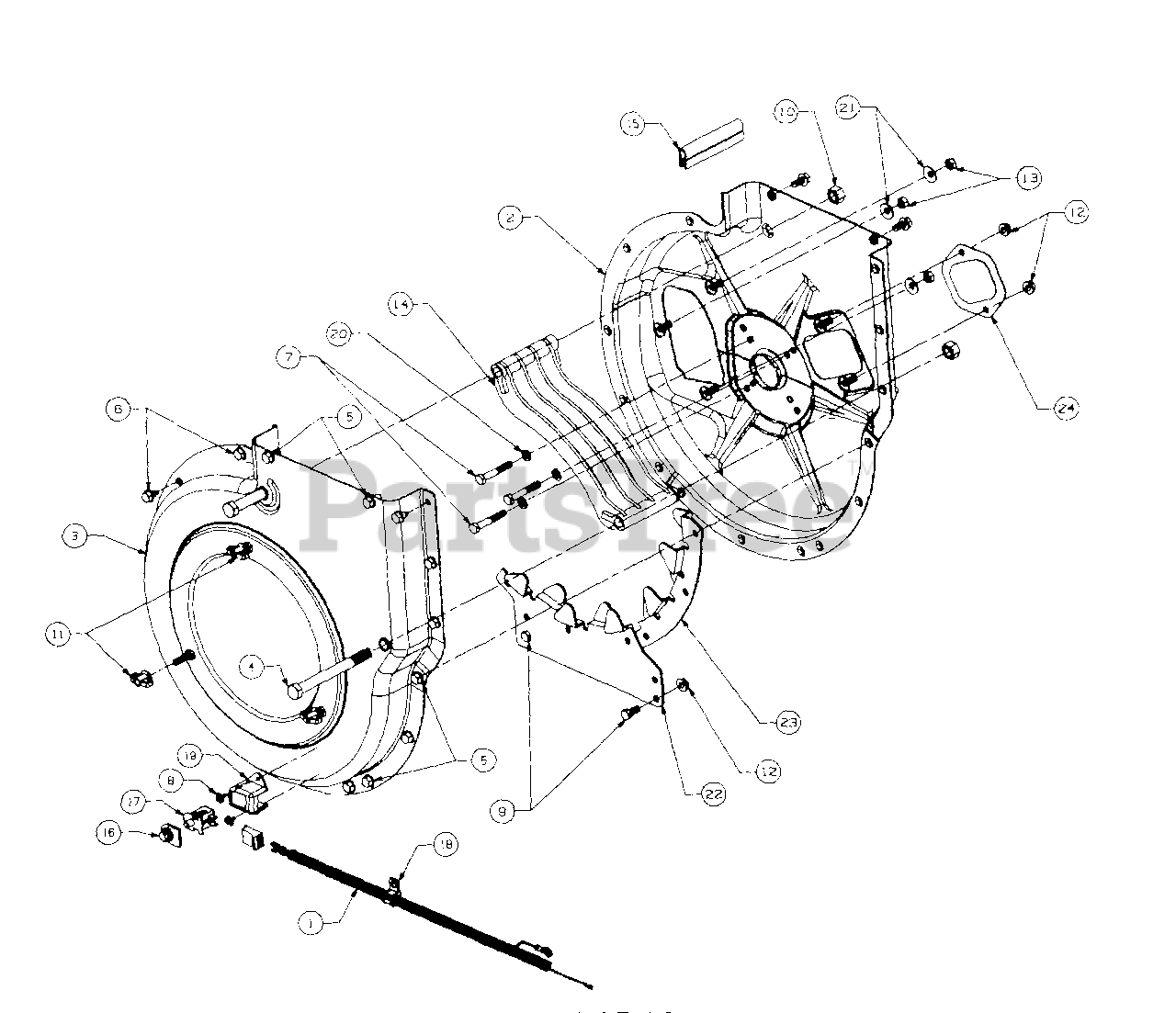

247.799640 (246-315D099) - Craftsman Shredder Vacuum (1996) (Sears) Chipper Assembly Parts Diagram

Chipper Assembly Parts Diagram
