247.799630 (247-333C099) - Craftsman Shredder Vacuum (1997) (Sears) Wheels Parts Diagram

Shredder Vacuum

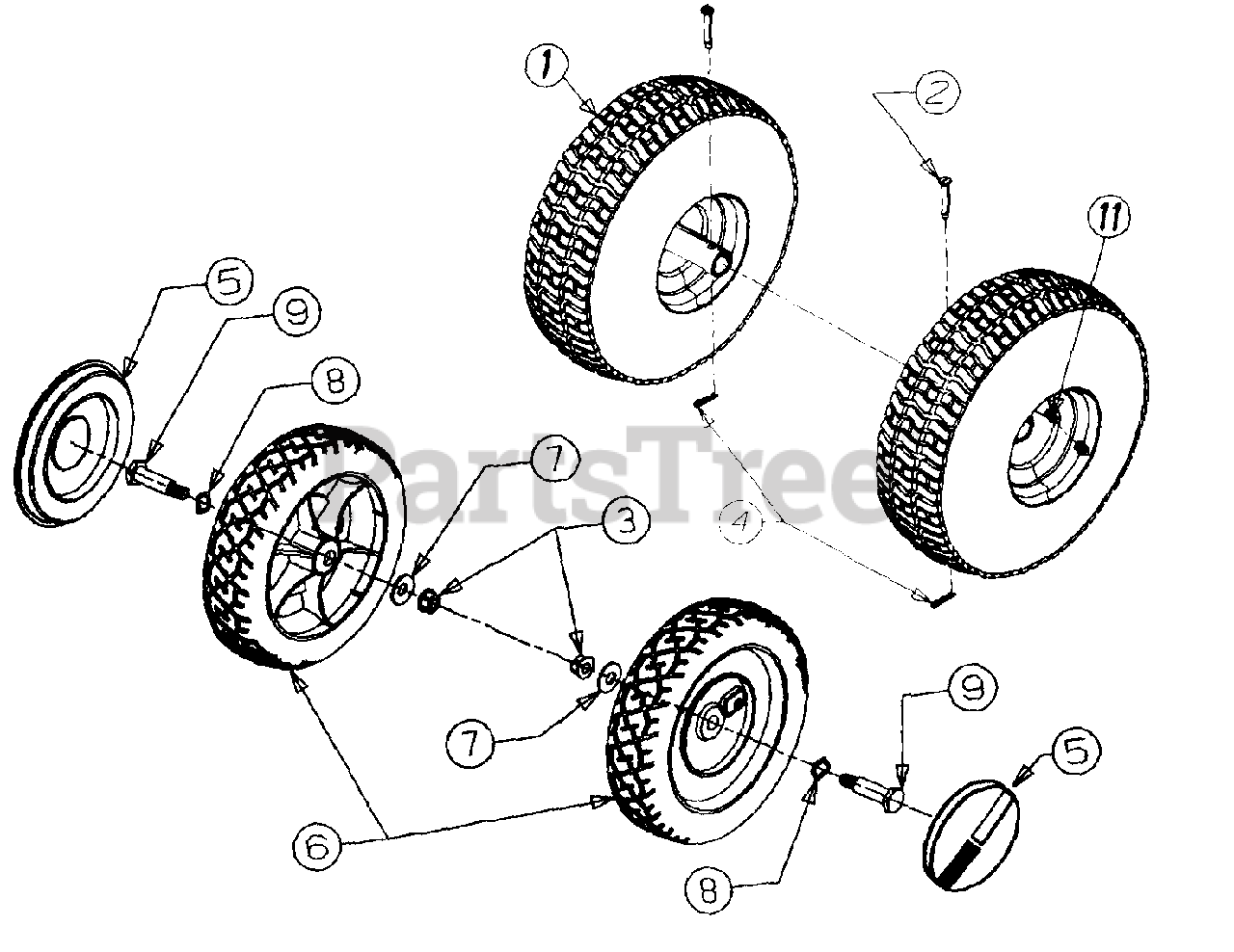

Wheels Parts Diagram

  • Title

1

MTD 634-0118

WHEEL ASSY COMPLETE 4" X 10"

Variations

MTD 634-0118-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

$

$

MTD 634-0101

RIM ASSY COMPLETE

Variations

MTD 634-0101-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0101-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0101-0662

Rim Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0101-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 734-0210

TIRE PNEUMATIC 4" X 10"
(Superseded to 734-1598-0901)

$119.99

$

Usually ships in 3-6 days

0

2

MTD 711-1017

PIN-CLEVIS

$7.49

$

In Stock, only 1 left!

0

3

MTD 712-0431

NUT-HEX FLANGE
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

4

MTD 714-0104

PIN-COTTER

$4.49

$

In Stock, Qty 20+

0

5

MTD 720-0249

HUB CAP
(Superseded to 920-0249)

$

$

Not available

6

MTD 734-1513B

WHEEL 2" X 8"
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

7

MTD 736-0105

WASHER-BELL

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0232

WASHER-WAVE

$4.99

$

In Stock, Qty 12

0

9

MTD 738-0213

SCREW-SHOULDER

$7.99

$

In Stock, only 2 left!

0

?10

MTD 734-0255

VALVE STEM
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

11

UNKNOWN

$

$

Not available
