247.799630 (247-333C099) - Craftsman Shredder Vacuum (1997) (Sears) Nozzle Bag Parts Diagram

Shredder Vacuum

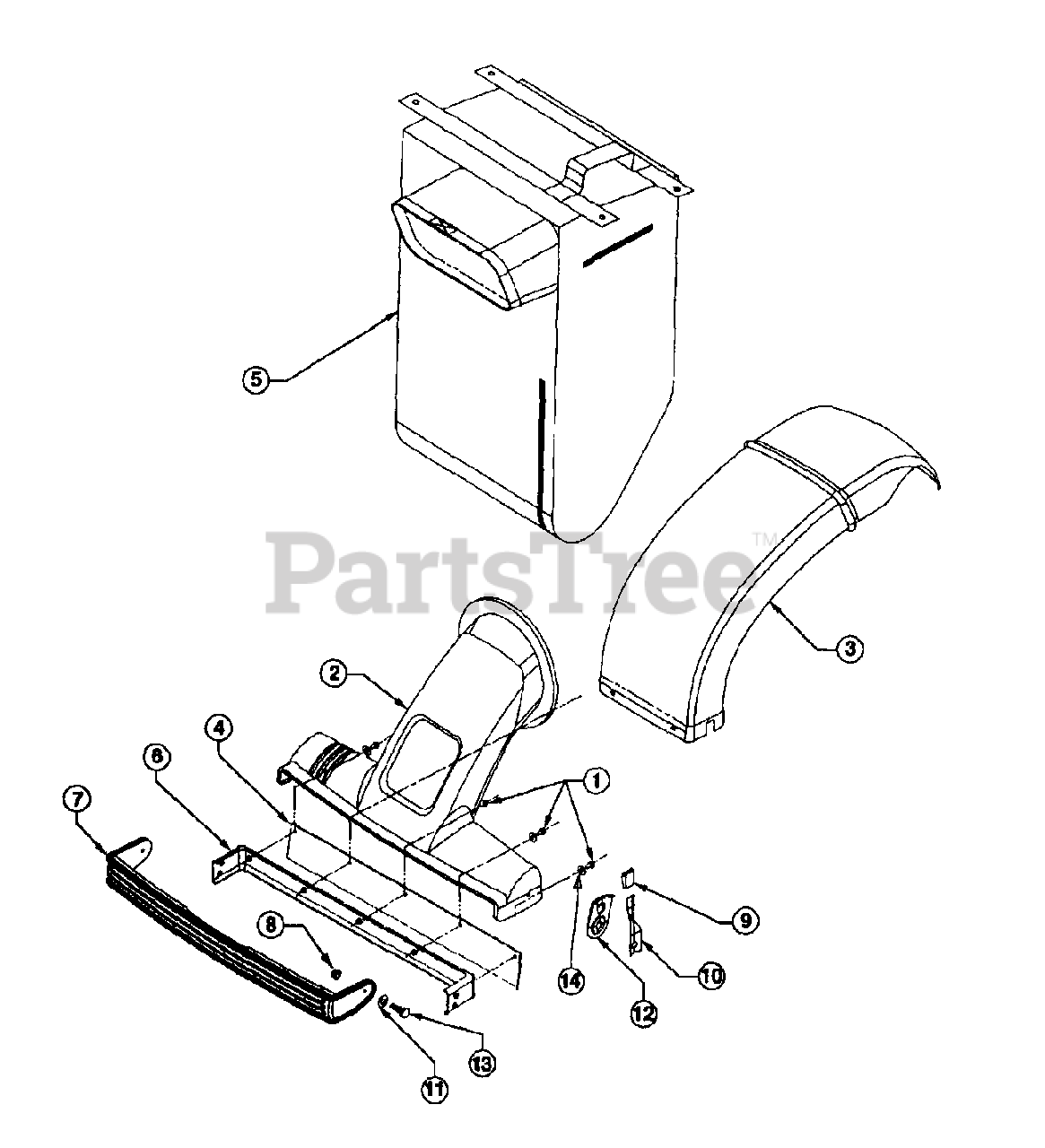

Nozzle Bag Parts Diagram

  • Title

1

MTD 710-0642

HEX WASHER SCREW

$4.49

$

In Stock, Qty 20+

0

2

MTD 631-0043

NOZZLE ASSEMBLY

$

$

Not available

3

MTD 731-1608

CHUTE

$

$

Not available

4

MTD 735-0247

NOZZLE FLAP

$32.99

$

Usually ships in 3-6 days

0

5

MTD 764-0484

VACUUM BAG

$

$

Not available

6

MTD 781-0666

NOZZLE STABILIZER BRKT.

Variations

MTD 781-0666-0483

No Longer Available BRKT. NOZZ - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0666-0637

No Longer Available BRKT. NOZZ - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 631-0033

NOZZLE DOOR ASSY

$

$

Not available

8

MTD 712-0431

FLANG. LOCK NUT
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

MTD 720-0190

HEIGHT ADJ. KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

10

MTD 732-0754

SPRING LEVER

$9.99

$

Usually ships in 3-6 days

0

11

MTD 736-3084

FL-WASHER

$4.99

$

In Stock, Qty 17

0

12

MTD 781-0637

NOZZLE DOOR BRKT.

$

$

Not available

13

MTD 738-0913

SHOULDER SCREW

$12.99

$

In Stock, only 1 left!

0

14

MTD 736-0173

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0
