247.799630 (247-333C099) - Craftsman Shredder Vacuum (1997) (Sears) Belt & Idler Parts Diagram

Shredder Vacuum

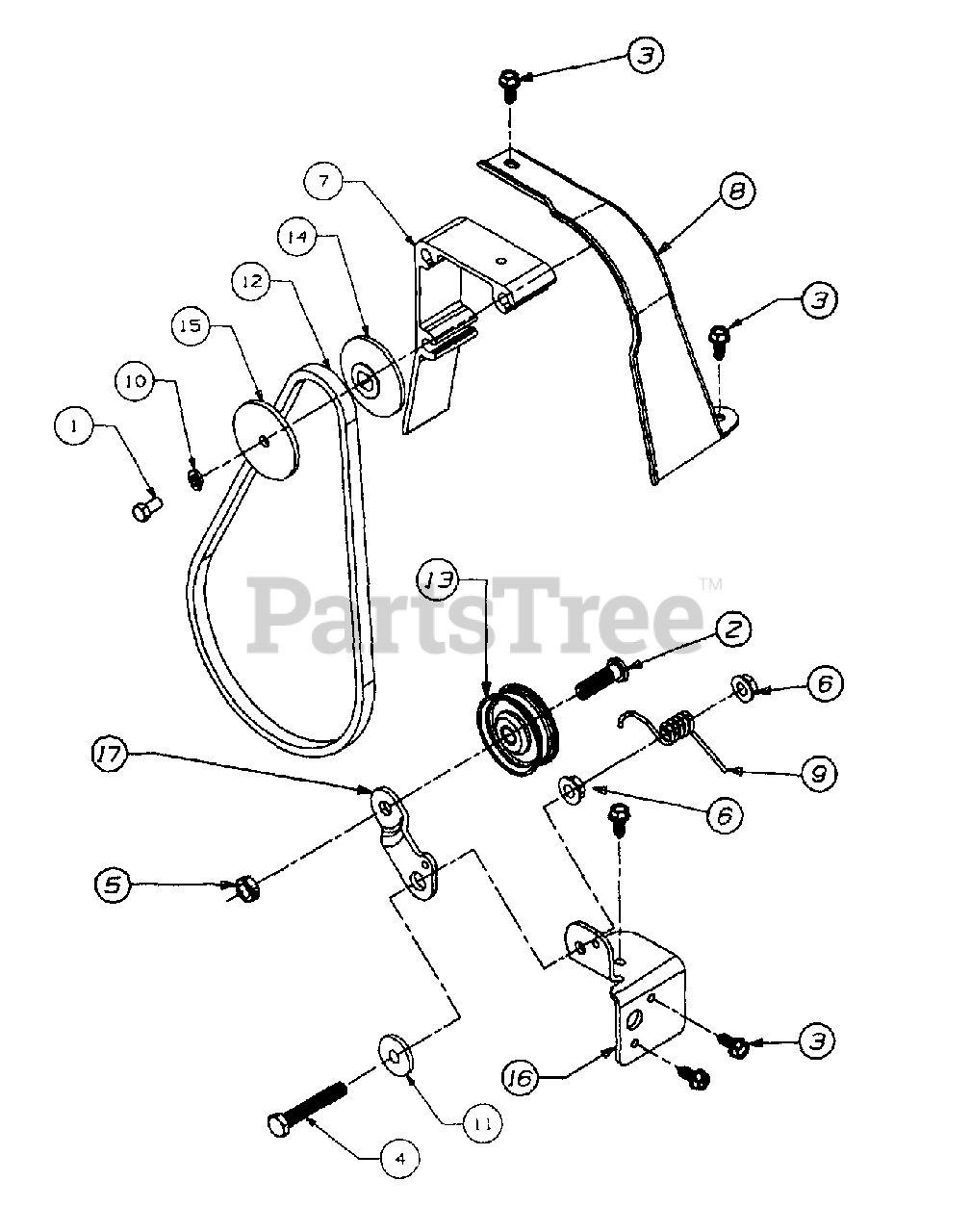

Belt & Idler Parts Diagram

  • Title

1

MTD 710-0230

SCREW-HEX

$

$

Not available

2

MTD 710-0723

SCREW-HEX

$4.99

$

In Stock, only 3 left!

0

3

MTD 710-0896

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0646

SCREW-HEX
(Superseded to 710-04039)

$4.99

$

In Stock, only 4 left!

0

5

MTD 712-0266

NUT-HEX LOCK
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-3004A

NUT-HEX LOCK FL

$3.99

$

In Stock, Qty 20+

0

7

MTD 719-0330A

ADAPTER-MOUNTING

$

$

Not available

8

MTD 731-1646

COVER-BELT

$14.99

$

Usually ships in 3-6 days

0

9

MTD 732-0745

SPRING-TORSION

$

$

Not available

10

MTD 736-0329

WASHER-LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

11

MTD 748-0234

SHOULDER SPACER

$4.49

$

In Stock, Qty 20+

0

12

MTD 754-0450

V-BELT

$

$

Not available

13

MTD 756-0313

IDLER-FLAT

$26.99

$

In Stock, only 3 left!

0

14

MTD 756-0985

PULLEY

$

$

Not available

15

MTD 756-0984

PULLEY

$

$

Not available

16

MTD 781-0667

BRACKET-IDLER PIVOT

Variations

MTD 781-0667-0637

No Longer Available BRKT. IDLE - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 781-0614

BRACKET-IDLER

$

$

Not available
