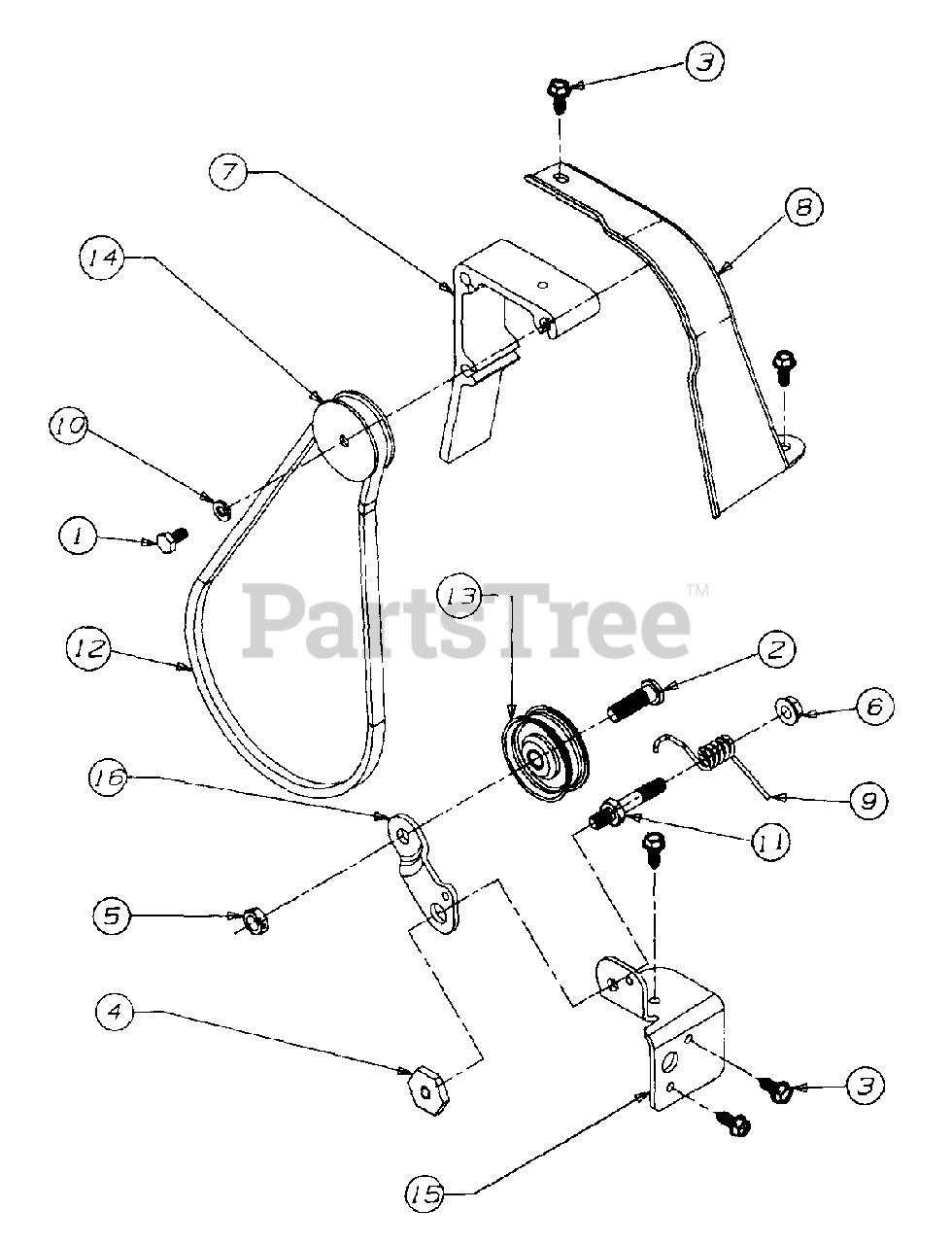

247.799630 (246-331D099) - Craftsman Shredder Vacuum (1996) (Sears) Belt and Idler Assembly Parts Diagram

Shredder Vacuum

Belt and Idler Assembly Parts Diagram

  • Title
1

MTD 710-0230

SCREW-HEX

$

$

Not available

2

MTD 710-0723

SCREW-HEX

$4.99

$

In Stock, only 3 left!

0

3

MTD 710-0896

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0758

NUT-HEX SHOULDER
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

5

MTD 712-0266

NUT-HEX LOCK
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

6

MTD 712-3004A

NUT-HEX LOCK FLANGE

$3.99

$

In Stock, Qty 20+

0

7

MTD 719-0330

ADAPTER-MOUNTING
(Superseded to 719-0359)

$31.99

$

Usually ships in 3-6 days

0

8

MTD 731-1584

COVER-BELT

Variations

MTD 731-1584-0637

BELT COVER PLAS. - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 732-0745

SPRING-TORSION

$

$

Not available

10

MTD 736-0329

WASHER-LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

11

MTD 738-0908

BOLT-IDLER

$

$

Not available

12

MTD 754-0256

V BELT
(Superseded to 954-0256)

$47.99

$

In Stock, only 2 left!

0

13

MTD 756-0313

IDLER-FLAT

$26.99

$

In Stock, Qty 5

0

14

MTD 756-0649

PULLEY

$

$

Not available

15

MTD 781-0611

BRACKET-IDLER PIVOT

Variations

MTD 781-0611-0483

No Longer Available BRACKET-ID - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0611-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0611-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 781-0611-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

MTD 781-0611-0648

No Longer Available BRKT-IDLER - TECH GRAY (0648)

$

$

Not available

MTD 781-0611-0650

No Longer Available BRKT-IDLER - RED METALLIC (0650)

$

$

Not available

MTD 781-0611-0662

Bracket, Idler Pivot - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0611-0716

No Longer Available BRACKET-ID - CUB YELLOW-99 (0716)

$

$

Not available

$

$

16

MTD 781-0614

BRACKET-IDLER

$

$

Not available

MTD 788-0637

BLACK

Note: (Color Code)

$

$

Currently unavailable

MTD 788-0662

OYSTER GRAY

Note: (Color Code)

$

$

Currently unavailable
