247.799620 (247-335D099) - Craftsman Shredder Vacuum (1997) (Sears) Fuel Tank Parts Diagram

Shredder Vacuum

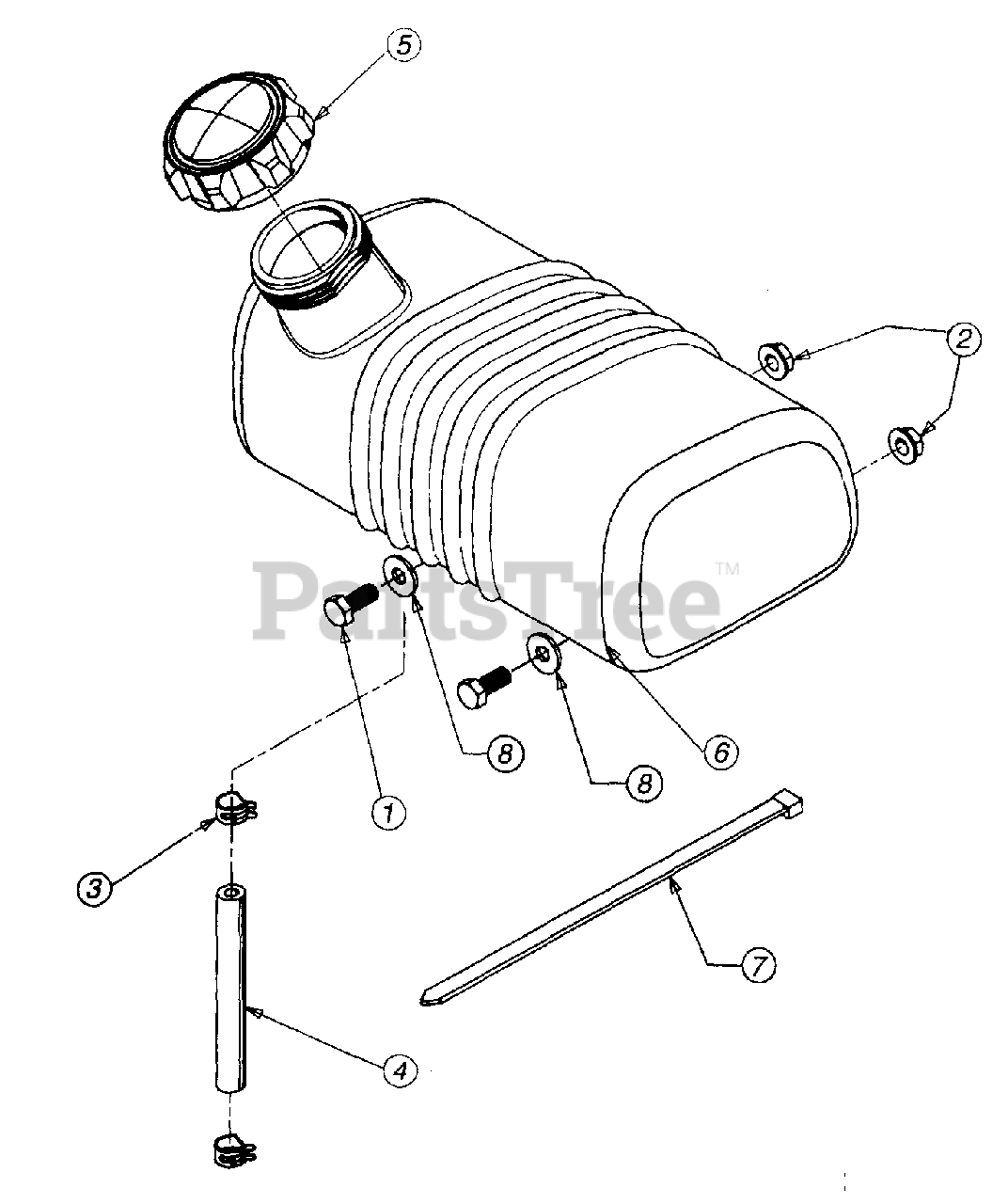

Fuel Tank Parts Diagram

  • Title

1

MTD 710-0258

SCREW-HEX
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

2

MTD 712-3027

NUT-HEX LOCK FLANGE
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

3

MTD 726-0205

CLAMP-HOSE

$3.99

$

In Stock, Qty 18

0

4

MTD 751-0535

HOSE-FUEL LINE 9"

$

$

Currently unavailable

5

MTD 751-0603

CAP-FUEL
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

6

MTD 751-0610

TANK-FUEL 1 GALLON

$

$

Not available

7

MTD 726-0209

CABLE TIE
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

MTD 736-0173

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0
