247.796510 (25B-554G299) - Craftsman Lawn Edger (2012) (Sears) General Assembly Parts Diagram

Lawn Edger

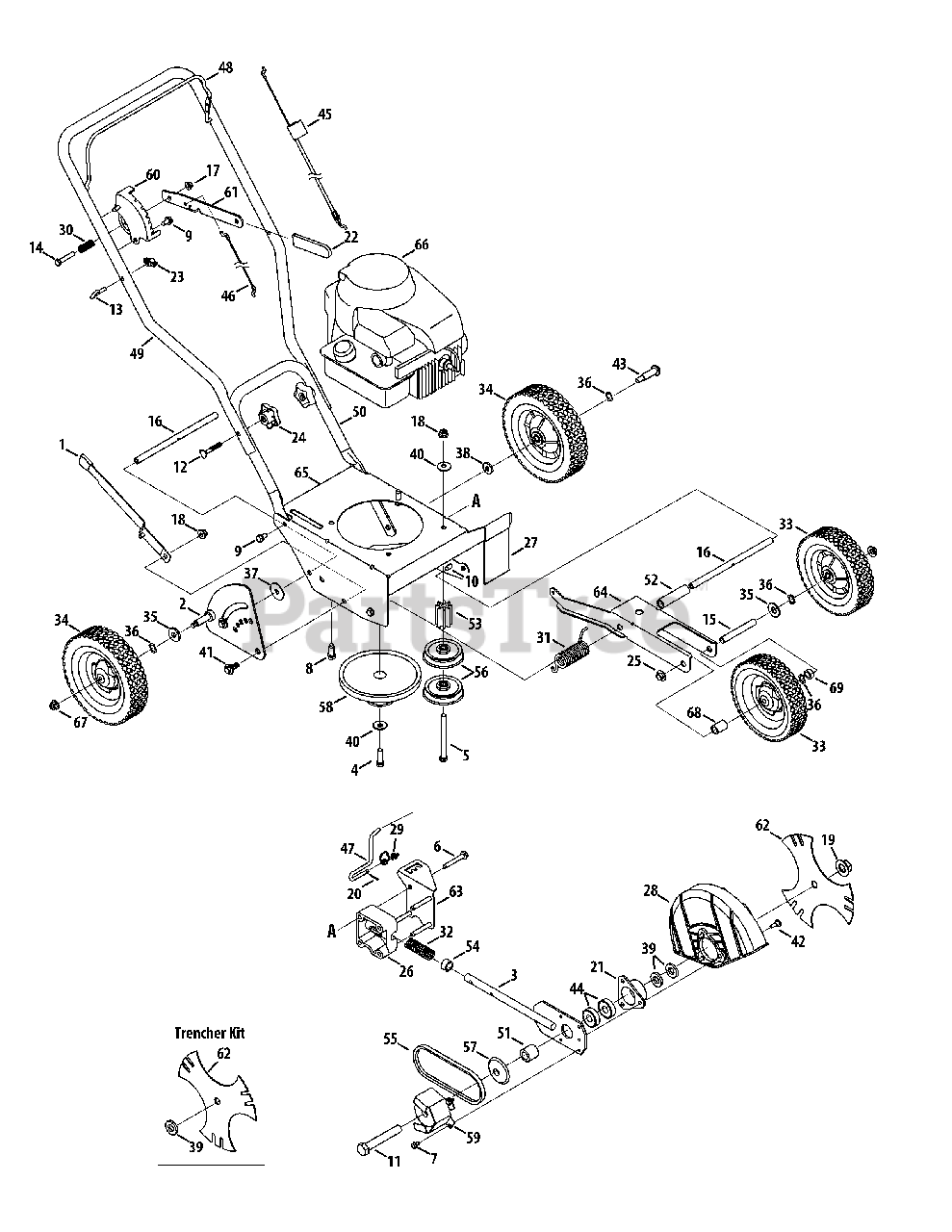

General Assembly Parts Diagram

  • Title

1

MTD 687-02022

Curb Height Adjustment Lever

$70.99

$

Usually ships in 3-6 days

0

2

MTD 687-02585

Curb Height Adjuster Plate

$30.99

$

In Stock, only 1 left!

0

3

MTD 687-02126

Blade Plate Assembly

$56.99

$

Usually ships in 3-6 days

0

4

MTD 710-0191

Screw 3/8-24

$4.99

$

In Stock, Qty 9

0

5

MTD 710-0411

Screw 3/8-16

$8.49

$

In Stock, Qty 17

0

6

MTD 710-04389

Hex Screw, 5/16-18

$6.99

$

In Stock, only 1 left!

0

7

MTD 710-0599

Self-tapping Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0654A

Screw, 3/8-16

$4.49

$

In Stock, only 4 left!

0

9

MTD 710-0726

Hex Screw, 5/16-12

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0870

Hex Screw 5/16-18

$6.49

$

In Stock, only 1 left!

0

11

MTD 710-1143A

Hex Screw, 5/8-18

$11.99

$

In Stock, only 1 left!

0

12

MTD 710-1174

Carriage Bolt, 5/16-18

$7.49

$

In Stock, Qty 20+

0

13

MTD 710-1205

Rope Guide (Eye Bolt)

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-3180

Hex Screw, 5/16-18

$5.49

$

In Stock, Qty 11

0

15

MTD 711-05696

Axle Shaft .50x6.65

$5.99

$

Usually ships in 3-6 days

0

16

MTD 711-04440

Frame Spacer .50x9.25

$29.99

$

Usually ships in 3-6 days

0

17

MTD 712-04063

Lock Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

18

MTD 712-04065

Flange Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

20

MTD 714-3010

Clevis Pin 3/32 x .625

$4.99

$

In Stock, only 1 left!

0

21

MTD 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

22

MTD 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

23

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

24

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

25

MTD 726-0299

Push Cap 1/2" rod

$8.49

$

In Stock, Qty 20+

0

26

MTD 931-04207

Bearing Block

$27.99

$

In Stock, only 1 left!

0

27

MTD 731-05063

Debris Guard

$6.49

$

In Stock, only 1 left!

0

28

MTD 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

29

MTD 732-0188A

Double Torsion Spring

$12.99

$

In Stock, Qty 10

0

30

MTD 932-0369

Compression Spring

$10.99

$

Usually ships in 3-6 days

0

31

MTD 732-04045

Torsion Spring

$15.99

$

Usually ships in 3-6 days

0

32

MTD 932-04169

Compression Spring

$10.99

$

In Stock, only 1 left!

0

33

MTD 734-1264

Wheel 7 x 1.75 T-Tread

$55.99

$

Usually ships in 3-6 days

0

34

MTD 734-1268

Wheel 8 x 1.75 T-Tread

$71.99

$

Usually ships in 3-6 days

0

35

MTD 736-04019

Flat Washer, .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

36

MTD 936-0232

Wave Washer .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

37

MTD 736-0234

Flat Washer, .385 x 1.5 x .075

$6.49

$

Usually ships in 3-6 days

0

38

MTD 736-0258

Flat Washer .385 x 1.0 x .135 †

$4.49

$

Usually ships in 3-6 days

0

39

MTD 936-04088

Flat Washer .635x1.24x.181
(Superseded to 736-04088)

$4.49

$

In Stock, only 2 left!

0

40

MTD 936-0452

Bell Washer,.396 x 1.140
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

41

MTD 738-04149

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

42

MTD 738-0706C

Shoulder Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

43

MTD 738-0929

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 2 left!

0

44

MTD 941-0524A

Bearing, .625 ID x 1.57 OD

$23.99

$

In Stock, Qty 20+

0

45

MTD 746-04035

Control Cable (Briggs & Stratton)
(Superseded to 946-04035)

$20.99

$

In Stock, only 1 left!

0

46

MTD 946-04036

Wheel Adjustment Cable

$18.99

$

In Stock, Qty 7

0

47

MTD 747-04110A

Blade Adjustment Rod

$17.99

$

In Stock, Qty 20+

0

48

MTD 747-0976A-0637

Bail Handle
(Superseded to 747-0976B)

$25.99

$

In Stock, only 1 left!

0

49

MTD 749-04183-0637

Upper Handle
(Superseded to 749-04183A)

$69.99

$

Usually ships in 3-6 days

0

50

MTD 749-04234-0637

Lower Handle
(Superseded to 749-04234)

$50.99

$

In Stock, only 1 left!

0

51

MTD 950-04105

Spacer, .63 x 1.12 x 1.06

$15.99

$

Usually ships in 3-6 days

0

52

MTD 750-04129

Spacer

$4.99

$

Usually ships in 3-6 days

0

53

MTD 950-04142

Pulley Mount Spacer

$14.99

$

Usually ships in 3-6 days

0

54

MTD 750-0547

Spacer, .64 x.88 x .50

$5.99

$

In Stock, only 2 left!

0

55

MTD 954-04032B

Belt

$25.99

$

In Stock, Qty 17

0

56

MTD 756-04148

Flat Idler Pulley, 2.5 OD

$41.99

$

In Stock, only 2 left!

0

57

MTD 956-0449

Sheave

$14.99

$

In Stock, only 2 left!

0

58

MTD 756-1150A

Combination Flywheel Pulley

$163.99

$

Usually ships in 3-6 days

0

59

MTD 781-0427-0637

Belt Guard

$20.99

$

Usually ships in 3-6 days

0

60

MTD 781-0741A

Depth Index Bracket

Variations

MTD 781-0741A-0637

BRKT-INDEX DEPTH - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

61

MTD 781-0742-0637

Depth Index Lever

$39.99

$

Usually ships in 3-6 days

0

62

MTD 781-0748-0637

Tri-Star Blade

$21.99

$

In Stock, Qty 13

0

63

MTD 787-01081A-4044

Bracket Plate

$6.49

$

Usually ships in 3-6 days

0

64

MTD 787-01240-4044

Wheel Bracket

$29.99

$

Usually ships in 3-6 days

0

65

MTD 787-01304-4044

Frame

$79.99

$

Usually ships in 3-6 days

0

66

MTD n/a

Replacement Engine

Note: Order from B&S 10L802-5547-F2

$

$

Currently unavailable

67

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

68

MTD 750-05548

Spacer., .525 x .775 x .93

$3.99

$

Usually ships in 3-6 days

0

69

MTD 750-0664

Spacer., .505ID x .88OD x .440

$6.99

$

In Stock, only 2 left!

0
