247.794510 (24AF561C099) - Craftsman Log Splitter (2002) (Sears) Rewind Starter Parts Diagram

Log Splitter

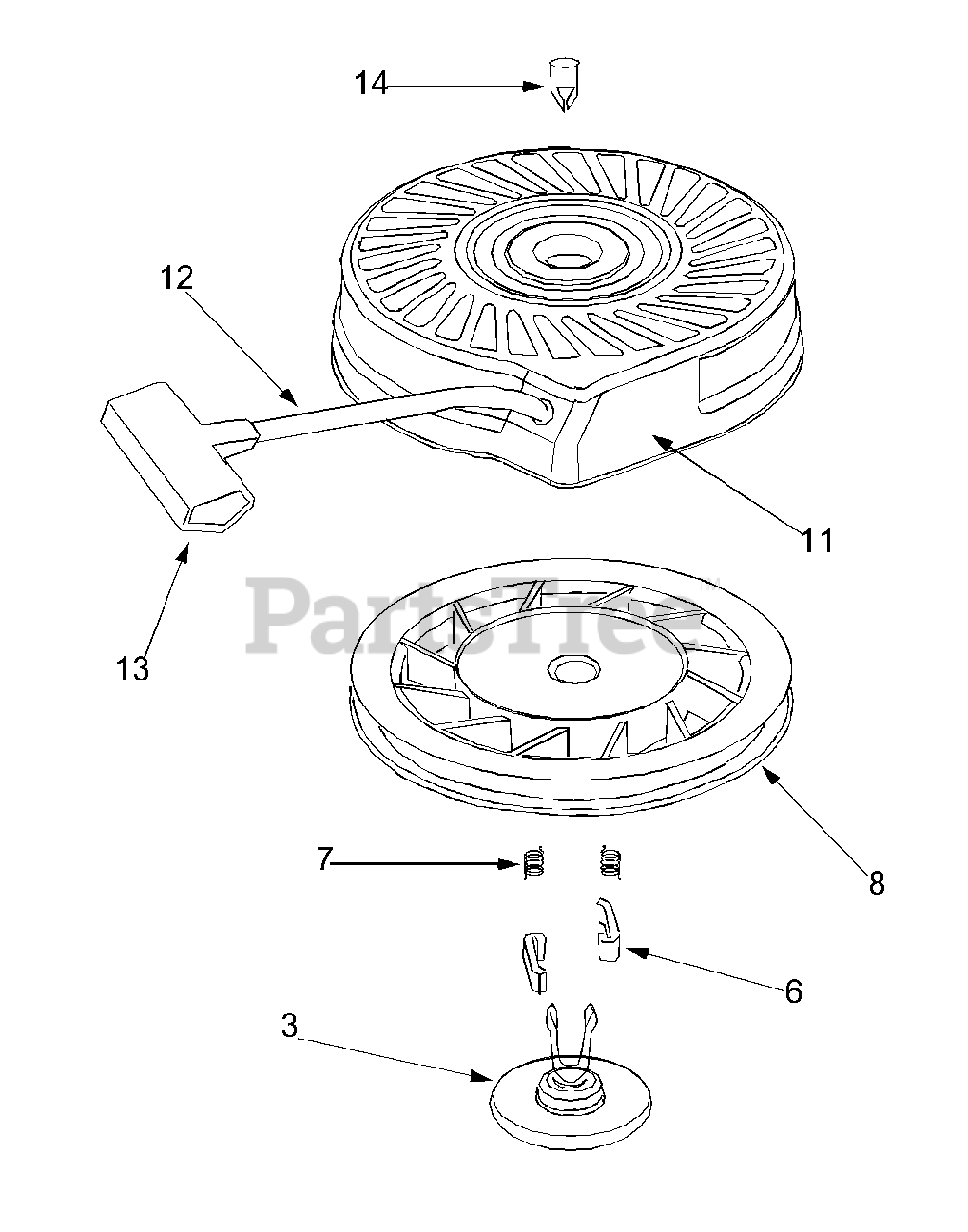

Rewind Starter Parts Diagram

  • Title

Tecumseh 590737

Rewind Starter
(Superseded to 590785)

$41.99

$

In Stock, only 2 left!

0

3

Tecumseh 590740

Retainer

$9.49

$

In Stock, Qty 12

0

6

Tecumseh 590616

Starter Dog

$7.49

$

Usually ships in 3-12 days

0

7

Tecumseh 590617

Dog Spring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590618A

Pulley & Rewind Spring Ass'y

$

$

Not available

11

Tecumseh 590687A

Starter Housing Assembly
(Superseded to 590687B)

$46.99

$

In Stock, only 1 left!

0

12

Tecumseh 590535

Starter Rope

$9.49

$

In Stock, Qty 12

0

13

Tecumseh 590701

Starter Handle

$6.49

$

In Stock, only 1 left!

0

14

Tecumseh 590760

Spring Clip

$4.99

$

In Stock, only 2 left!

0
