247.794510 (24AF561C099) - Craftsman Log Splitter (2002) (Sears) Recoil Starter Parts Diagram

Log Splitter

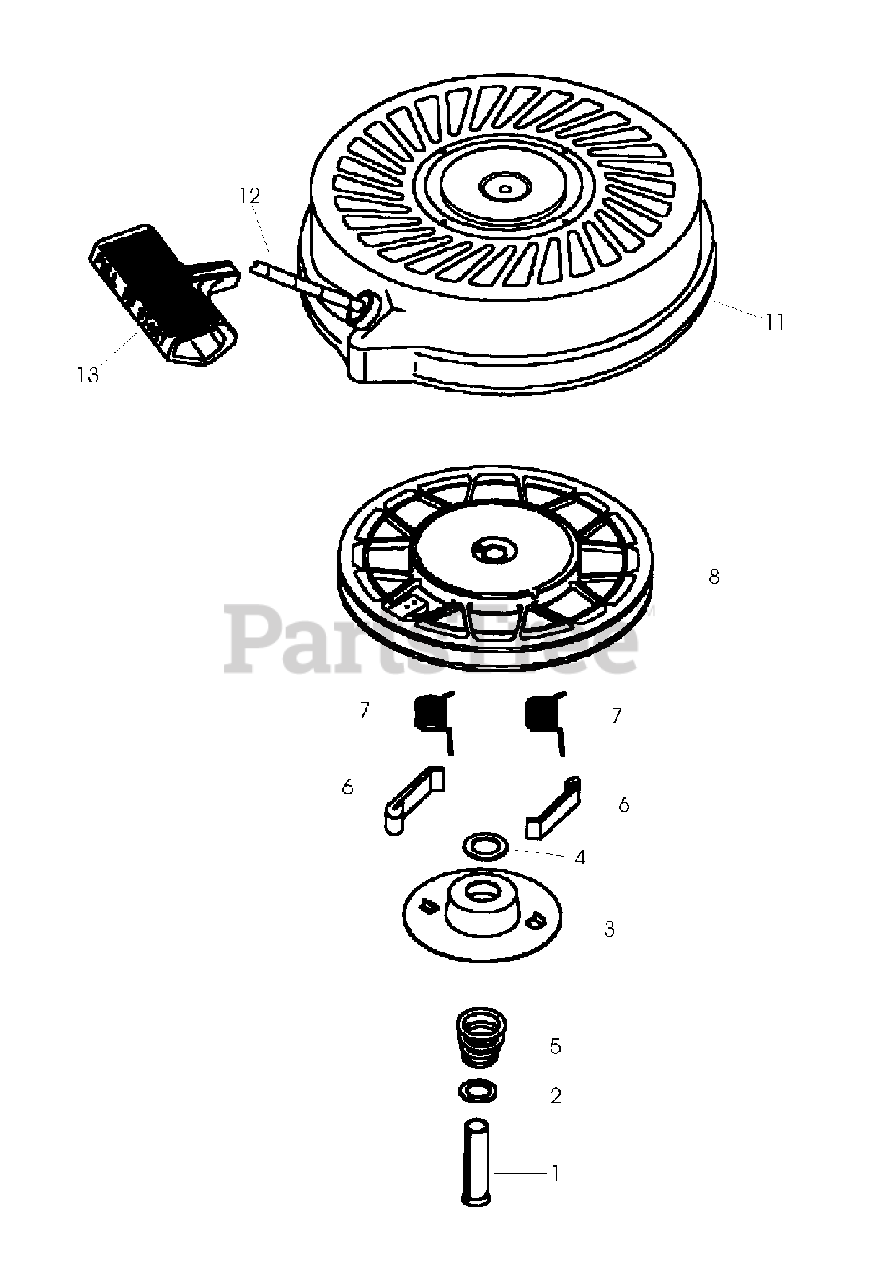

Recoil Starter Parts Diagram

  • Title

Tecumseh 590694

Recoil Starter
(Superseded to 590785)

$41.99

$

In Stock, only 2 left!

0

1

Tecumseh 590599A

Spring Pin

Note: (Inc 4)

$5.49

$

In Stock, only 3 left!

0

2

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 590696

Retainer

$7.49

$

In Stock, only 1 left!

0

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Brake Spring

$3.99

$

In Stock, only 1 left!

0

6

Tecumseh 590698

Starter Dog

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Dog Spring

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590700

Pulley & Rewind Spring Assembly

$26.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590695

Starter Housing Assembly
(Superseded to 590785)

$41.99

$

In Stock, only 2 left!

0

12

Tecumseh 590535

Starter Rope

$9.49

$

In Stock, Qty 12

0

13

Tecumseh 590701

Starter Handle

$6.49

$

In Stock, only 1 left!

0
