247.794510 (24AF561C099) - Craftsman Log Splitter (2002) (Sears) Carburetor Parts Diagram

Log Splitter

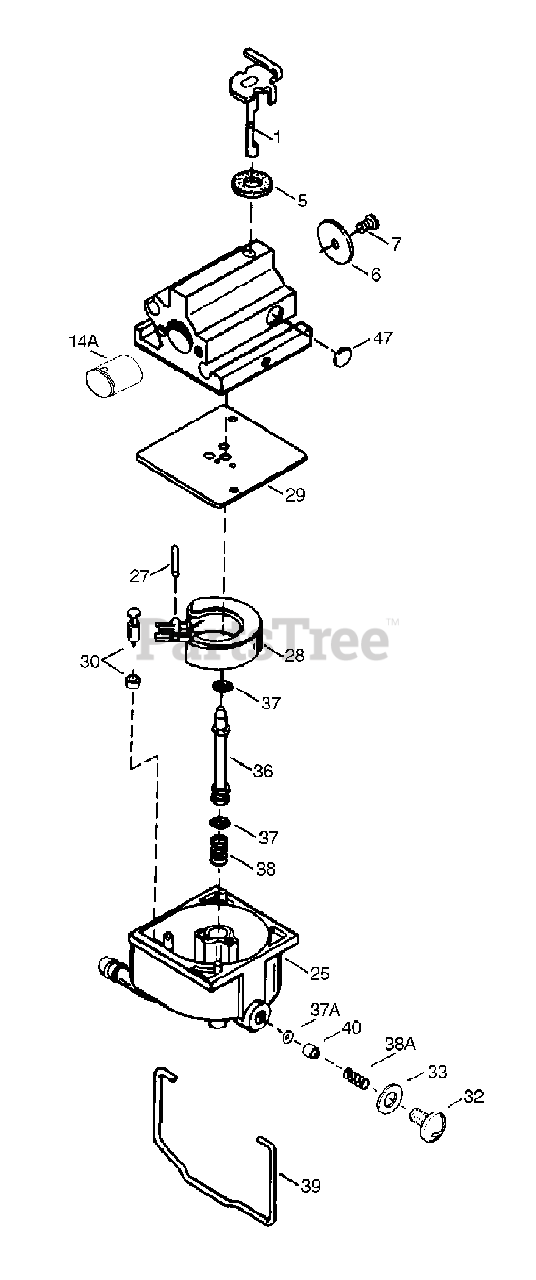

Carburetor Parts Diagram

  • Title

Tecumseh 640020

Carburetor
(Superseded to 640020B)

$109.99

$

In Stock, only 1 left!

0

1

Tecumseh 632539

Throttle Shaft & Lever Assembly

$16.99

$

Usually ships in 3-12 days

0

5

Tecumseh 632593

Dust Seal

$1.99

$

Usually ships in 3-12 days

0

6

Tecumseh 632541

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Throttle Shutter Screw

$1.49

$

In Stock, Qty 16

0

14A

Tecumseh 632773

Venturi

$1.99

$

In Stock, only 1 left!

0

25

Tecumseh 632675

Float Bowl
(Superseded to 632675B)

$23.99

$

Usually ships in 3-12 days

0

27

Tecumseh 632544

Float Shaft
(Superseded to 632544A)

$3.99

$

In Stock, only 1 left!

0

28

Tecumseh 632543

Float

$9.49

$

Usually ships in 3-12 days

0

29

Tecumseh 632548

Float Bowl to Body Gasket

$6.99

$

In Stock, only 3 left!

0

30

Tecumseh 632709

Inlet Needle & Seat

$6.99

$

In Stock, only 1 left!

0

32

Tecumseh 640040

Bowl Drain Screw

$1.99

$

Usually ships in 3-12 days

0

33

Tecumseh 27110A

Bowl Drain Washer

$2.49

$

Usually ships in 3-12 days

0

36

Tecumseh 640022

Main Nozzle Tube

$1.49

$

In Stock, only 2 left!

0

37

Tecumseh 632547

"O" Ring

$4.49

$

In Stock, Qty 20+

0

37A

UNKNOWN

$

$

Not available

38

Tecumseh 632545

Main Nozzle Tube Spring

$1.49

$

In Stock, Qty 5

0

38A

UNKNOWN

$

$

Not available

39

Tecumseh 632549

Float Bowl Retainer

$1.99

$

In Stock, only 1 left!

0

40

Tecumseh 640021

Main Fuel Jet

$1.99

$

Usually ships in 3-12 days

0

47

Tecumseh 632554

Idle Mixture Well Welch Plug

$1.99

$

In Stock, only 1 left!

0
