247.794510 (24AA561C099) - Craftsman Log Splitter (1998) (Sears) 6.5 H.P. Log Splitter Parts Diagram

Log Splitter

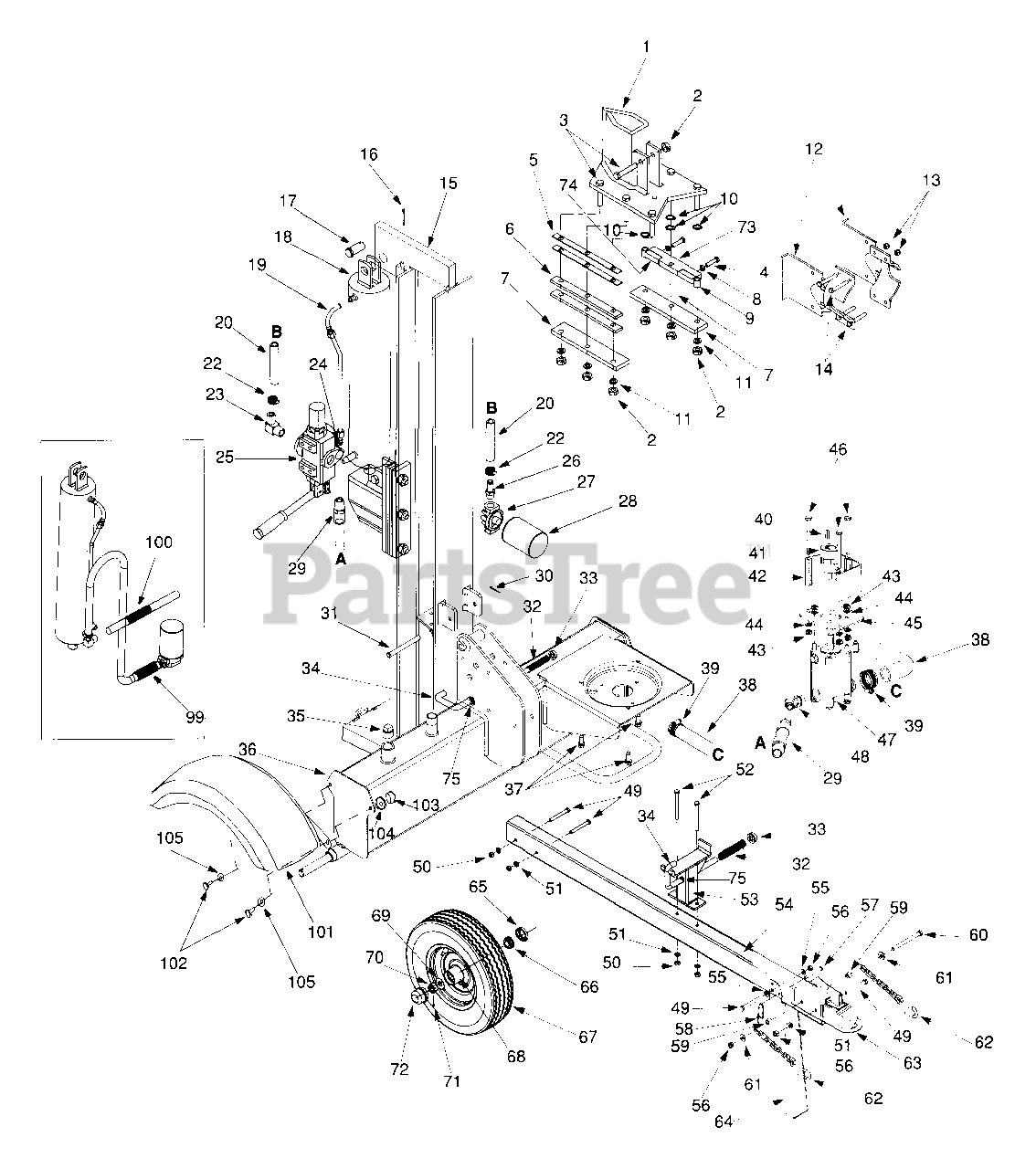

6.5 H.P. Log Splitter Parts Diagram

  • Title

1

MTD 781-0323B

Wedge Asm
(Superseded to 753-04120)

Variations

MTD 781-0323B-0483

Wedge Assembly Replacement Kit - CHARCOAL GRAY (0483)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0629

Wedge Assembly Replacement Kit - SILVER FLAKE (0629)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0637

Wedge Assembly Replacement Kit - POWDER BLACK (0637)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0638

Wedge Assembly Replacement Kit - MTD/TROY-BILT RED (0638)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0648

Wedge Assembly Replacement Kit - TECH GRAY (0648)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0662

Wedge Assembly Replacement Kit - OYSTER GRAY (0662)

$342.99

$

Usually ships in 3-6 days

0

MTD 781-0323B-0716

Wedge Assembly Replacement Kit - CUB YELLOW-99 (0716)

$342.99

$

Usually ships in 3-6 days

0

$342.99

$

Usually ships in 3-6 days

0

2

MTD 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

3

MTD 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

5

MTD 781-0352A

Adjustable Gib Shim
(Superseded to 781-0352A-0637)

Variations

MTD 781-0352A-0483

Adjustable Gib Shim - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0352A-0498

Adjustable Gib Shim - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0352A-0637

Adjustable Gib Shim - POWDER BLACK (0637)

$

$

Not available

MTD 781-0352A-0638

Adjustable Gib Shim - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0352A-0662

Adjustable Gib Shim - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0352A-0692

Adjustable Gib Shim - AGWAY BLUE (0692)

$

$

Not available

MTD 781-0352A-0716

Adjustable Gib Shim - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

MTD 781-0350A

Fixed Gib

Variations

MTD 781-0350A-0483

Fixed Side Gib - CHARCOAL GRAY (0483)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0498

Fixed Side Gib - OLD CUB YELLOW (0498)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0637

Fixed Side Gib - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0638

Fixed Side Gib - MTD/TROY-BILT RED (0638)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0662

Fixed Side Gib - OYSTER GRAY (0662)

$30.99

$

In Stock, Qty 8

0

MTD 781-0350A-0665

Fixed Side Gib - YARDMAN GREEN (0665)

$30.99

$

In Stock, Qty 8

0

$28.99

$

Usually ships in 3-6 days

0

7

MTD 781-0537

Back Bracket

Variations

MTD 781-0537-0483

Pusher Back Plate, Powder Black - CHARCOAL GRAY (0483)

$44.99

$

In Stock, Qty 7

0

MTD 781-0537-0637

Pusher Back Plate, Powder Black - POWDER BLACK (0637)

$44.99

$

In Stock, Qty 7

0

MTD 781-0537-0638

Pusher Back Plate - MTD/TROY-BILT RED (0638)

$44.99

$

Usually ships in 3-6 days

0

MTD 781-0537-0498

PUSHER BACK PLATE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0537-0716

PLATE-PUSHER BACK - CUB YELLOW-99 (0716)

$

$

Not available

MTD 781-0537-0662

PLATE-PUSHER BACK - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0537-0674

PLATE-PUSHER BACK - YARDMAN YELLOW (0674)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

8

MTD 712-3001

Hex Jam Nut 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

9

MTD 750-0750

Spacer
(Superseded to 950-0750)

$

$

Not available

10

MTD 736-0192

Flat Washer .531 x .93 x .090

$4.49

$

In Stock, Qty 18

0

11

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

12

MTD 781-0168A

Stripper Side

Variations

MTD 781-0168A-0483

Stripper Half - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0168A-0638

Stripper Half - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0168A-0498

No Longer Available STRIPPER H - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0168A-0637

STRIPPER HALF - POWDER BLACK (0637)

$

$

Not available

MTD 781-0168A-0662

STRIPPER HALF - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0168A-0716

No Longer Available STRIPPER H - CUB YELLOW-99 (0716)

$

$

Not available

$102.99

$

Usually ships in 3-6 days

0

13

MTD 712-0130

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

14

MTD 710-0859

Hex Cap Screw 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

15

MTD 681-0126

Beam Asm

Variations

MTD 681-0126-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 714-0211

Cotter Pin

$4.49

$

In Stock, Qty 14

0

17

MTD 711-1135

Clevis Pin

$62.99

$

Usually ships in 3-6 days

0

18

MTD 718-0306

Hydraulic Cylinder
(Superseded to 918-0306)

Variations

MTD 718-0306-0483

CYLINDER-HYD 4.5"D - CHARCOAL GRAY (0483)

$

$

Not available

MTD 718-0306-0498

CYLINDER-HYD 4.5"D - OLD CUB YELLOW (0498)

$

$

Not available

MTD 718-0306-0637

CYLINDER-HYD 4.5"D - POWDER BLACK (0637)

$

$

Not available

MTD 718-0306-0638

CYLINDER-HYD 4.5"D - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 718-0306-0662

CYLINDER-HYD 4.5"D - OYSTER GRAY (0662)

$

$

Not available

MTD 718-0306-0674

CYLINDER-HYD 4.5"D - YARDMAN YELLOW (0674)

$

$

Not available

$

$

19

MTD 727-0471

Hydraulic Tube

$

$

Not available

20

MTD 727-0443

Return Hose 3/4" I.D. x 44" Lg.

$118.99

$

In Stock, only 2 left!

0

22

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

23

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

24

MTD 737-0192

90° Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

25

MTD 718-0481

Control Valve
(Superseded to 918-0481A)

Variations

MTD 718-0481-0498

Logsplitter Valve - OLD CUB YELLOW (0498)

$383.99

$

In Stock, only 2 left!

0

MTD 718-0481-0637

Logsplitter Valve - POWDER BLACK (0637)

$383.99

$

In Stock, only 2 left!

0

$383.99

$

In Stock, only 2 left!

0

26

MTD 737-0235

3/4" Hose Adapter

$23.99

$

In Stock, only 2 left!

0

27

MTD 737-0306

Filter Housing
(Superseded to 681-0179)

$

$

Not available

28

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

29

MTD 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

30

MTD 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-0805

Hinge Pin 1/2 x 4.8" Lg.

$

$

Not available

32

MTD 732-0583

Comp. Spring 4" Lg.

$12.99

$

In Stock, Qty 19

0

33

MTD 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

34

MTD 781-0690

Locking Rod

$35.99

$

In Stock, only 1 left!

0

35

MTD 737-0236

Pipe Plug
(Superseded to 737-0348A)

$23.99

$

In Stock, only 1 left!

0

36

MTD 681-0092A

Frame Asm

Variations

MTD 681-0092A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

38

MTD 735-0256

Suction Hose

$

$

Not available

39

MTD 726-0174

Hose Clamp

$9.99

$

Usually ships in 3-6 days

0

40

MTD 714-0122

Sq.-Key 3/16" x .75"

$3.99

$

In Stock, Qty 20+

0

41

MTD 718-0250A

Flexible Coupling
(Superseded to 918-0250A)

$241.99

$

Usually ships in 3-6 days

0

42

MTD 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

43

MTD 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

44

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 781-0097

Rear Coupling Support Bracket
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 3 left!

0

$69.99

$

In Stock, only 3 left!

0

46

MTD 710-1338

Hex Screw 5/16-24 x 3.25

$

$

Not available

47

MTD 718-0476

Gear Pump (11 GPM)
(Superseded to 753-05194)

$1509.99

$

In Stock, only 1 left!

0

48

MTD 737-0329

45 Degree Elbow

$

$

Not available

49

MTD 710-0521

Hex Bolt 3/8-16 x 3" Lg.

$5.49

$

In Stock, Qty 11

0

50

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

51

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

52

MTD 710-0411

Hex Bolt 3/8-16 x 4" Lg.

$8.49

$

In Stock, Qty 17

0

53

MTD 781-0398

Support Beam Asm

Variations

MTD 781-0398-0638

SUPPORT ASSY-BEAM - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 1 left!

0

MTD 781-0398-0637

SUPPORT ASSY-BEAM - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

MTD 781-0398-0483

SUPPORT ASSY-BEAM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0398-0498

No Longer Available SUPPORT ASSY-BEAM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0398-0648

SUPPORT ASSY-BEAM - TECH GRAY (0648)

$

$

Not available

MTD 781-0398-0665

SUPPORT ASSY-BEAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0398-0716

SUPPORT ASM-BEAM - CUB YELLOW-99 (0716)

$

$

Not available

$103.99

$

Usually ships in 3-6 days

0

54

MTD 781-0680A

Tube
(Superseded to 781-0680B)

Variations

MTD 781-0680A-0498

TONGUE TUBE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0680A-0637

TUBE-TONGUE - POWDER BLACK (0637)

$

$

Not available

MTD 781-0680A-0638

TUBE-TONGUE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0680A-0648

TUBE-TONGUE - TECH GRAY (0648)

$

$

Not available

MTD 781-0680A-0650

TUBE-TONGUE - RED METALLIC (0650)

$

$

Not available

MTD 781-0680A-0665

TUBE-TONGUE - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0680A-0483

TUBE-TONGUE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0680A-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0680A-0674

TUBE-TONGUE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0680A-0689

TUBE-TONGUE - POLO GREEN (0689)

$

$

Not available

MTD 781-0680A-0716

TONGUE TUBE - CUB YELLOW-99 (0716)

$

$

Not available

$192.99

$

Usually ships in 3-6 days

0

55

MTD 736-0185

Flat Washer 3/8

$3.99

$

In Stock, Qty 20+

0

56

MTD 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

57

MTD 711-0813

Clevis Pin 5/16 x 2.5" Lg.
(Superseded to 911-0813)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

59

MTD 750-0497

Spacer 3/8" I.D. x .625" O.D.

$10.99

$

Usually ships in 3-6 days

0

60

MTD 710-0944

Hex Bolt 3/8-16 x 4" Lg. (Grd 5)

$10.99

$

In Stock, Qty 12

0

61

MTD 736-0262

Fl-Wash. 3/8" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 10

0

62

MTD 713-0433

Chain - Tow Hitch
(Superseded to 713-0433A)

$44.99

$

In Stock, only 1 left!

0

63

MTD 727-0311

Hitch Coupler

$

$

Not available

64

MTD 781-0162

Jack Stand

Variations

MTD 781-0162-0483

STAND-JACK - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0162-0637

STAND-JACK - POWDER BLACK (0637)

$

$

Not available

MTD 781-0162-0638

STAND-JACK - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0162-0648

STAND-JACK - TECH GRAY (0648)

$

$

Not available

MTD 781-0162-0674

STAND-JACK - YARDMAN YELLOW (0674)

$

$

Not available

MTD 781-0162-0716

STAND-JACK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

65

MTD 721-0168

Bearing Seal Only
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 18

0

66

MTD 741-0987

Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

67

MTD 634-0186

Wheel Asm Comp. - Gray

$363.99

$

Usually ships in 3-6 days

0

MTD 734-0872

Tire 16 x 4.8

$169.99

$

Usually ships in 3-6 days

0

MTD 634-0188

Rim Asm - Gray

$175.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

68

MTD 741-0988

Bearing Cup

$

$

Currently unavailable

69

MTD 736-0351

Fl-Wash..76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

70

MTD 712-0359

Slotted Nut 3/4-16 Thd.

$11.99

$

In Stock, only 1 left!

0

71

MTD 714-0162

Cotter Pin 5/32" Dia. x 1-1/4" Lg.

$4.99

$

In Stock, Qty 20+

0

72

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

73

MTD 781-0356

Floating Gib Plate

Variations

MTD 781-0356-0483

Floating Gib Plate - CHARCOAL GRAY (0483)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0498

Floating Gib Plate - OLD CUB YELLOW (0498)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0637

Floating Gib Plate - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0638

Floating Gib Plate - MTD/TROY-BILT RED (0638)

$131.99

$

Usually ships in 3-6 days

0

MTD 781-0356-0716

Floating Gib Plate - CUB YELLOW-99 (0716)

$131.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

74

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

In Stock, Qty 18

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

In Stock, Qty 18

0

$18.99

$

In Stock, Qty 18

0

75

MTD 736-0116

Flat Washer .635 ID x .93 OD
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

?97

Tecumseh Vertical Shaft Engine

$

$

Not available

99

MTD 781-0526

Hose Guard
(Superseded to 781-0526A)

$53.99

$

Usually ships in 3-6 days

0

100

MTD 781-0538

Hose Guard
(Superseded to 781-0538A)

$35.99

$

Usually ships in 3-6 days

0

101

MTD 681-0138

Fender Assembly
(Superseded to 781-04000)

Variations

MTD 681-0138-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0138-0498

No Longer Available 781-04000- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0138-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 681-0138-0638

FENDER LOGSPLTR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0138-0662

Fender - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0138-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0138-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 681-0138-0716

No Longer Available FENDER LOG - CUB YELLOW-99 (0716)

$

$

Not available

$

$

102

MTD 710-0157

Hex Bolt: 5/16-24 x 0.75" Gr.5

$4.49

$

In Stock, Qty 18

0

103

MTD 712-0123

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

104

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

105

MTD 736-0159

Flat Washer 5/16

$4.49

$

In Stock, Qty 20+

0
