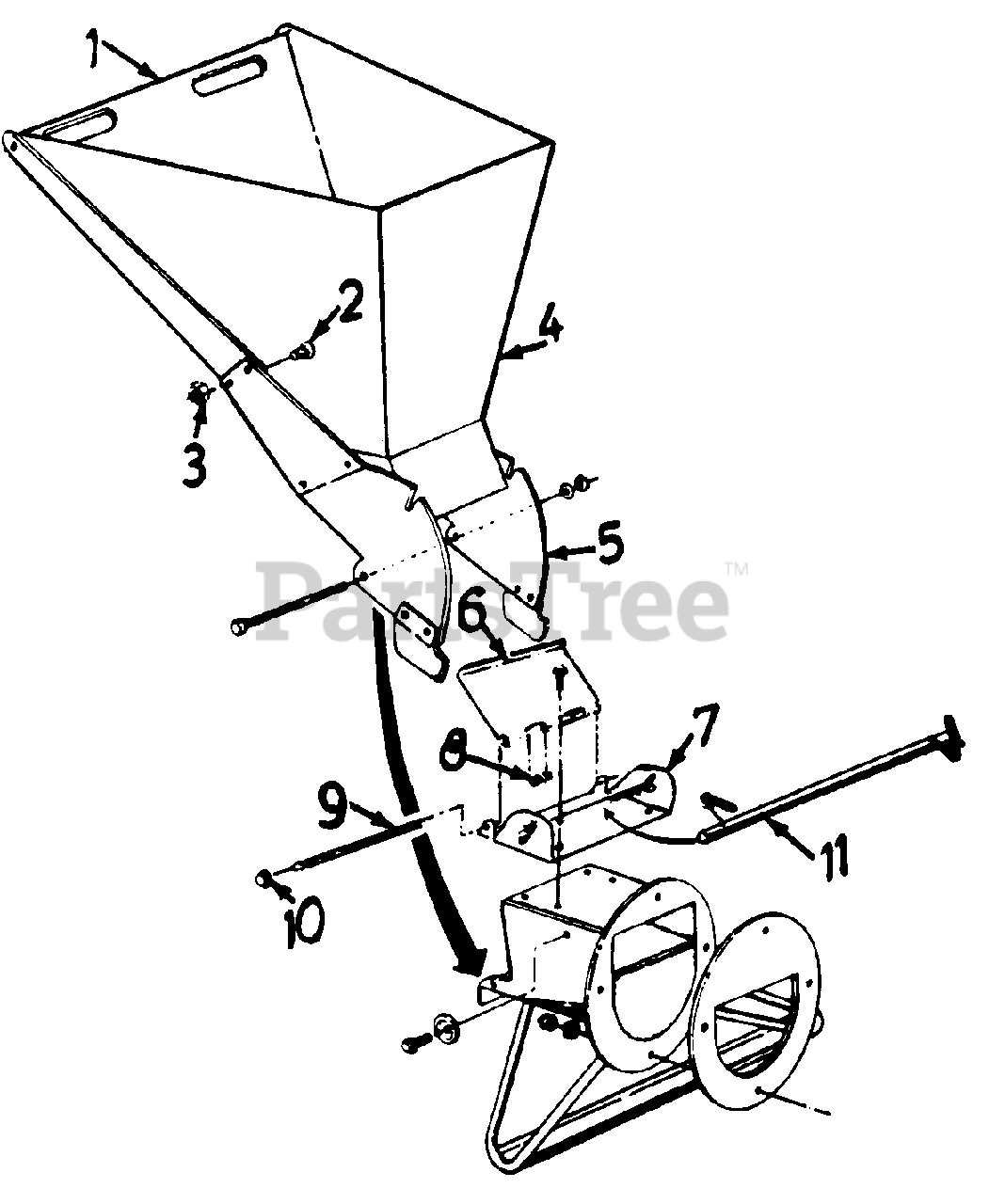

247.780890 (099) - Craftsman Chipper Shredder (1991) (Sears) Parts02 Parts Diagram

Chipper Shredder

Parts02 Parts Diagram

  • Title

1

MTD 11461B

UPPER LEAF RAMP SECTIO

Variations

MTD 11461B-0483

No Longer Available RAMP SECTI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 11461B-0498

No Longer Available RAMP SECTI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 11461B-0629

No Longer Available RAMP SECTI - SILVER FLAKE (0629)

$

$

Not available

MTD 11461B-0638

No Longer Available RAMP SECTI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 11461B-0662

No Longer Available RAMP SECTI - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 710-0286

TRUSS MACHINE SCREW 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

3

MTD 712-0107

HEX L-NUT 1/4-20 THD.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

4

MTD 781-0494

PIVOTHOPPER HOOD

Variations

MTD 781-0494-0483

No Longer Available HOOD-PIVOT - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0494-0498

No Longer Available HOOD-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0494-0499

No Longer Available HOOD-PIVOT - CUB BEIGE (0499)

$

$

Not available

MTD 781-0494-0638

No Longer Available HOOD-PIVOT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0494-0662

No Longer Available HOOD-PIVOT - OYSTER GRAY (0662)

$

$

Not available

$

$

5

MTD 781-0496

LOWER LEAF RAMP SECTIO

$

$

Not available

6

MTD 781-0492

HOPPER - PIVOT DOOR
(Superseded to 781-0492A)

Variations

MTD 781-0492-0483

No Longer Available DOOR-HOPPE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0492-0498

No Longer Available DOOR-HOPPE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0492-0637

No Longer Available DOOR-HOPPER PIVOT - POWDER BLACK (0637)

$

$

Not available

MTD 781-0492-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0492-0648

No Longer Available DOOR-HOPPE - TECH GRAY (0648)

$

$

Not available

MTD 781-0492-0662

No Longer Available DOOR-HOPPE - OYSTER GRAY (0662)

$

$

Not available

$

$

7

MTD 781-0493

HOPPER LOCKOUT BRACKET

Variations

MTD 781-0493-0483

No Longer Available BRACKET-HO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0493-0498

No Longer Available BRACKET-HO - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0493-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

MTD 781-0493-0638

No Longer Available BRACKET-HO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0493-0662

No Longer Available BRACKET-HO - OYSTER GRAY (0662)

$

$

Not available

$

$

8

MTD 732-0629

TORSION SPRING
(Superseded to 932-0629)

$

$

Not available

9

MTD 747-0747

HOPPER DOOR ROD

$

$

Not available

10

MTD 726-0106

CAP SPEED NUT 1/4 ROD

$3.99

$

Usually ships in 3-6 days

0

11

MTD 747-0531A

RELEASE BAR

$

$

Not available
