247.777630 (24A-203D099) - Craftsman Shredder Vacuum (1999) (Sears) Impeller Assembly (Part 2) Parts Diagram

Shredder Vacuum

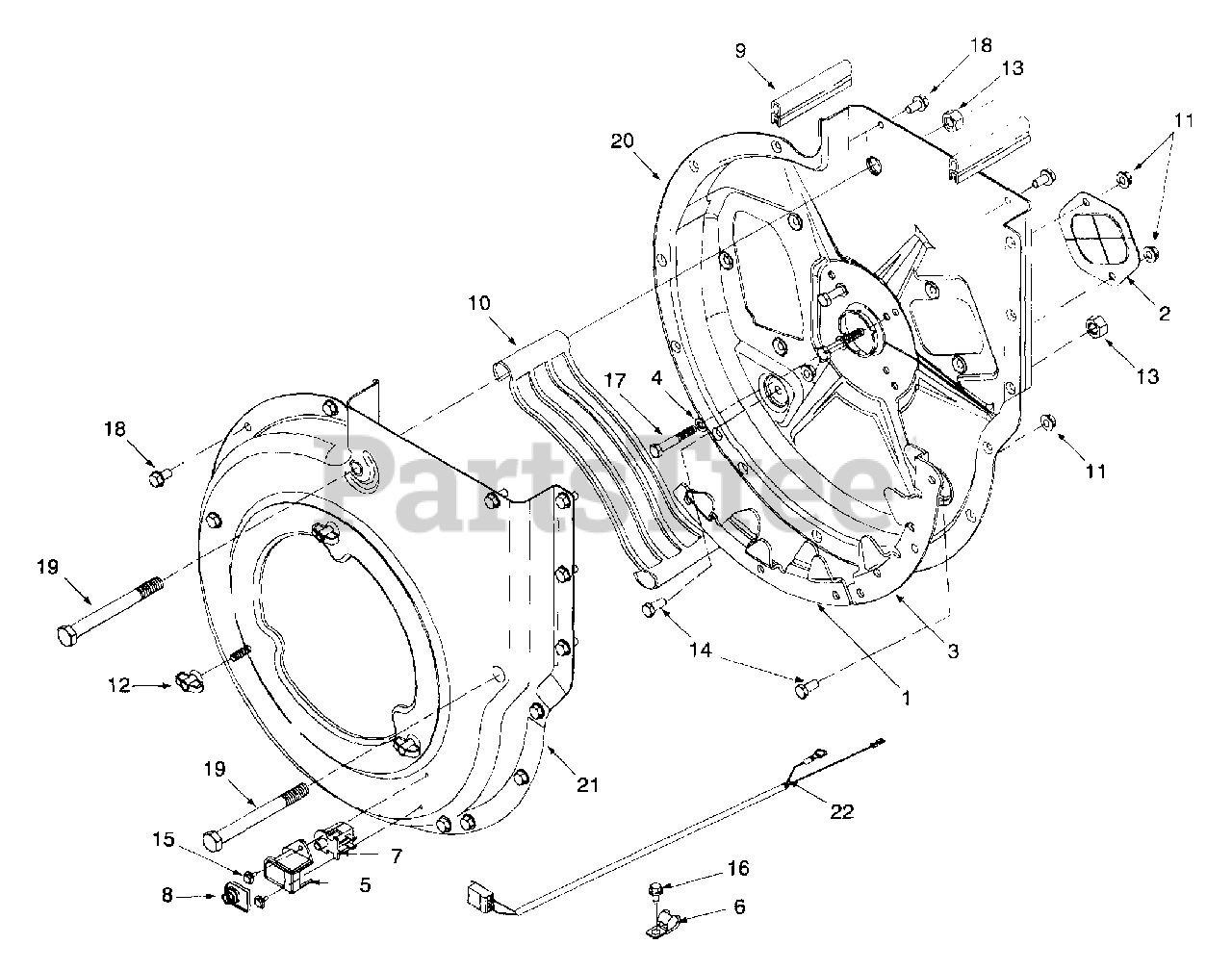

Impeller Assembly (Part 2) Parts Diagram

  • Title

1

MTD 781-0653

Blade, Flail Housing
(Superseded to 781-0653-0637)

Variations

MTD 781-0653-0637

Flail Blade Housing, Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

2

MTD 781-0627

Cover, Chipper Blade

Variations

MTD 781-0627-0483

COVER-CHIPPER-BLAD - CHARCOAL GRAY (0483)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0498

COVER-CHIPPER-BLAD - OLD CUB YELLOW (0498)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0637

COVER-CHIPPER-BLAD - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0638

COVER-CHIPPER-BLAD - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0648

COVER-CHIPPER-BLAD - TECH GRAY (0648)

$17.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0650

COVER-CHIPPER-BLAD - RED METALLIC (0650)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0662

COVER-CHIPPER-BLAD - OYSTER GRAY (0662)

$19.99

$

Usually ships in 3-6 days

0

MTD 781-0627-0716

COVER-CHIPPER-BLAD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

3

MTD 781-0599

Blade, Upper Shredder
(Superseded to 781-0599-0637)

Variations

MTD 781-0599-0637

Shredder Blade, Upper - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

4

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

MTD 731-1613

Cover, Safety Switch Mtg.
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

6

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

7

MTD 725-3166

Switch, Snap Mount
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

8

MTD 725-1700

Cover, Switch
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

9

MTD 723-0438

Rubber Seal

$10.99

$

Usually ships in 3-6 days

0

10

MTD 719-0326

Screen, Discharge

$101.99

$

In Stock, only 2 left!

0

11

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0421

Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

13

MTD 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

14

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1268

Screw, Wash Hd Tapp #10-16

$4.49

$

In Stock, only 2 left!

0

16

MTD 710-0896

Screw, Wash Hd Tapp 1/4-14

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0772

Screw, Hex Cap, 5/16-18 x 2

$4.49

$

Usually ships in 3-6 days

0

18

MTD 710-0604

Screw, Wash Hd Tapp 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0382

Screw, Hex Cap, 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

20

MTD 681-0098

Housing Ass'y, Inner Flail

Variations

MTD 681-0098-0483

HOUSING ASSY-FLAIL INNER - CHARCOAL GRAY (0483)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0498

HOUSING ASSY-FLAIL INNER - OLD CUB YELLOW (0498)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0637

HOUSING ASSY-FLAIL INNER - POWDER BLACK (0637)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0638

HOUSING ASSY-FLAIL INNER - MTD/TROY-BILT RED (0638)

$256.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0650

HOUSING ASSY-FLAIL INNER - RED METALLIC (0650)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0662

HOUSING ASSY-FLAIL INNER - OYSTER GRAY (0662)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0665

HOUSING ASSY-FLAIL INNER - YARDMAN GREEN (0665)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0689

HOUSING ASSY-FLAIL INNER - POLO GREEN (0689)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0716

HOUSING ASSY-FLAIL INNER - CUB YELLOW-99 (0716)

$207.99

$

Usually ships in 3-6 days

0

MTD 681-0098-0691

HOUSING ASSY-FLAIL INNER - BLACK JACK (0691)

$

$

Not available

MTD 681-0098-0692

HOUSING ASSY-FLAIL INNER - AGWAY BLUE (0692)

$

$

Not available

$207.99

$

Usually ships in 3-6 days

0

21

MTD 681-0060

Housing Ass'y, Outer Flail

Variations

MTD 681-0060-0483

HOUSING-ASSY-OUTER - CHARCOAL GRAY (0483)

$309.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0638

HOUSING-ASSY-OUTER - MTD/TROY-BILT RED (0638)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0650

HOUSING-ASSY-OUTER - RED METALLIC (0650)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0662

HOUSING-ASSY-OUTER - OYSTER GRAY (0662)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0665

HOUSING-ASSY-OUTER - YARDMAN GREEN (0665)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0689

HOUSING-ASSY-OUTER - POLO GREEN (0689)

$288.99

$

Usually ships in 3-6 days

0

MTD 681-0060-0716

HOUSING-ASSY-OUTER - CUB YELLOW-99 (0716)

$288.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

22

MTD 629-0241A

Harness, Wire
(Superseded to 929-0241A)

$61.99

$

Usually ships in 3-6 days

0
