247.777630 (24A-203D099) - Craftsman Shredder Vacuum (1999) (Sears) General Assembly Parts Diagram

Shredder Vacuum

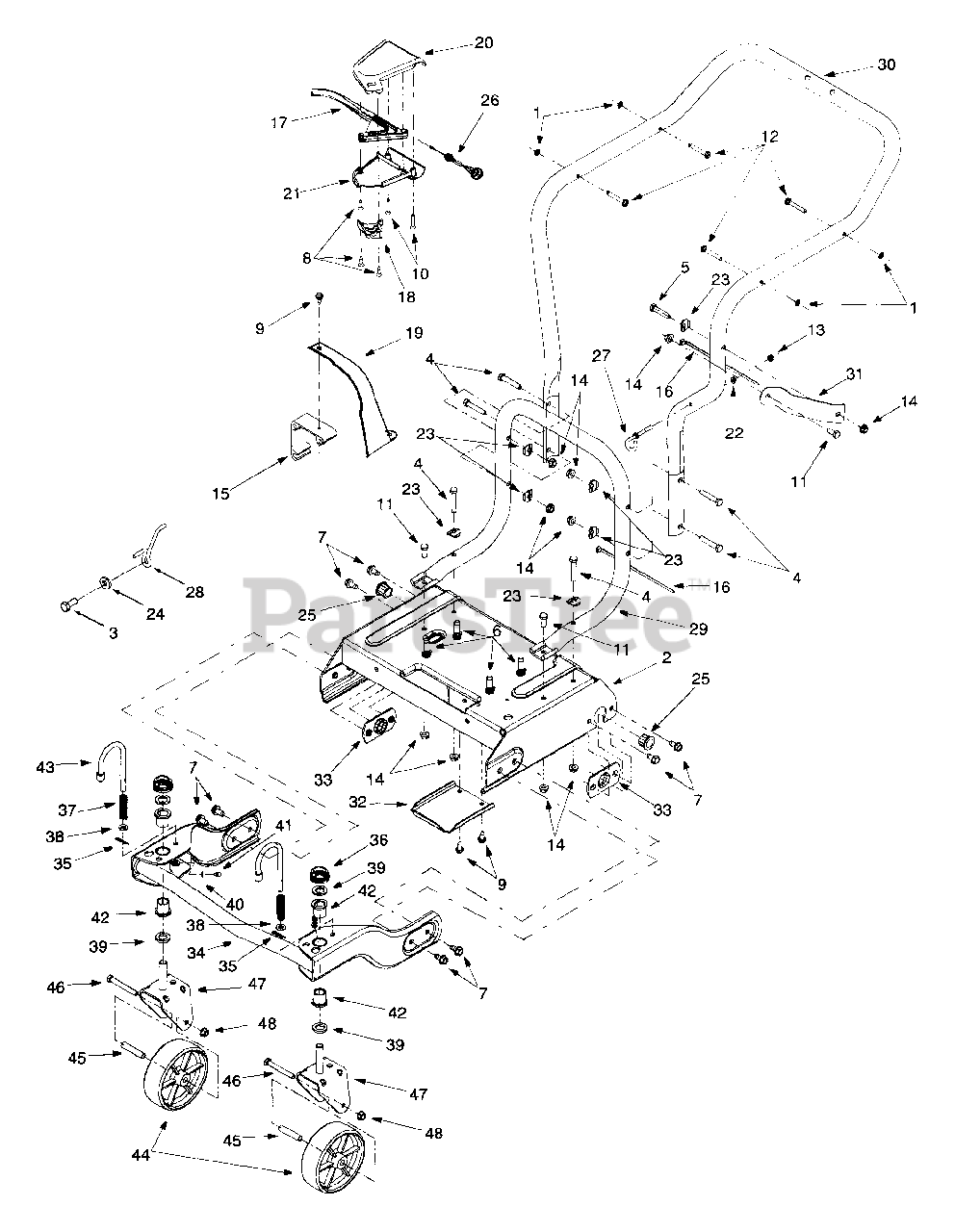

General Assembly Parts Diagram

  • Title

1

MTD 1539-019

Nut, Push, .25

$4.49

$

In Stock, Qty 6

0

2

MTD 681-0097A

Frame Assembly

Variations

MTD 681-0097A-0637

FRAME ASM - POWDER BLACK (0637)

$158.99

$

Usually ships in 3-6 days

0

MTD 681-0097A-0638

FRAME ASM - MTD/TROY-BILT RED (0638)

$158.99

$

Usually ships in 3-6 days

0

MTD 681-0097A-0650

FRAME ASM - RED METALLIC (0650)

$137.99

$

Usually ships in 3-6 days

0

MTD 681-0097A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0097A-0662

Frame Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0097A-0665

Frame Assembly - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0097A-0716

No Longer Available FRAME ASM - CUB YELLOW-99 (0716)

$

$

Not available

$137.99

$

Usually ships in 3-6 days

0

3

MTD 710-0157

Screw, Hex Cap, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

4

MTD 710-3180

Screw, Hex Cap, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

5

MTD 710-0805

Screw, Hex Cap, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0502A

Screw, Hex Wash Hd Tapp, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-0604

Screw, Hex Wash Hd Tapp, 5/16-18 x .62
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0841

Screw, Phil Cntrsnk, #10-12 x .75

$4.49

$

Usually ships in 3-6 days

0

9

MTD 710-0896

Screw, Hex Wash Hd, 1/4-14 x .62

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1331

Screw, Phil Cntrsnk, #10-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-3008

Screw, Hex Cap, 5/15-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

MTD 711-0737

Pin, Stud, .250 x 1.75
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 6

0

13

MTD 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

14

MTD 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

15

MTD 719-0359

Adapter, Engine Mtg

$31.99

$

Usually ships in 3-6 days

0

16

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

17

MTD 731-0620

Lever, Drive Control
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

18

MTD 731-1059

Cap, Cable Mtg
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

19

MTD 731-1646

Belt Cover

$14.99

$

Usually ships in 3-6 days

0

20

MTD 731-1735

Upper Clutch Cover
(Superseded to 753-0832)

$61.99

$

Usually ships in 3-6 days

0

21

MTD 731-1736

Lower Clutch Cover

$

$

Currently unavailable

22

MTD 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 736-0451

Saddle Washer, .320 x .93

$4.49

$

In Stock, Qty 11

0

24

MTD 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

25

MTD 741-0413

Bearing, Flange, .631 ID x .72 OD

$9.99

$

Usually ships in 3-6 days

0

26

MTD 746-0714

Cable, Clutch, 56.0
(Superseded to 946-0714)

$33.99

$

Usually ships in 3-6 days

0

27

MTD 747-0815

Eye Bolt

$15.99

$

Usually ships in 3-6 days

0

28

MTD 747-0929A

Belt Keeper

$12.99

$

Usually ships in 3-6 days

0

29

MTD 749-0980

Handle, Lower

Variations

MTD 749-0980-0498

No Longer Available HNDL. LOWE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-0980-0637

No Longer Available HNDL. LOWE - POWDER BLACK (0637)

$

$

Not available

MTD 749-0980-0638

No Longer Available HNDL. LOWE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0980-0662

Handle, Lower - OYSTER GRAY (0662)

$

$

Not available

MTD 749-0980-0665

Handle, Lower - YARDMAN GREEN (0665)

$

$

Not available

$

$

30

MTD 749-0996

Handle, Upper

Variations

MTD 749-0996-0498

No Longer Available HANDLE UPP - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-0996-0637

No Longer Available HANDLE UPP - POWDER BLACK (0637)

$

$

Not available

MTD 749-0996-0638

No Longer Available HANDLE UPP - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0996-0662

Handle, Upper - OYSTER GRAY (0662)

$

$

Not available

MTD 749-0996-0665

Handle, Upper - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

MTD 781-0647

Bracket, Chute Stabilizing

Variations

MTD 781-0647-0637

Stabilizer Bracket, D - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

MTD 781-0647-0716

BRACKET. STABILIZER D - CUB YELLOW-99 (0716)

$12.99

$

Usually ships in 3-6 days

0

MTD 781-0647-0638

BRACKET. STABILIZER D - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

MTD 781-0647-0650

BRACKET. STABILIZER D - RED METALLIC (0650)

$11.99

$

Usually ships in 3-6 days

0

MTD 781-0647-0662

BRACKET. STABILIZER D - OYSTER GRAY (0662)

$12.99

$

Usually ships in 3-6 days

0

MTD 781-0647-0665

BRACKET. STABILIZER D - YARDMAN GREEN (0665)

$12.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

32

MTD 781-0697

Transmission Cover
(Superseded to 781-0697-0637)

Variations

MTD 781-0697-0637

COVER TRANS - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

MTD 781-0697-0662

COVER TRANS - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

33

MTD 781-0700

Bracket, Axle
(Superseded to 781-0700-0637)

Variations

MTD 781-0700-0637

Axle Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

34

MTD 681-0087

Bracket Assembly, Front Wheel

Variations

MTD 681-0087-0483

BRACKET ASSY-FRONT WHEEL - CHARCOAL GRAY (0483)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0498

BRACKET ASSY-FRONT WHEEL - OLD CUB YELLOW (0498)

$233.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0637

BRACKET ASSY-FRONT WHEEL - POWDER BLACK (0637)

$233.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0638

BRACKET ASSY-FRONT WHEEL - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0650

BRACKET ASSY-FRONT WHEEL - RED METALLIC (0650)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0662

BRACKET ASSY-FRONT WHEEL - OYSTER GRAY (0662)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0665

BRACKET ASSY-FRONT WHEEL - YARDMAN GREEN (0665)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0691

BRACKET ASSY-FRONT WHEEL - BLACK JACK (0691)

$233.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0716

BRACKET ASSY-FRONT WHEEL - CUB YELLOW-99 (0716)

$216.99

$

Usually ships in 3-6 days

0

$188.99

$

Usually ships in 3-6 days

0

35

MTD 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

36

MTD 726-0214

Cap, Push, 5/8

$10.99

$

Usually ships in 3-6 days

0

37

MTD 732-0306

Spring, Compression
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

38

MTD 736-0264

Washer, Flat, .330 x .630 x .06

$6.99

$

In Stock, only 1 left!

0

39

MTD 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0931

Washer, Flat, .203 IDx.403 OD .040

$4.99

$

In Stock, only 1 left!

0

41

MTD 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

42

MTD 741-0487A

Bearing, Flange, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

43

MTD 747-0924

Pin, Front Wheel Lock

$20.99

$

In Stock, only 1 left!

0

44

MTD 734-1804

Wheel, 6.00 x 2.00
(Superseded to 734-1804A)

$41.99

$

Usually ships in 3-6 days

0

45

MTD 750-1042

Spacer, .384 ID x .5 OD x 2.3 Lg

$13.99

$

Usually ships in 3-6 days

0

46

MTD 710-0521

Screw, Hex Cap, 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

47

MTD 681-0088

Bracket Assembly, Pivot Wheel

Variations

MTD 681-0088-0483

BRACKET ASSY PIVOT WHEEL - CHARCOAL GRAY (0483)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0498

BRACKET ASSY PIVOT WHEEL - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0637

BRACKET ASSY PIVOT WHEEL - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0638

BRACKET ASSY PIVOT WHEEL - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0650

BRACKET ASSY PIVOT WHEEL - RED METALLIC (0650)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0662

BRACKET ASSY PIVOT WHEEL - OYSTER GRAY (0662)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0665

BRACKET ASSY PIVOT WHEEL - YARDMAN GREEN (0665)

$56.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0691

BRACKET ASSY PIVOT WHEEL - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0716

BRACKET ASSY PIVOT WHEEL - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

48

MTD 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0
