247.777630 (24A-203D099) - Craftsman Shredder Vacuum (1999) (Sears) Drive Parts Diagram

Shredder Vacuum

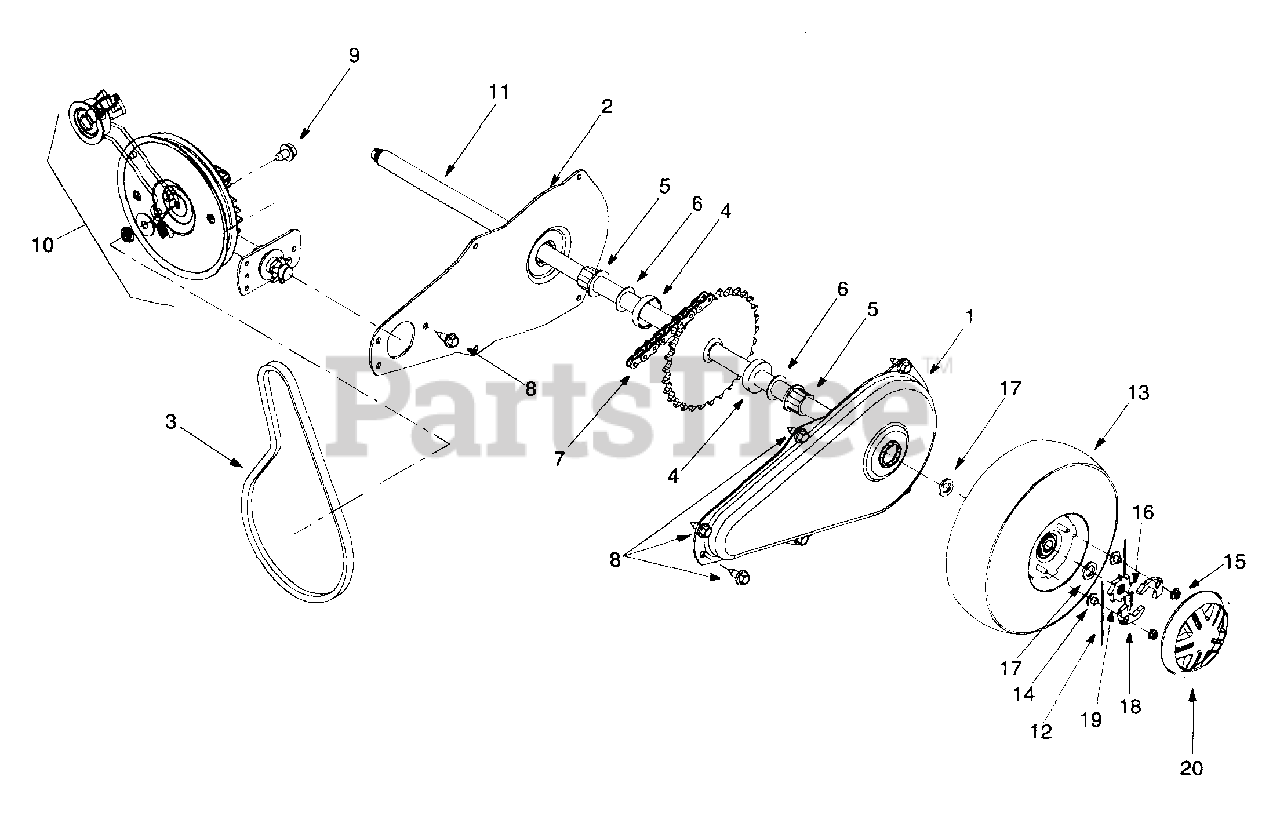

Drive Parts Diagram

  • Title

1

MTD 781-0677

Chain Case LH

Variations

MTD 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

MTD 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

MTD 781-0676

Chain Case RH

Variations

MTD 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

MTD 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

MTD 754-0457

V-Belt, 3/8 x 24.68
(Superseded to 954-0457)

$23.99

$

In Stock, only 1 left!

0

4

MTD 748-0313

Spacer, .630 x 1.25 x .29

$3.99

$

Usually ships in 3-6 days

0

5

MTD 741-0413

Bearing, Hex Flange, .631 ID

$9.99

$

Usually ships in 3-6 days

0

6

MTD 736-0336

Washer, Flat, 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

7

MTD 713-0422

Chain, Endless, #41 x 50 Lnks
(Superseded to 913-0422)

$30.99

$

Usually ships in 3-6 days

0

8

MTD 710-0896

Screw, Hex Wash Hd,

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0603

Screw, Hex Wash Hd Tapp 5/16-18 x .5

$4.99

$

Usually ships in 3-6 days

0

10

MTD 618-0256

Trans. Assembly Complete

$464.99

$

Usually ships in 3-6 days

0

11

MTD 611-0063

Shaft Assembly, Axle

$

$

Not available

12

MTD 10662B

Spring, Plastic Ratchet

$

$

Currently unavailable

13

MTD 634-0136

Wheel Assembly, Complete
(Superseded to 634-0244)

Variations

MTD 634-0136-0911

Wheel Assembly, CSV - Carlisle Gray (0911)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0931

Wheel Assembly, CSV - Carlisle Beige (0931)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0136-0941

WHEEL ASM-COMP CSV - Carlisle Yellow (0941)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

MTD 634-0129

Ratchet Rim Ass'y, Complete

Variations

MTD 634-0129-0662

RIM-WHEEL RTCHT CS - OYSTER GRAY (0662)

$143.99

$

In Stock, only 1 left!

0

MTD 634-0129-0674

RIM-WHEEL RTCHT CS - YARDMAN YELLOW (0674)

$152.99

$

Usually ships in 3-6 days

0

MTD 634-0129-0499

No Longer Available RIM-WHEEL RTCHT CS - CUB BEIGE (0499)

$

$

Not available

$143.99

$

Usually ships in 3-6 days

0

MTD 734-0210

Tire, Pneumatic, 10 x 4
(Superseded to 734-1598-0901)

$119.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 741-0487A

Bearing, Flange, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

14

MTD 712-0456

Nut, Special Hex 1/4-20

$10.99

$

Usually ships in 3-6 days

0

15

MTD 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

16

MTD 714-0104

Pin, internal Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, only 2 left!

0

18

MTD 748-0188B

Pawl, LH .345 ID
(Superseded to 948-0188B)

$

$

Not available

MTD 748-0381

Pawl, RH .345 ID

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

19

MTD 748-0405

Ratchet, Wheel, .5 Serr ID x 1.62

$11.99

$

In Stock, only 1 left!

0

20

MTD 734-1984

Hubcap, 4.0

$28.99

$

Usually ships in 3-6 days

0
