247.776611 (24BG57M1799) - Craftsman Log Splitter (2018) Tongue Parts Diagram

Log Splitter

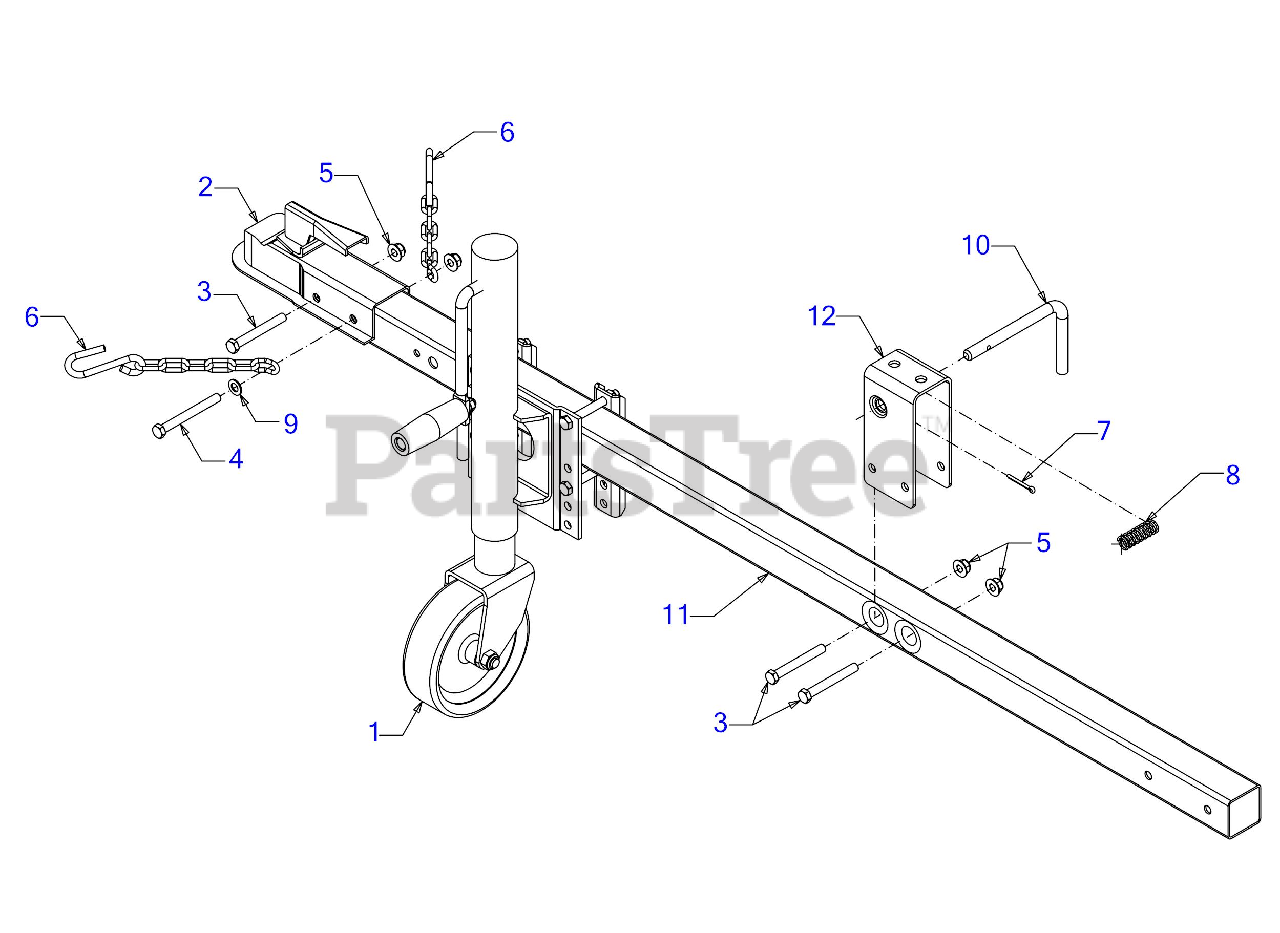

Tongue Parts Diagram

  • Title

1

MTD 981-04029

ADJUSTING STAND

$295.99

$

Usually ships in 3-6 days

0

2

MTD 681-04030

HITCH COUPLING ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

3

MTD 710-0521

SCREW 3/8-16 x 3 GR8

$5.49

$

In Stock, Qty 11

0

4

MTD 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

MTD 713-0433A

LOGSPLITTER TOW CHAIN

$44.99

$

In Stock, only 1 left!

0

7

MTD 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

8

MTD 932-3127

COMPRESSION SPRING

$4.49

$

In Stock, Qty 20+

0

9

MTD 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

10

MTD 747-1261

LATCH ROD

$39.99

$

Usually ships in 3-6 days

0

11

MTD 781-04424

TONGUE TUBE 2" x 2"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-04424-0638

Tongue Tube, Red - MTD/TROY-BILT RED (0638)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-04424-4021

TUBE-TONGUE - CUB YELLOW 2 (4021)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-04424-0606

TUBE-TONGUE - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

MTD 781-04424-0637

TUBE-TONGUE - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

MTD 781-04424-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

MTD 781-04424-4044

TUBE-TONGUE - CRAFTSMAN RED (4044)

$59.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

12

MTD 781-1045

LATCH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-1045-0637

Latch - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0638

LATCH - MTD/TROY-BILT RED (0638)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0606

LATCH LOGSP - MAJESTIC ORANGE (0606)

$48.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0650

LATCH LOGSP - RED METALLIC (0650)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0662

LATCH - OYSTER GRAY (0662)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0689

LATCH - POLO GREEN (0689)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0716

LATCH LOGSP - CUB YELLOW-99 (0716)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0721

LATCH LOGSP - SEARS RED (0721)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-4021

LATCH LOGSP - CUB YELLOW 2 (4021)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-4044

LATCH LOGSP - CRAFTSMAN RED (4044)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0
