247.776611 (24BG57M1799) - Craftsman Log Splitter (2016) Tongue Parts Diagram

Log Splitter

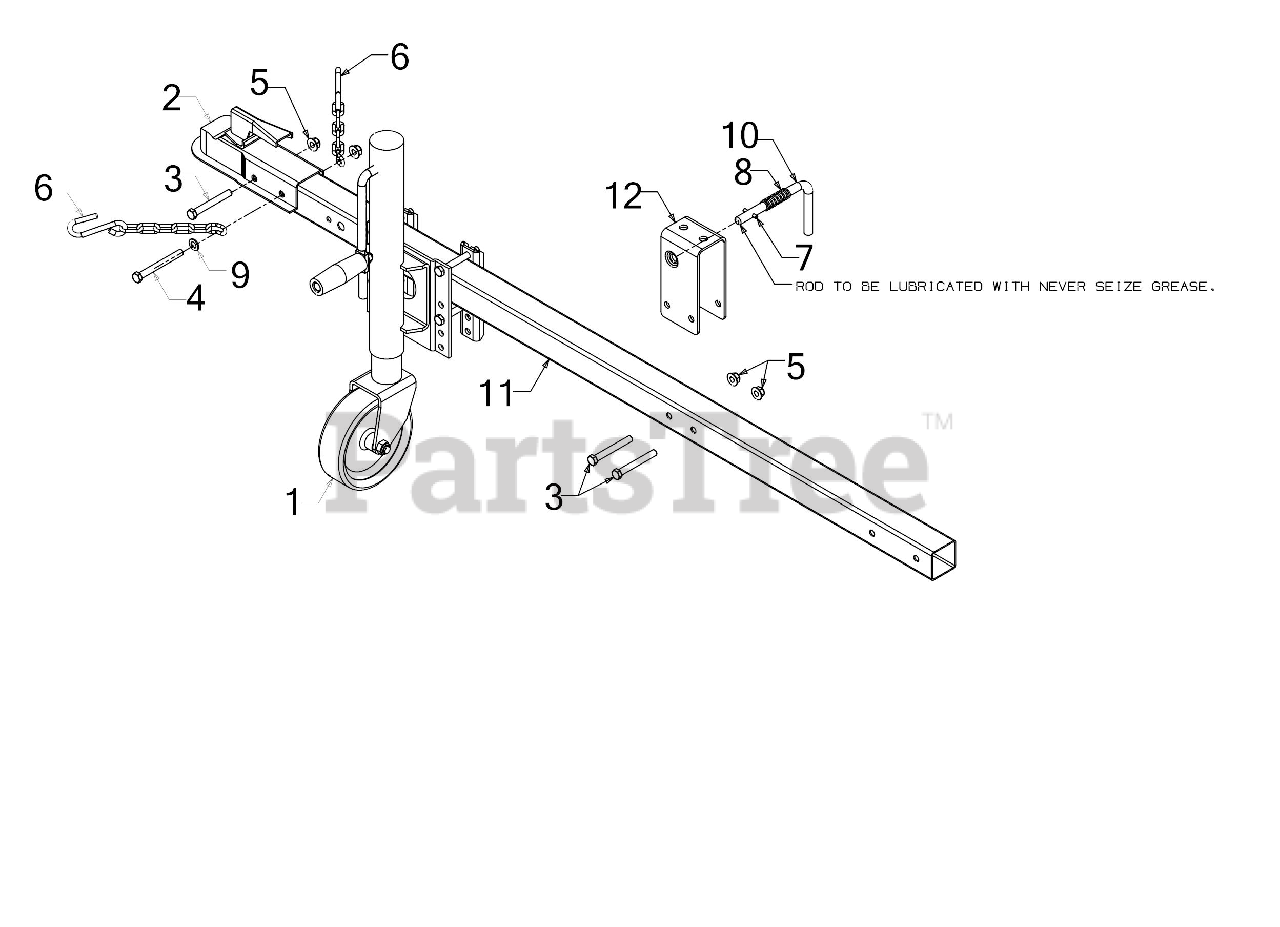

Tongue Parts Diagram

  • Title
1

MTD 981-04029

ADJUSTING STAND

$295.99

$

Usually ships in 3-6 days

0

2

MTD 681-04030

HITCH COUPLING ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

3

MTD 710-0521

SCREW 3/8-16 x 3 GR8

$5.49

$

In Stock, Qty 11

0

4

MTD 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

6

MTD 713-0433A

LOGSPLITTER TOW CHAIN

$44.99

$

In Stock, only 1 left!

0

7

MTD 715-0120

SPRING PIN 3/16 x 1.00

$10.99

$

In Stock, only 1 left!

0

8

MTD 932-3127

COMPRESSION SPRING

$4.49

$

In Stock, Qty 20+

0

9

MTD 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

10

MTD 747-1261

LATCH ROD

$39.99

$

Usually ships in 3-6 days

0

11

MTD 781-04424-4044

TONGUE TUBE

$59.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0
