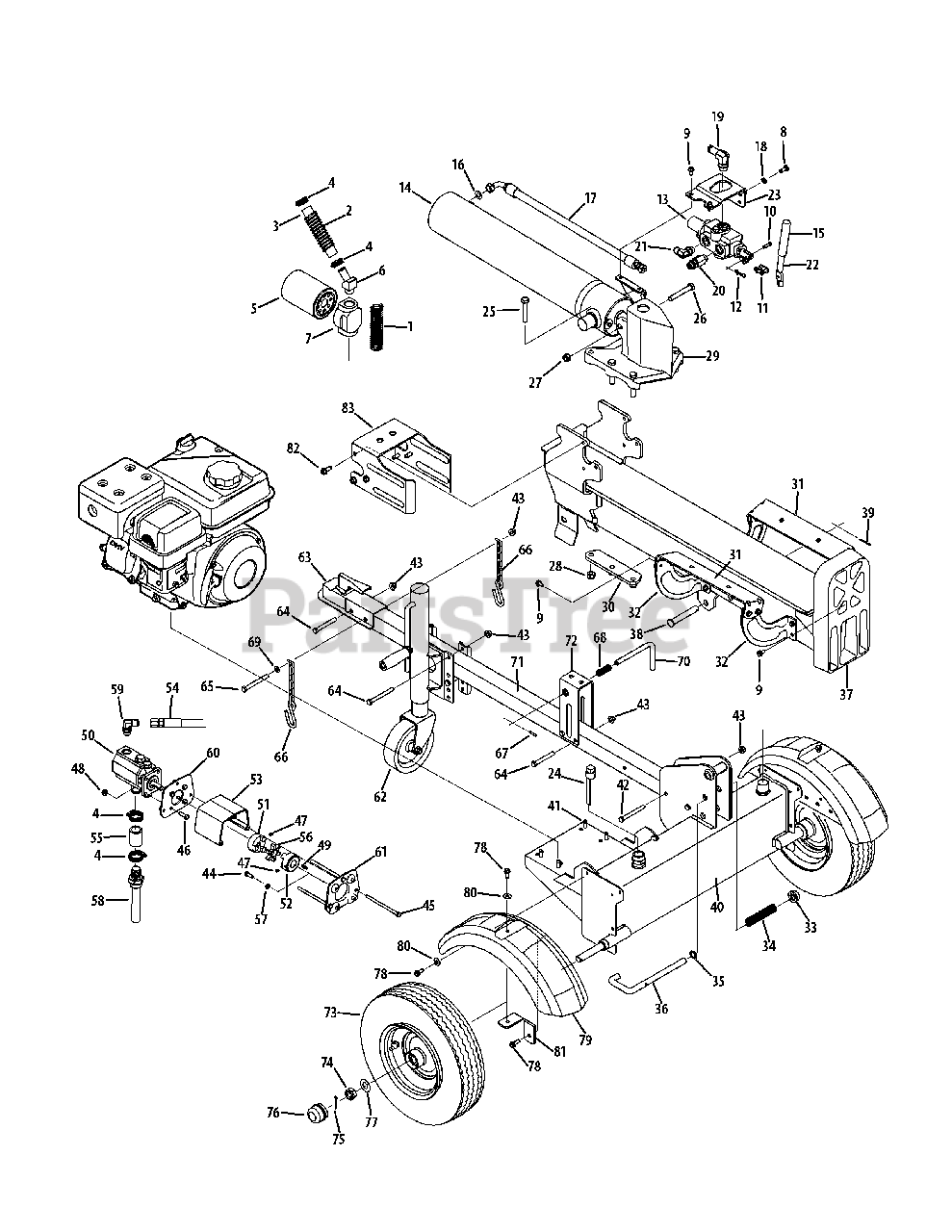

247.776611 (24BG57M1799) - Craftsman Log Splitter (2015) General Assembly Parts Diagram

Log Splitter

General Assembly Parts Diagram

  • Title

1

MTD 781-0538A

Hose Guard

$35.99

$

Usually ships in 3-6 days

0

2

MTD 781-0526A

Hose Guard

$53.99

$

Usually ships in 3-6 days

0

3

MTD 727-0443

Return Hose

$118.99

$

In Stock, only 1 left!

0

4

MTD 726-0132

Hose Clamp

$15.99

$

Usually ships in 3-6 days

0

5

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 6

0

6

MTD 737-04323

Hydraulic Fitting

$28.99

$

Usually ships in 3-6 days

0

7

MTD 737-04267

Filter Housing

$57.99

$

In Stock, only 1 left!

0

8

MTD 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

9

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

MTD 711-04585

Clevis Pin, .25 x 1.00

$6.99

$

In Stock, only 1 left!

0

11

MTD 913-04036

Valve Handle Link

$21.99

$

Usually ships in 3-6 days

0

12

MTD 714-04040

Cotter Pin

$1.49

$

In Stock, Qty 20+

0

13

MTD 718-04706P

Log Splitter Valve

$366.99

$

Usually ships in 3-6 days

0

14

MTD 918-04713

Hydraulic Cylinder, 4.5 x 24

$817.99

$

Usually ships in 3-6 days

0

15

MTD 720-04088

Grip, .625

$10.99

$

Usually ships in 3-6 days

0

16

MTD 721-04411

Hydraulic O-Ring

$3.99

$

In Stock, only 1 left!

0

17

MTD 727-04362

Hydraulic Hose

$91.99

$

In Stock, only 1 left!

0

18

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

19

MTD 737-04307

Hydraulic Fitting, 7/8 x .75

$24.99

$

Usually ships in 3-6 days

0

20

MTD 737-04309

Hydraulic Fitting, 3/4

$20.99

$

In Stock, only 3 left!

0

21

MTD 737-04320

Hydraulic Fitting, 3/4 x 13/16

$20.99

$

Usually ships in 3-6 days

0

22

MTD 747-04539A

Hydraulic Valve Control

$45.99

$

In Stock, only 1 left!

0

23

MTD 781-04418-0637

Valve Bracket

$17.99

$

Usually ships in 3-6 days

0

24

MTD 737-0348A

Plug w/ Dipstick

$23.99

$

In Stock, only 1 left!

0

25

MTD 710-1018

Hex Screw, 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

26

MTD 710-1806

Hex Screw, 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

27

MTD 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 8

0

28

MTD 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

29

MTD 719-04529

Log Splitter Wedge

$252.99

$

Usually ships in 3-6 days

0

30

MTD 781-0790A-0637

Log Splitter Wedge Plate

$40.99

$

In Stock, only 2 left!

0

31

MTD 781-04179-0637

Log Tray Bracket

$50.99

$

In Stock, Qty 7

0

32

MTD 781-04293-0637

Log Splitter Tray Bracket

$20.99

$

Usually ships in 3-6 days

0

33

MTD 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 3 left!

0

34

MTD 732-0583

Compression Spring, .625 x 4.0

$12.99

$

In Stock, only 1 left!

0

35

MTD 936-0116

Flat Washer, .635 x .930 x .060

$6.99

$

In Stock, only 1 left!

0

36

MTD 747-04983

Beam Lock Rod

$25.99

$

Usually ships in 3-6 days

0

37

MTD 681-04112A-0637

Beam Assembly

$1387.99

$

Usually ships in 3-6 days

0

38

MTD 711-05169

Clevis Pin, .625 x 4.25

$5.49

$

Usually ships in 3-6 days

0

39

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

40

MTD 681-04113-0637

Tank Assembly

$597.99

$

Usually ships in 3-6 days

0

41

MTD 710-04683C

Hex Washer Screw, 3/8-16 x 1.000

$6.49

$

In Stock, only 3 left!

0

42

MTD 710-3085

Hex Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 7

0

43

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

MTD 710-0157

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 8

0

45

MTD 710-0190

Hex Screw, 5/16-18 x 4.00

$7.99

$

Usually ships in 3-6 days

0

46

MTD 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

47

MTD 710-1842A

Set Screw, 1/4-20 x .38

$5.49

$

Usually ships in 3-6 days

0

48

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

MTD 914-0122

Square Key, 3/16 x .75
(Superseded to 714-0122)

$

$

Not available

50

MTD 918-04127

Gear Pump

$751.99

$

Usually ships in 3-6 days

0

51

MTD 718-04392

Coupling, .500

$14.99

$

In Stock, only 3 left!

0

52

MTD 718-04474

Coupling, .750

$26.99

$

Usually ships in 3-6 days

0

53

MTD 719-0278

Coupling Shield Spacer

$72.99

$

Usually ships in 3-6 days

0

54

MTD 727-04288

Hydraulic Hose

$91.99

$

Usually ships in 3-6 days

0

55

MTD 727-04356

Input Hose, 1.0

$47.99

$

Usually ships in 3-6 days

0

56

MTD 735-04103

Spider Bushing

$14.99

$

In Stock, only 2 left!

0

57

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

58

MTD 737-04308

Inlet Filter

$40.99

$

Usually ships in 3-6 days

0

59

MTD 737-04320

Hydraulic Fitting

$20.99

$

Usually ships in 3-6 days

0

60

MTD 781-0097-0637

Rear Coupling Support Bracket

$69.99

$

In Stock, only 3 left!

0

61

MTD 781-0098A-0637

Front Coupling Support Bracket

$43.99

$

Usually ships in 3-6 days

0

62

MTD 981-04029

Adjustable Stand Assembly

$295.99

$

Usually ships in 3-6 days

0

63

MTD 681-04030

Hitch Coupling Assembly

$72.99

$

Usually ships in 3-6 days

0

64

MTD 710-0521

Hex Screw, 3/8-16 x 3.00

$5.49

$

In Stock, Qty 10

0

65

MTD 710-3085

Hex Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 7

0

66

MTD 713-0433A

Tow Chain

$44.99

$

In Stock, only 1 left!

0

67

MTD 715-0120

Spirol Pin, 3/16 x 1.00

$10.99

$

In Stock, only 1 left!

0

68

MTD 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 6

0

69

MTD 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

70

MTD 747-1261

Latching Rod

$39.99

$

Usually ships in 3-6 days

0

71

MTD 781-04424-4044

Tongue Tube, 2.0 x 2.0

$59.99

$

Usually ships in 3-6 days

0

72

MTD 781-1045-4044

Tongue Latch

$55.99

$

Usually ships in 3-6 days

0

73

MTD 634-0186

Complete Wheel, 16.0 x 4.8 x 8.0

$363.99

$

In Stock, only 1 left!

0

73

MTD 634-0188

Rim, 3.75 x 8.0

$175.99

$

Usually ships in 3-6 days

0

73

MTD 734-0872

Tire, 16 x 4.80-8

$169.99

$

Usually ships in 3-6 days

0

73

MTD 734-04545

Inner Tube, 4.80/4.00-8

$16.99

$

Usually ships in 3-6 days

0

73

MTD 921-0168

Grease Retainer

$9.49

$

In Stock, Qty 18

0

73

MTD 941-04089

Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

74

MTD 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

75

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

76

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 1 left!

0

77

MTD 936-0351

Flat Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

78

MTD 710-0602

Hex Washer Screw, 5/16-18 x 1.000

$4.49

$

In Stock, Qty 20+

0

79

MTD 731-2496A

Fender

$82.99

$

Usually ships in 3-6 days

0

80

MTD 736-0371

Thrust Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

81

MTD 781-1024A-0637

Fender Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

82

MTD 710-04683C

Hex Washer Screw, 3/8-16 x 1.000

$6.49

$

In Stock, only 3 left!

0

83

MTD 781-04426-4044

Dislodger Bracket

$81.99

$

Usually ships in 3-6 days

0

MTD 952Z170-DU

Engine (170-DU)

Note: (not shown)

$675.99

$

Usually ships in 3-6 days
