247.776411 (24BF570F299) - Craftsman Log Splitter (2011) (Sears) General Assembly Parts Diagram

Log Splitter

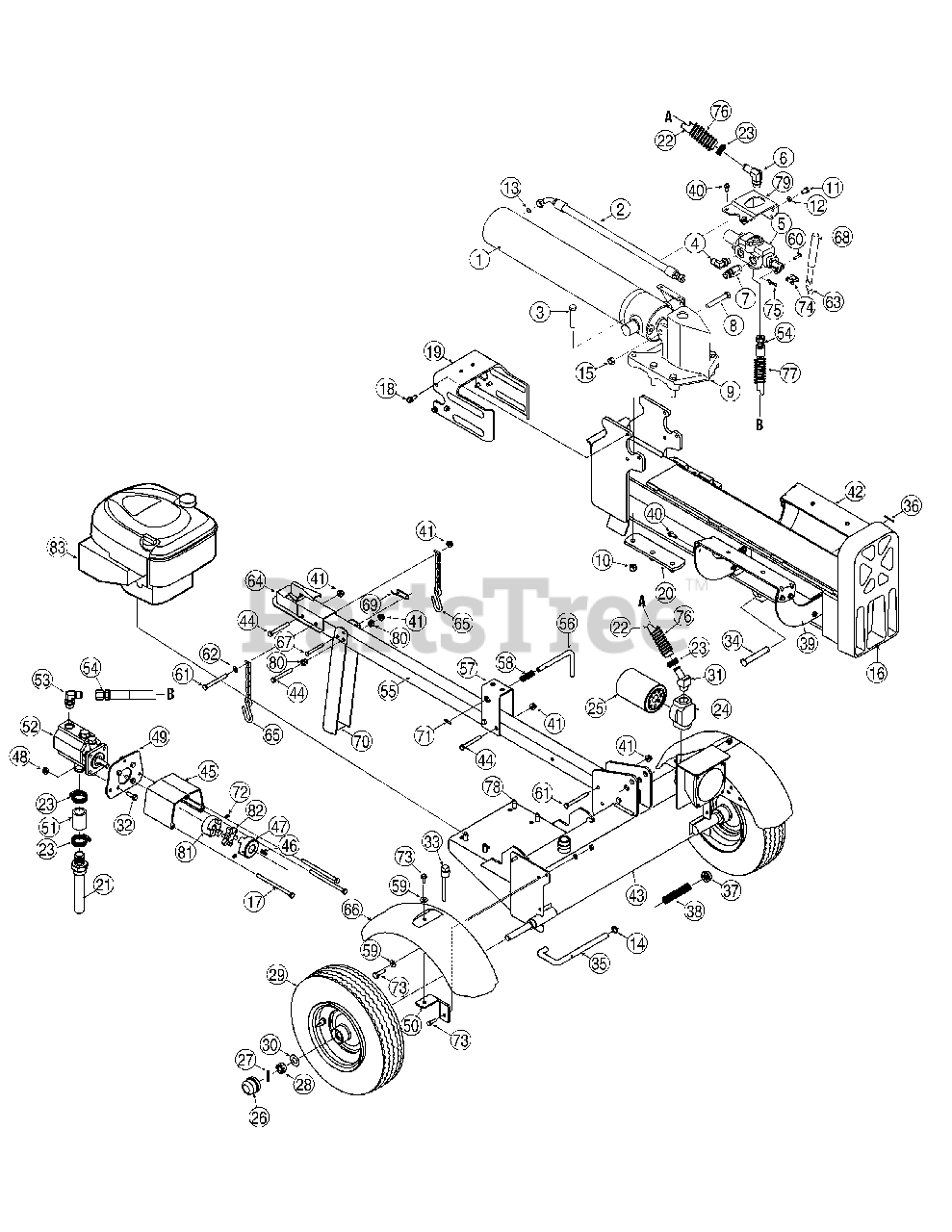

General Assembly Parts Diagram

  • Title

1

MTD 918-04713

Hydraulic Cylinder

$817.99

$

Usually ships in 3-6 days

0

2

MTD 727-04362

Hydraulic Tube

$91.99

$

Usually ships in 3-6 days

0

3

MTD 710-1018

Hex Cap Screw, 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

MTD 737-04320

90 Degree Solid Adapter

$20.99

$

Usually ships in 3-6 days

0

5

MTD 718-04706P

Control Valve

$366.99

$

Usually ships in 3-6 days

0

6

MTD 737-04307

Return Elbow

$24.99

$

Usually ships in 3-6 days

0

7

MTD 737-04309

Nipple Pipe, 1/2-14

$20.99

$

In Stock, only 4 left!

0

8

MTD 710-1806

Hex Cap Screw, 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

9

MTD 719-04529

Wedge Assembly

$252.99

$

Usually ships in 3-6 days

0

10

MTD 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

11

MTD 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

12

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

13

MTD 721-04411

O-Ring, .489 x 070

$3.99

$

Usually ships in 3-6 days

0

14

MTD 936-0116

Flat Washer, .635 x.93 x.06

$6.99

$

In Stock, only 1 left!

0

15

MTD 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 9

0

16

MTD 681-04112-0637

Beam Assembly
(Superseded to 681-04112A-0637)

$1387.99

$

Usually ships in 3-6 days

0

17

MTD 710-3056

Hex Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

18

MTD 710-04683

Self Tapping Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

19

MTD 781-04426

Dislodger Bracket

Variations

MTD 781-04426-0606

Dislodger Bracket - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

MTD 781-04426-0637

Dislodger Bracket - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

MTD 781-04426-0638

Dislodger Bracket - MTD/TROY-BILT RED (0638)

$87.99

$

Usually ships in 3-6 days

0

MTD 781-04426-4021

Dislodger Bracket - CUB YELLOW 2 (4021)

$81.99

$

Usually ships in 3-6 days

0

MTD 781-04426-0662

BRACKET-DISLODGER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

MTD 781-04426-0689

BRACKET-DISLODGER - POLO GREEN (0689)

$81.99

$

Usually ships in 3-6 days

0

MTD 781-04426-4041

BRACKET-DISLODGER - PURE ORANGE (4041)

$81.99

$

Usually ships in 3-6 days

0

MTD 781-04426-4044

BRACKET-DISLODGER - CRAFTSMAN RED (4044)

$81.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

20

MTD 781-0790A-0637

Back Plate

$40.99

$

In Stock, only 2 left!

0

21

MTD 737-04308

Inlet Filter

$40.99

$

Usually ships in 3-6 days

0

22

MTD 727-0443

Return Hose, 3/4 x 44

$118.99

$

In Stock, only 2 left!

0

23

MTD 726-0132

Hose Clamp, 5/8

$15.99

$

Usually ships in 3-6 days

0

24

MTD 737-04267

Filter Housing

$57.99

$

In Stock, Qty 5

0

25

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

26

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 3 left!

0

27

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

29

MTD 634-0186

Complete Wheel Assembly

$363.99

$

Usually ships in 3-6 days

0

30

MTD 936-0351

Flat Washer, .760 x.500
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

31

MTD 737-04323

Hydraulic Fitting

$28.99

$

Usually ships in 3-6 days

0

32

MTD 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

33

MTD 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

34

MTD 711-05169

Clevis Pin

$5.49

$

Usually ships in 3-6 days

0

35

MTD 747-04983

Lock Rod

$25.99

$

Usually ships in 3-6 days

0

36

MTD 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

37

MTD 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

38

MTD 732-0583

Compression Spring

$12.99

$

In Stock, Qty 19

0

39

MTD 781-04293-0637

Log Tray Bracket

$20.99

$

In Stock, only 2 left!

0

40

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

41

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

MTD 781-04179-0637

Log Tray

$50.99

$

In Stock, Qty 7

0

43

MTD 681-04131

Frame Assembly

Variations

MTD 681-04131-0606

TANK ASM-LOGSPLT - MAJESTIC ORANGE (0606)

$482.99

$

Usually ships in 3-6 days

0

MTD 681-04131-0637

TANK ASM-LOGSPLITTER - POWDER BLACK (0637)

$554.99

$

Usually ships in 3-6 days

0

MTD 681-04131-0638

TANK ASM-LOGSPLITTER - MTD/TROY-BILT RED (0638)

$531.99

$

Usually ships in 3-6 days

0

$482.99

$

Usually ships in 3-6 days

0

44

MTD 710-0521

Hex Bolt, 3/8-16 x 3

$5.49

$

In Stock, Qty 11

0

45

MTD 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

46

MTD 914-0122

Square Key, 3/16" x .75
(Superseded to 714-0122)

$

$

Not available

47

MTD 718-04395

Coupling, .875

$18.99

$

In Stock, Qty 20+

0

48

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

49

MTD 781-0097-0637

Rear Coupling Support Bracket

$69.99

$

In Stock, only 3 left!

0

50

MTD 781-1024A-0637

Fender Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

51

MTD 727-04290

Hose
(Superseded to 727-04130)

$106.99

$

In Stock, only 1 left!

0

52

MTD 918-04127

Gear Pump

$751.99

$

Usually ships in 3-6 days

0

53

MTD 737-04321

45 Degree Elbow Fitting

$17.99

$

In Stock, only 1 left!

0

54

MTD 727-04288

High Pressure Hydraulic Hose

$91.99

$

Usually ships in 3-6 days

0

55

MTD 781-04424

Tongue Assembly

Variations

MTD 781-04424-0638

Tongue Tube, Red - MTD/TROY-BILT RED (0638)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-04424-4021

TUBE-TONGUE - CUB YELLOW 2 (4021)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-04424-0606

TUBE-TONGUE - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

MTD 781-04424-0637

TUBE-TONGUE - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

MTD 781-04424-0662

TUBE-TONGUE - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

MTD 781-04424-4044

TUBE-TONGUE - CRAFTSMAN RED (4044)

$59.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

56

MTD 747-1261

Latch Rod

$39.99

$

Usually ships in 3-6 days

0

57

MTD 781-1045

Latch

Variations

MTD 781-1045-0637

Latch - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0638

LATCH - MTD/TROY-BILT RED (0638)

$59.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0606

LATCH LOGSP - MAJESTIC ORANGE (0606)

$48.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0650

LATCH LOGSP - RED METALLIC (0650)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0662

LATCH - OYSTER GRAY (0662)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0689

LATCH - POLO GREEN (0689)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0716

LATCH LOGSP - CUB YELLOW-99 (0716)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-0721

LATCH LOGSP - SEARS RED (0721)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-4021

LATCH LOGSP - CUB YELLOW 2 (4021)

$55.99

$

Usually ships in 3-6 days

0

MTD 781-1045-4044

LATCH LOGSP - CRAFTSMAN RED (4044)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

58

MTD 932-3127

Compression Spring

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0371

Flat Washer

$4.49

$

In Stock, only 3 left!

0

60

MTD 711-04585

Clevis Pin

$6.99

$

In Stock, Qty 13

0

61

MTD 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

62

MTD 936-0185

Flat Washer, .375 x.738 x.063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

63

MTD 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$45.99

$

In Stock, only 1 left!

0

64

MTD 681-04030

Hitch Coupling Assembly

$72.99

$

Usually ships in 3-6 days

0

65

MTD 713-0433A

Chain

$44.99

$

In Stock, only 1 left!

0

66

MTD 731-2496A

Fender

$82.99

$

Usually ships in 3-6 days

0

67

MTD 911-0813

Clevis Pin

$6.99

$

Usually ships in 3-6 days

0

68

MTD 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

69

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

70

MTD 781-04430

Jack Stand

Variations

MTD 781-04430-0606

STAND-JACK LGSPLT - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 781-04430-0638

Stand Jack Logspli - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 781-04430-0662

STAND-JACK LOGSPLI - OYSTER GRAY (0662)

$42.99

$

Usually ships in 3-6 days

0

MTD 781-04430-4021

STAND-JACK LOGSPLI - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

0

MTD 781-04430-0637

STAND-JACK LOGSPLI - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

71

MTD 715-0120

Spiral Pin

$10.99

$

In Stock, only 1 left!

0

72

MTD 710-1842A

Set Screws

$5.49

$

In Stock, only 1 left!

0

73

MTD 710-0602

Self-Tapping Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

74

MTD 913-04036

Valve Handle Link

$21.99

$

In Stock, only 2 left!

0

75

MTD 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

76

MTD 781-0526A

Hose Guard, 44"

$53.99

$

Usually ships in 3-6 days

0

77

MTD 781-0538A

Hose Guard, 48"

$35.99

$

Usually ships in 3-6 days

0

78

MTD 710-04683

Sems Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

79

MTD 781-04418-0637

Outer Valve Bracket

$17.99

$

Usually ships in 3-6 days

0

80

MTD 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

81

MTD 718-04392

Coupling, .500

$14.99

$

In Stock, Qty 20+

0

82

MTD 735-04103

Spider Bushing

$14.99

$

In Stock, Qty 8

0
