247.776410 (24BF570F299) - Craftsman Log Splitter (2010) (Sears) General Assembly Parts Diagram

Log Splitter

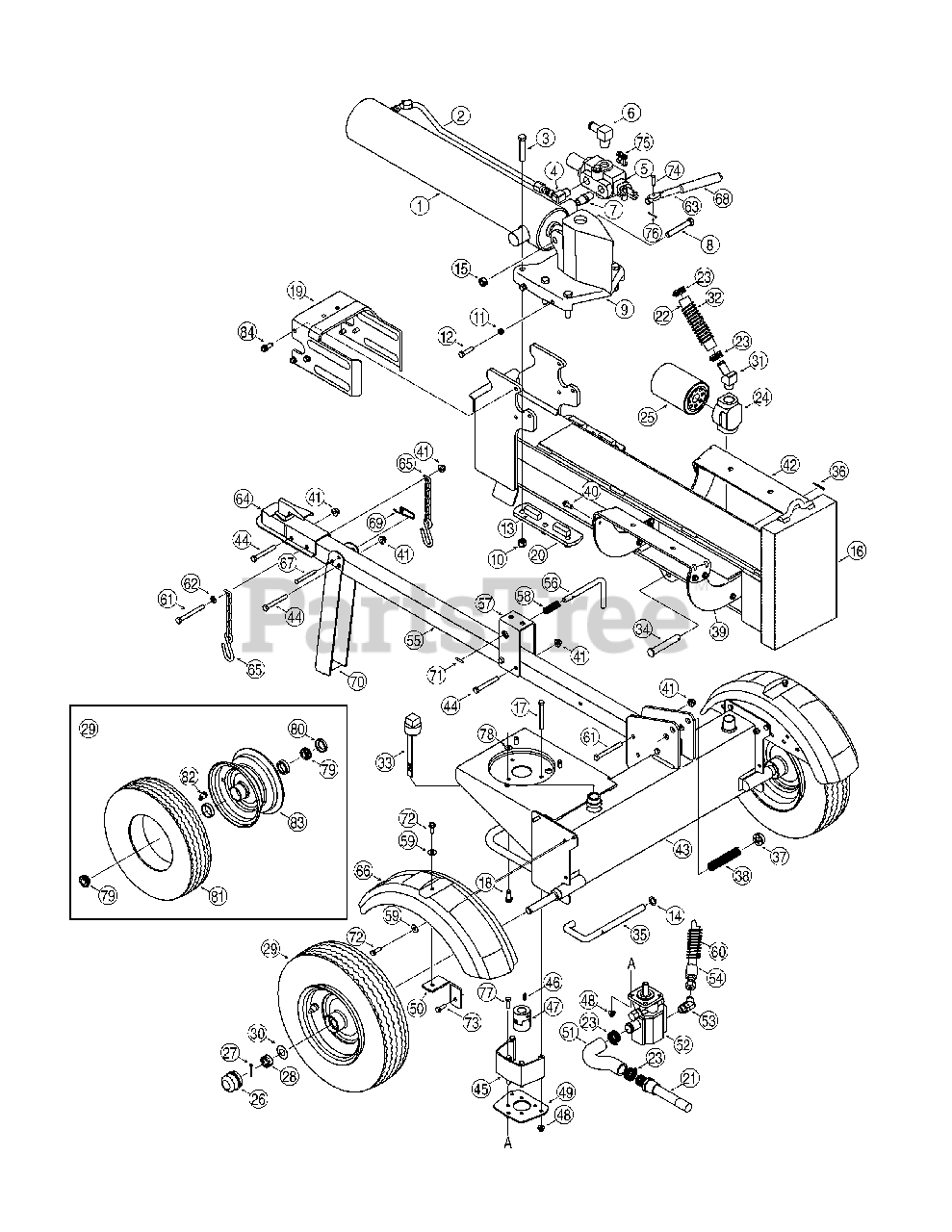

General Assembly Parts Diagram

  • Title

1

MTD 918-0769A

Hydraulic Cylinder

$991.99

$

Usually ships in 3-6 days

0

2

MTD 727-04166

Hydraulic Tube

$114.99

$

Usually ships in 3-6 days

0

3

MTD 710-1018

Hex Cap Screw 1/2-20 x 2.75

$11.99

$

In Stock, Qty 19

0

4

MTD 737-0192

90 Degree Solid Adapter

$41.99

$

Usually ships in 3-6 days

0

5

MTD 918-0481A

Control Valve

$383.99

$

In Stock, only 1 left!

0

6

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

7

MTD 737-0238

Nipple Pipe 1/2-14

$25.99

$

In Stock, only 1 left!

0

8

MTD 710-1806

Hex Cap Screw 1/2-13 x 3.25

$10.99

$

In Stock, only 4 left!

0

9

MTD 719-0550A

Wedge Assembly

$245.99

$

Usually ships in 3-6 days

0

10

MTD 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

11

MTD 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

13

MTD 781-0351

Adjustable Gib

Variations

MTD 781-0351-0483

Log Splitter Adjustable Gib, 2" - CHARCOAL GRAY (0483)

$18.99

$

In Stock, only 2 left!

0

MTD 781-0351-0637

Log Splitter Adjustable Gib, 2" - POWDER BLACK (0637)

$18.99

$

In Stock, only 2 left!

0

$18.99

$

In Stock, only 2 left!

0

14

MTD 936-0116

Flat Washer.635 x.93 x.06

$6.99

$

In Stock, only 1 left!

0

15

MTD 712-3022

Hex Lock Nut 1/2-13

$3.99

$

In Stock, Qty 8

0

16

MTD 681-04071A-0637

Beam Assembly

$1726.99

$

Usually ships in 3-6 days

0

17

MTD 710-3056

Hex Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

18

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

19

MTD 781-04426-4044

Dislodger Bracket

$81.99

$

Usually ships in 3-6 days

0

20

MTD 781-0790-0637

Back Plate
(Superseded to 781-0790A-0637)

$40.99

$

In Stock, only 2 left!

0

21

MTD 737-04093

Inlet Filter

$90.99

$

Usually ships in 3-6 days

0

22

MTD 727-0443

Return Hose 3/4" ID x 44" Lg.

$118.99

$

In Stock, only 1 left!

0

23

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

24

MTD 737-0316

Filter Housing
(Superseded to 753-06643)

$97.99

$

Usually ships in 3-6 days

0

25

MTD 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 6

0

26

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 1 left!

0

27

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0359

Slotted Nut 3/4-16

$11.99

$

In Stock, only 1 left!

0

29

MTD 634-0186

Wheel Assembly

$363.99

$

In Stock, only 1 left!

0

30

MTD 936-0351

Flat Washer.760 ID x.500 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

31

MTD 737-0312

Adapter 3/4-14

$51.99

$

Usually ships in 3-6 days

0

32

MTD 781-0526A

Hose Guard

$53.99

$

Usually ships in 3-6 days

0

33

MTD 737-0348A

Vented Dipstick

$23.99

$

In Stock, only 1 left!

0

34

MTD 711-1587

Clevis Pin

$

$

Not available

35

MTD 781-0690

Lock Rod

$35.99

$

In Stock, only 1 left!

0

36

MTD 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

37

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

38

MTD 732-0583

Compression Spring

$12.99

$

In Stock, only 1 left!

0

39

MTD 781-04180-0637

Log Tray Bracket

$35.99

$

In Stock, Qty 6

0

40

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

41

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

MTD 781-04179-0637

Log Tray

$50.99

$

In Stock, Qty 7

0

43

MTD 981-04040A-0637

Frame Assembly

$909.99

$

Usually ships in 3-6 days

0

44

MTD 710-0521

Hex Bolt 3/8-16 x 3

$5.49

$

In Stock, Qty 10

0

45

MTD 719-0353

Coupling Shield

$54.99

$

Usually ships in 3-6 days

0

46

MTD 914-0122

Square Key 3/16" x.75
(Superseded to 714-0122)

$

$

Not available

47

MTD 710-1842

Screw, 1/4-20 x .38
(Superseded to 710-1842A)

$5.49

$

Usually ships in 3-6 days

0

47

MTD 718-04392

Coupling, .500

$14.99

$

In Stock, only 3 left!

0

47

MTD 718-04395

Coupling, .875

$18.99

$

Usually ships in 3-6 days

0

47

MTD 735-04103

Spider Coupling

$14.99

$

In Stock, only 2 left!

0

48

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

MTD 781-0097-0637

Rear Coupling Support Bracket

$69.99

$

In Stock, only 3 left!

0

50

MTD 781-1024A-0637

Fender Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

51

MTD 727-04130

Hose

$106.99

$

In Stock, only 1 left!

0

52

MTD 918-04127

Gear Pump

$751.99

$

Usually ships in 3-6 days

0

53

MTD 737-0329

45 Degree Elbow Fitting

$

$

Not available

54

MTD 727-0502

High Pressure Hydraulic Hose

$209.99

$

Usually ships in 3-6 days

0

55

MTD 781-0788-0637

Tongue Assembly

$

$

Not available

56

MTD 747-1261

Latch Rod

$39.99

$

Usually ships in 3-6 days

0

57

MTD 781-1045-0637

Latch

$59.99

$

Usually ships in 3-6 days

0

58

MTD 932-3127

Compression Spring

$4.49

$

In Stock, Qty 6

0

59

MTD 736-0371

Flat Washer

$4.49

$

In Stock, only 3 left!

0

60

MTD 781-0538A

Hose Guard

$35.99

$

Usually ships in 3-6 days

0

61

MTD 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 7

0

62

MTD 936-0185

Flat Washer,.375 x.738 x.063
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

63

MTD 747-04539

Hydraulic Valve Control
(Superseded to 747-04539A)

$45.99

$

In Stock, only 1 left!

0

64

MTD 681-04030

Hitch Coupling Assembly

$72.99

$

Usually ships in 3-6 days

0

65

MTD 713-0433A

Chain

$44.99

$

In Stock, only 1 left!

0

66

MTD 731-2496A

Fender

$82.99

$

Usually ships in 3-6 days

0

67

MTD 911-0813

Clevis Pin

$6.99

$

Usually ships in 3-6 days

0

68

MTD 720-04088

Grip

$10.99

$

Usually ships in 3-6 days

0

69

MTD 732-0194

Spring Pin

$4.99

$

In Stock, only 2 left!

0

70

MTD 781-0789-0637

Jack Stand

$

$

Not available

71

MTD 915-0120

Spiral Pin
(Superseded to 715-0120)

$10.99

$

In Stock, only 1 left!

0

72

MTD 710-0650

TT Screw, 5/16-18 x 0.875"

$3.99

$

In Stock, Qty 20+

0

73

MTD 710-0602

TT Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

74

MTD 711-04585

Clevis Pin

$6.99

$

In Stock, only 1 left!

0

75

MTD 913-04036

Valve Handle Link

$21.99

$

Usually ships in 3-6 days

0

76

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

77

MTD 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

78

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

79

MTD 941-0987

Roller Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

80

MTD 921-0168

Dust Seal

$9.49

$

In Stock, Qty 18

0

81

MTD 734-0872

Tire, 16 x 4.8 x 8.0

$169.99

$

Usually ships in 3-6 days

0

82

MTD 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

83

MTD 634-0188

Rim Assembly

$175.99

$

Usually ships in 3-6 days

0

84

MTD 710-04683

Hex Washer Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0
