247.776350 (24A-424F799) - Craftsman Chipper Shredder (2005) (Sears) General Assembly Parts Diagram

Chipper Shredder

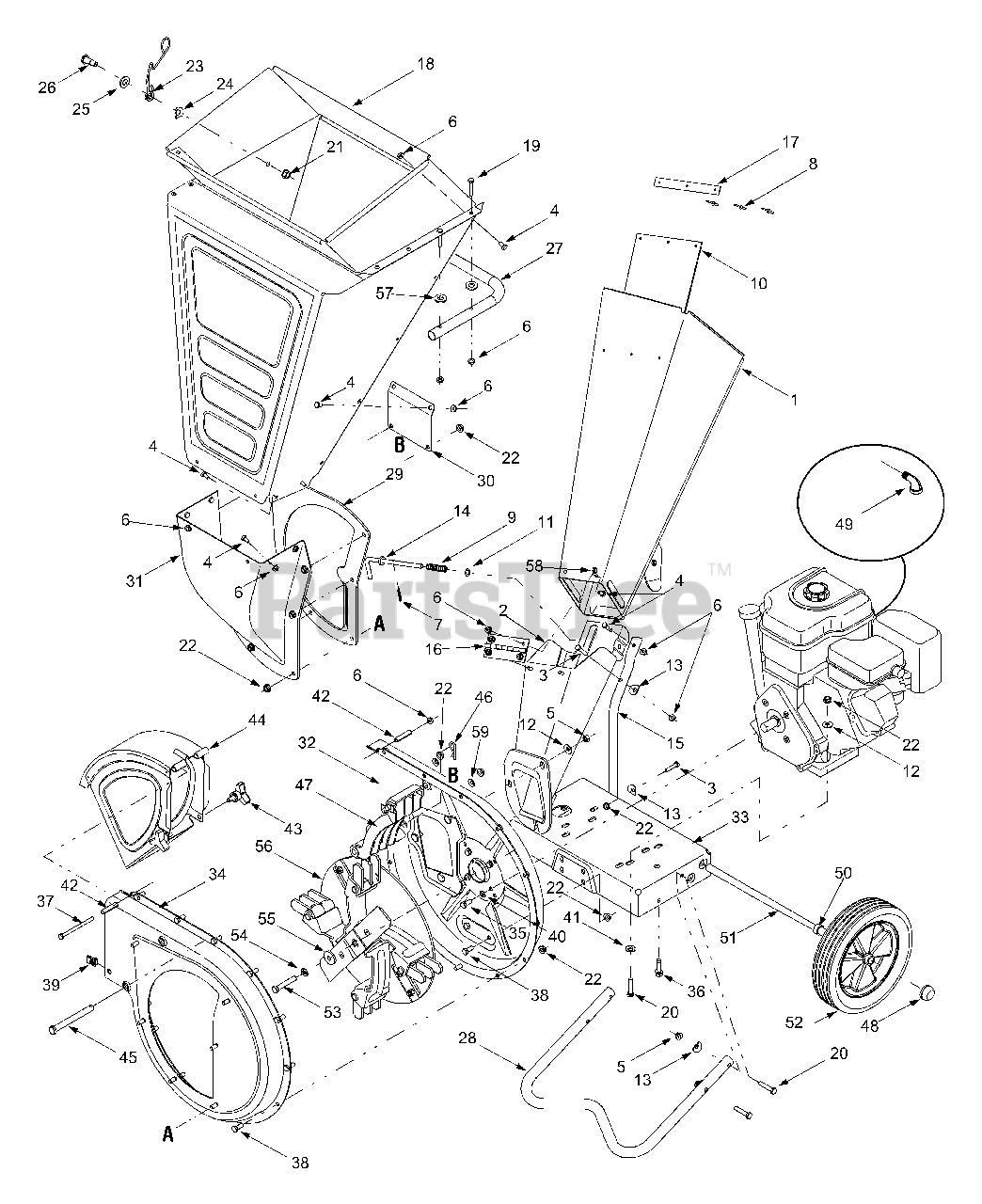

General Assembly Parts Diagram

  • Title

1

MTD 681-04006

Upper Chipper Chute Assembly
(Superseded to 981-04006)

Variations

MTD 681-04006-0638

CHUTE ASM-UPPER - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

MTD 681-04006-0721

USE 981-04006-4044 CHUTE ASM- - SEARS RED (0721)

$216.99

$

Usually ships in 3-6 days

0

MTD 681-04006-4021

CHUTE ASM-UPPER - CUB YELLOW 2 (4021)

$216.99

$

Usually ships in 3-6 days

0

MTD 681-04006-4044

CHUTE ASM-UPPER - CRAFTSMAN RED (4044)

$216.99

$

Usually ships in 3-6 days

0

$196.99

$

Usually ships in 3-6 days

0

2

MTD 681-04007

Lower Chipper Chute Assembly

Variations

MTD 681-04007-0638

CHUTE ASM-LOWER - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

MTD 681-04007-0721

Lower Chute Assembly - SEARS RED (0721)

$

$

Not available

MTD 681-04007-4044

Lower Chute Assembly - CRAFTSMAN RED (4044)

$

$

Not available

MTD 681-04007-4021

CHUTE ASSY-LOWER - CUB YELLOW 2 (4021)

$

$

Not available

$133.99

$

Usually ships in 3-6 days

0

3

MTD 710-0106

Hex Cap Screw, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

4

MTD 710-3013

Hex Cap Screw, 1/4-20 x.5

$4.99

$

In Stock, Qty 11

0

5

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

8

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, only 4 left!

0

9

MTD 732-0306A

Compression Spring,.531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

10

MTD 735-0249A

Chute Flap

$24.99

$

Usually ships in 3-6 days

0

11

MTD 736-0140

Flat Washer

$7.49

$

In Stock, Qty 6

0

12

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0451

Washer,.320 ID x.93 OD

$4.49

$

In Stock, Qty 11

0

14

MTD 747-04163

Lock Rod
(Superseded to 947-04163)

$14.99

$

Usually ships in 3-6 days

0

15

MTD 749-1004

Chipper Chute Support

Variations

MTD 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$43.99

$

Usually ships in 3-6 days

0

MTD 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

16

MTD 781-04032

Chipper Chute Hinge
(Superseded to 981-04032)

$12.99

$

In Stock, only 1 left!

0

17

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

18

MTD 681-04011

Shredder Hopper Assembly
(Superseded to 981-04011)

Variations

MTD 681-04011-0638

HOPPER ASM-SHREDDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-04011-0721

No Longer Available - SEARS RED (0721)

$

$

Not available

MTD 681-04011-4021

HOPPER ASM-SHREDDE - CUB YELLOW 2 (4021)

$

$

Not available

MTD 681-04011-4044

HOPPER ASM-SHREDDE - CRAFTSMAN RED (4044)

$

$

Not available

$

$

19

MTD 710-0809

Hex Cap Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 17

0

20

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

MTD 732-04167

Torsion Spring
(Superseded to 932-04167)

$10.99

$

In Stock, Qty 10

0

24

MTD 736-0182

Spring Washer,.50 x 1.0 x.022

$4.49

$

In Stock, Qty 7

0

25

MTD 736-0326

Flat Washer,.50 x 1.0 x.0125

$4.49

$

In Stock, only 2 left!

0

26

MTD 738-0430

Shoulder Screw, 3/8-16,.50 x.685

$11.99

$

In Stock, only 2 left!

0

27

MTD 749-04103

Hopper Handle
(Superseded to 749-04103-0637)

Variations

MTD 749-04103-0637

HANDLE-HOPPER - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

28

MTD 749-04104

Tube Support
(Superseded to 749-04104-0637)

Variations

MTD 749-04104-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

29

MTD 781-04007

Shredder Plate

Variations

MTD 781-04007-0638

Shredder Plate - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

MTD 781-04007-4021

PLATE-SHREDDER - CUB YELLOW 2 (4021)

$46.99

$

Usually ships in 3-6 days

0

MTD 781-04007-0721

PLATE-SHREDDER - SEARS RED (0721)

$49.99

$

Usually ships in 3-6 days

0

MTD 781-04007-4044

PLATE-SHREDDER - CRAFTSMAN RED (4044)

$49.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

30

MTD 781-04027

Hopper Support Bracket

Variations

MTD 781-04027-0721

BRACKET-HOPPER SUPT - SEARS RED (0721)

$20.99

$

In Stock, only 1 left!

0

MTD 781-04027-4021

BRACKET-HOPPER SUPPORT - CUB YELLOW 2 (4021)

$22.99

$

Usually ships in 3-6 days

0

MTD 781-04027-4044

BRACKET-HOPPER SUPT - CRAFTSMAN RED (4044)

$20.99

$

In Stock, only 1 left!

0

MTD 781-04027-0638

BRACKET-HOPPER SUP - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

31

MTD 781-04033

Inlet Guide

Variations

MTD 781-04033-0638

GUIDE-INLET - MTD/TROY-BILT RED (0638)

$93.99

$

Usually ships in 3-6 days

0

MTD 781-04033-0721

GUIDE-INLET - SEARS RED (0721)

$100.99

$

Usually ships in 3-6 days

0

MTD 781-04033-4021

GUIDE-INLET - CUB YELLOW 2 (4021)

$93.99

$

Usually ships in 3-6 days

0

MTD 781-04033-4044

GUIDE-INLET - CRAFTSMAN RED (4044)

$100.99

$

Usually ships in 3-6 days

0

$81.99

$

Usually ships in 3-6 days

0

32

MTD 681-0117

Inner Flail Housing Assembly

Variations

MTD 681-0117-0637

Flail Housing Assembly - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0483

Flail Housing Assembly - CHARCOAL GRAY (0483)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0638

Flail Housing Assembly - MTD/TROY-BILT RED (0638)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0691

Flail Housing Assembly - BLACK JACK (0691)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0721

Flail Housing Assembly - SEARS RED (0721)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-4044

Flail Housing Assembly - CRAFTSMAN RED (4044)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0689

Flail Housing Assembly - POLO GREEN (0689)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-0709

Flail Housing Assembly - MASTERCRAFT GREEN (0709)

$185.99

$

Usually ships in 3-6 days

0

MTD 681-0117-4021

Flail Housing Assembly - CUB YELLOW 2 (4021)

$185.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

33

MTD 681-0184A

Frame Assembly
(Superseded to 681-0184C)

Variations

MTD 681-0184A-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184A-0721

FRAME ASM-SHREDDER - SEARS RED (0721)

$117.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

34

MTD 681-04002

Outer Flail Housing Assembly

Variations

MTD 681-04002-0638

HOUSING ASM-FLAIL - MTD/TROY-BILT RED (0638)

$141.99

$

Usually ships in 3-6 days

0

MTD 681-04002-0721

HOUSING ASM-FLAIL - SEARS RED (0721)

$141.99

$

Usually ships in 3-6 days

0

MTD 681-04002-4044

HOUSING ASM-FLAIL - CRAFTSMAN RED (4044)

$141.99

$

Usually ships in 3-6 days

0

MTD 681-04002-4021

HOUSING ASM-FLAIL - CUB YELLOW 2 (4021)

$141.99

$

Usually ships in 3-6 days

0

$141.99

$

Usually ships in 3-6 days

0

35

MTD 710-0157

Hex Cap Screw, 5/16-24 x.75

$4.49

$

In Stock, Qty 15

0

36

MTD 710-0502A

Hex Sems Screw, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

37

MTD 710-0825

Hex Cap Screw, 1/4-20 x 3.75

$5.49

$

In Stock, only 3 left!

0

38

MTD 710-3008

Hex Cap Screw, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

39

MTD 726-0211

U-Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

40

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 736-0170

Special Lock Washer, 5/16

$5.99

$

Usually ships in 3-6 days

0

42

MTD 750-0793

Hinge Spacer,.265 x.380 x 1.66
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

43

MTD 681-0048

Knob, 5/16-18
(Superseded to 720-0170)

$11.99

$

In Stock, only 2 left!

0

44

MTD 681-0094

Chute Deflector Assembly
(Superseded to 681-0094A)

Variations

MTD 681-0094-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0498

CHUTE-DISCHARGE - OLD CUB YELLOW (0498)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0691

CHUTE-DISCHARGE - BLACK JACK (0691)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0721

Discharge Chute - SEARS RED (0721)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4021

CHUTE-DISCHARGE - CUB YELLOW 2 (4021)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4044

Discharge Chute - CRAFTSMAN RED (4044)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0689

CHUTE-DISCHARGE - POLO GREEN (0689)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0709

CHUTE-DISCHARGE - MASTERCRAFT GREEN (0709)

$129.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

45

MTD 711-0835

Clevis Pin,.50 x 4.62
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

46

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

47

MTD 719-04070

Shredder Screen

$48.99

$

In Stock, only 1 left!

0

48

MTD 726-0214

Push Cap, 5/8

$10.99

$

In Stock, Qty 5

0

49

MTD 737-0195

Oil Drain Tube
(Superseded to 937-0195)

$16.99

$

Usually ships in 3-6 days

0

50

MTD 750-0786

Spacer,.64 x.88 x.38
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

51

MTD 738-0814

Axle, 21.21"

$44.99

$

In Stock, only 1 left!

0

52

MTD 734-1600

Wheel, 10 x 2.5

$93.99

$

Usually ships in 3-6 days

0

53

MTD 710-1254

Hex Cap Screw, 3/8-24 x 2.25

$7.99

$

In Stock, Qty 8

0

54

MTD 736-0217

Lock Washer, 3/8

$4.49

$

In Stock, Qty 6

0

55

MTD 736-0247

Flat Washer,.406 x 1.25

$9.49

$

In Stock, Qty 12

0

56

MTD 681-04009

Impeller Assembly
(Superseded to 981-04094)

Note: (See "Impeller" for Impeller Parts)

$613.99

$

Usually ships in 3-6 days

0

57

MTD 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

58

MTD 726-0233

Push Nut,.25ID x.50OD

$4.49

$

In Stock, Qty 20+

0

59

MTD 726-0201

Speed Nut,.3125ID

$6.99

$

In Stock, only 2 left!

0

MTD 664-04024

Debris Collection Bag
(Superseded to 964-04024A)

Note: (Not Shown)

$112.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
