247.776051 (24A-464N799) - Craftsman Chipper Shredder (2014) Impeller & Hopper Parts Diagram

Chipper Shredder

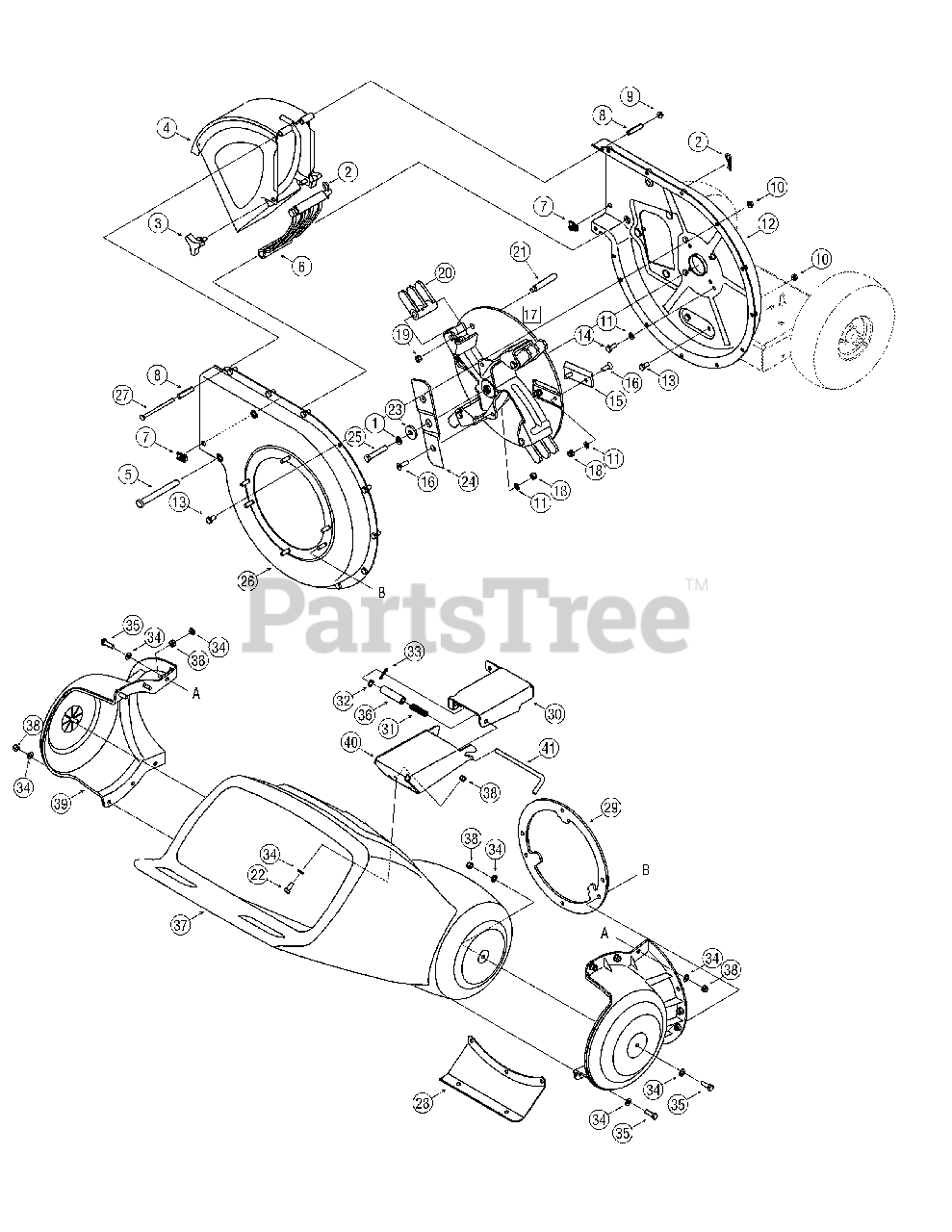

Impeller & Hopper Parts Diagram

  • Title

1

MTD 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

2

MTD 914-0149B

Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

3

MTD 720-0170

Wing Knob 5/16-18

$11.99

$

In Stock, only 2 left!

0

4

MTD 681-0094A-4044

Chute Deflector Assembly
(Superseded to 681-0094A-0637)

$129.99

$

Usually ships in 3-6 days

0

5

MTD 911-0835

Clevis Pin

$12.99

$

In Stock, only 3 left!

0

6

MTD 781-0457-0637

Shredder Screen

$41.99

$

In Stock, Qty 11

0

7

MTD 926-0211

U-Nut 5/16-18
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

8

MTD 950-0793

Spacer

$3.99

$

In Stock, Qty 12

0

9

MTD 912-3027

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 17

0

10

MTD 712-3004A

Hex Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

12

MTD 681-04116-4044

Inner Impeller Housing Assembly
(Superseded to 681-05063-4044)

$150.99

$

Usually ships in 3-6 days

0

13

MTD 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

14

MTD 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

15

MTD 942-0544B

Chipper Blade

$89.99

$

In Stock, Qty 7

0

16

MTD 710-1054

Hex Cap Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

17

MTD 681-04095

Impeller Assembly

$458.99

$

Usually ships in 3-6 days

0

18

MTD 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

19

MTD 712-0266A

Nut, Jam Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

20

MTD 719-04308

Flail Blade

$18.99

$

In Stock, Qty 20+

0

21

MTD 738-04286A

Shoulder Pin, .5 x 2.625

$4.99

$

In Stock, Qty 12

0

22

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0247

Flat Washer 3/8 x 1.25

$9.49

$

In Stock, Qty 14

0

24

MTD 942-0571

Shredder Blade

$37.99

$

In Stock, Qty 10

0

25

MTD 710-1254

Hex Cap Screw 3/8-24 x 2.25

$7.99

$

In Stock, Qty 8

0

26

MTD 681-0004A-4044

Outer Impeller Housing Assembly

$219.99

$

Usually ships in 3-6 days

0

27

MTD 710-0825

Hex Cap Screw 1/4-20 x 3.75

$5.49

$

In Stock, only 3 left!

0

28

MTD 781-0515-0637

Front Support Bracket

$53.99

$

Usually ships in 3-6 days

0

29

MTD 781-0574-0637

Shredder Plate

$185.99

$

Usually ships in 3-6 days

0

30

MTD 681-0104-4044

Rear Hopper Bracket Assembly
(Superseded to 681-0104-0691)

$63.99

$

Usually ships in 3-6 days

0

31

MTD 932-0306A

Compression Spring 1.75

$8.49

$

In Stock, only 4 left!

0

32

MTD 936-0117

Flat Washer

$7.49

$

Usually ships in 3-6 days

0

33

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

34

MTD 936-0264

Flat Washer.330 ID x .630 OD

$6.99

$

In Stock, only 3 left!

0

35

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 5

0

36

MTD 748-0453

Spacer, .375 ID x 2.50 LG

$9.99

$

Usually ships in 3-6 days

0

37

MTD 731-1707A

Hopper Assembly

$436.99

$

Usually ships in 3-6 days

0

38

MTD 912-0429

Hex Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

39

MTD 731-1710A

Hopper Collar

$59.99

$

In Stock, Qty 8

0

40

MTD 681-0123-4044

Front Hopper Bracket Assembly
(Superseded to 681-0123-0637)

$63.99

$

In Stock, only 1 left!

0

41

MTD 711-1128

Lock Rod

$16.99

$

Usually ships in 3-6 days

0
