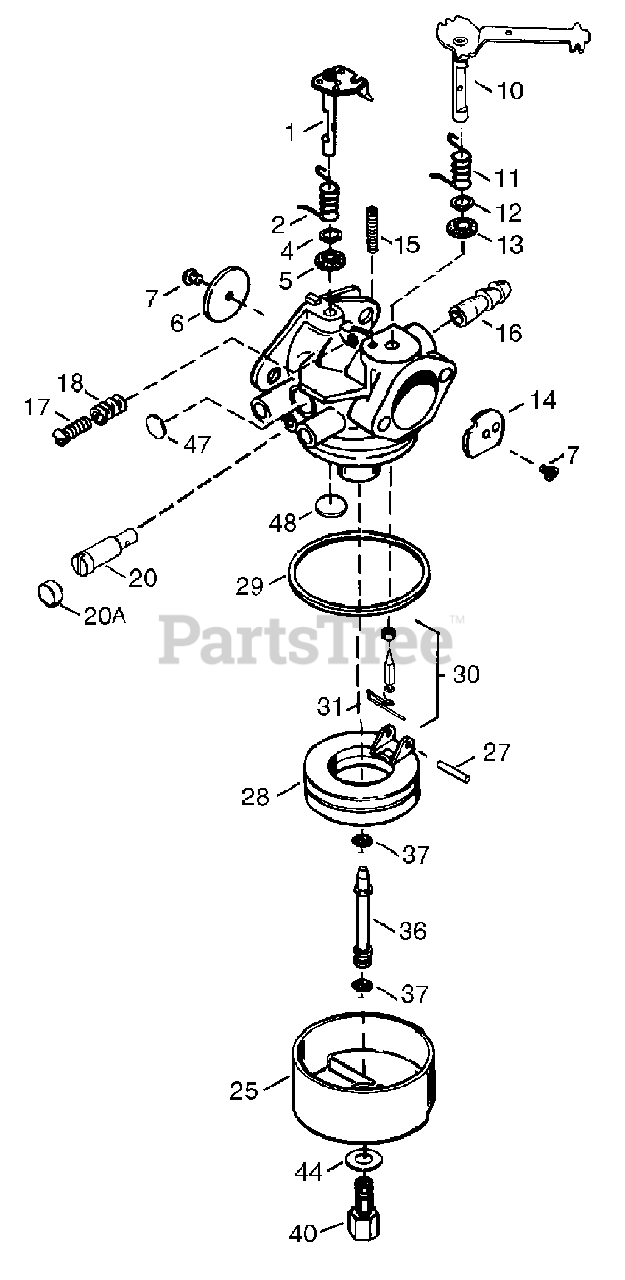

247.775880 (24A-495D099) - Craftsman Chipper Shredder (2002) (Sears) Carburetor Parts Diagram

Chipper Shredder

Carburetor Parts Diagram

  • Title

Tecumseh 640112

Carburetor

Note: (Incl. 184 of Engine Parts List)

$109.99

$

In Stock, only 1 left!

0

1

Tecumseh 631776A

Throttle Shaft & Lever Assembly

$16.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

4

Tecumseh 631184

Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

5

Tecumseh 631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 640109

Throttle Shutter

$13.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Shutter Screw

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632740

Choke Shaft & Lever Assembly

$5.99

$

Usually ships in 3-12 days

0

11

Tecumseh 632043

Choke Return Spring

$2131.99

$

Usually ships in 3-12 days

0

12

Tecumseh 631184

Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

13

Tecumseh 631183

Dust Seal (Choke)

$1.99

$

In Stock, Qty 12

0

14

Tecumseh 631753

Choke Shutter

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Tecumseh 651025

Throttle Crack Screw/Idle Speed Screw

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 640027

Idle Mixture Screw

$3.99

$

In Stock, Qty 5

0

20A

Tecumseh 640053

Idle Restrictor Screw

$1.49

$

In Stock, Qty 5

0

25

Tecumseh 631867

Float Bowl

$3.49

$

In Stock, Qty 12

0

27

Tecumseh 631024

Float Shaft

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

29

Tecumseh 631028

Float Bowl "O"-Ring
(Superseded to 631028A)

$2.49

$

In Stock, Qty 9

0

30

Tecumseh 631021

Inlet Needle, Seat & Clip
(Superseded to 631021B)

Note: (Incl. 31)

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 640113

Main Nozzle Tube

$6.99

$

Usually ships in 3-12 days

0

37

Tecumseh 632547

O Ring, Main Nozzle Tube

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640114

High Speed Bowl Nut

$7.49

$

Usually ships in 3-12 days

0

44

Tecumseh 27110

Bowl Nut Washer
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, Qty 5
