247.775880 (24A-495D099) - Craftsman Chipper Shredder (1999) (Sears) General Assembly Parts Diagram

Chipper Shredder

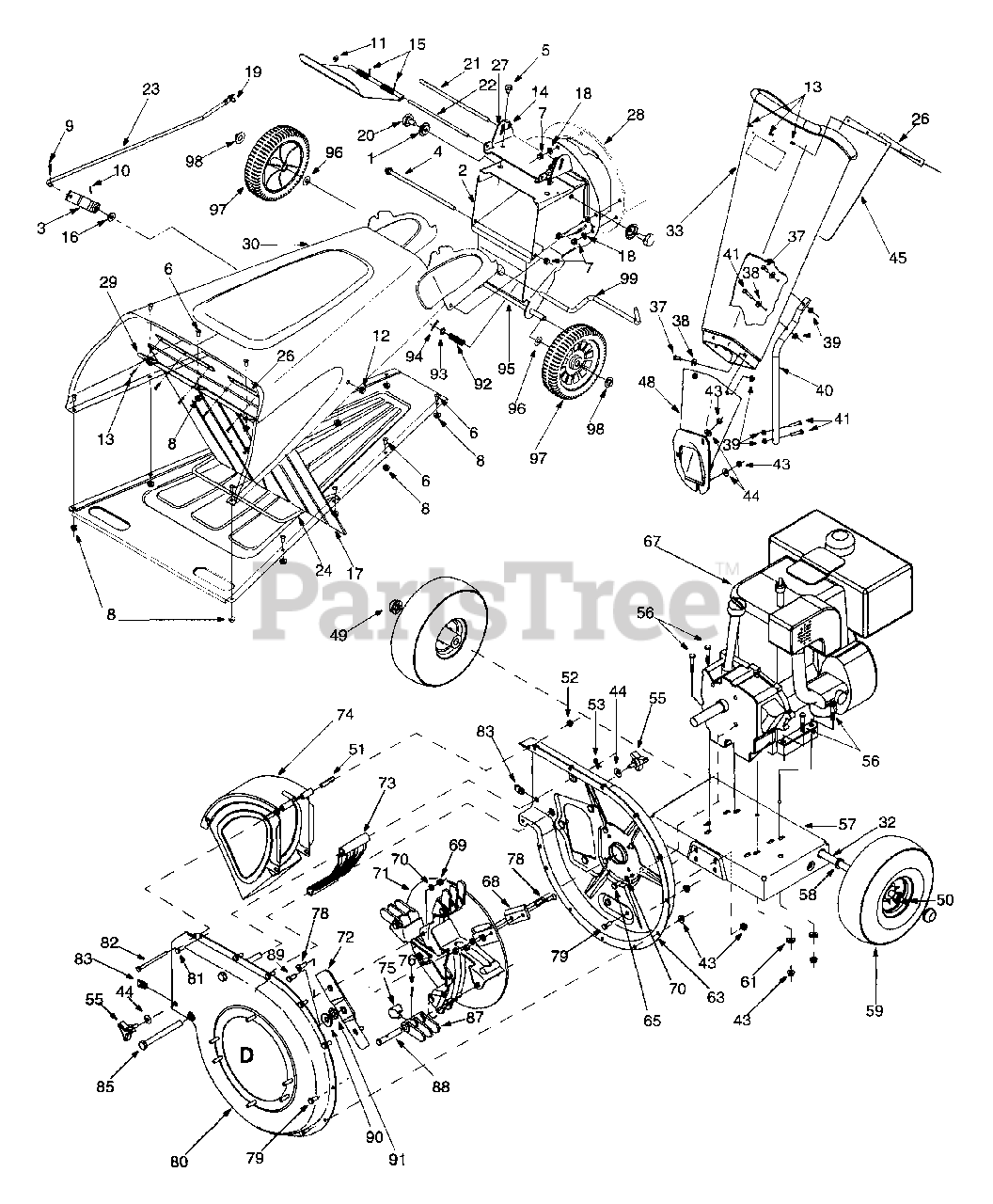

General Assembly Parts Diagram

  • Title

1

MTD 11480

Stop Washer

$

$

Not available

2

MTD 681-0118

Inlet Guide Assembly

Variations

MTD 681-0118-0638

No Longer Available GUIDE ASSEMBLY-INL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0118-0689

No Longer Available GUIDE ASSEMBLY-INL - POLO GREEN (0689)

$

$

Not available

$

$

3

MTD 681-0144

Arm Bracket Assembly

$

$

Not available

4

MTD 710-0542

Hex Flange Bolt: 5/16-18 x 8.375" (Gr.5)

$

$

Not available

5

MTD 710-0607

Hex Washer Head Self-Tapping Screw: 5/16-18 x 0.5"

$6.99

$

In Stock, Qty 12

0

6

MTD 710-3256

Button-Head Screw 1/4-20 x 0.5"

$10.99

$

Usually ships in 3-6 days

0

7

MTD 712-0429

Lock Nut: 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-3027

Hex Flange Lock Nut: 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

10

MTD 715-0129

Spiral Pin

$4.99

$

In Stock, only 1 left!

0

11

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

12

MTD 726-0135

Speed Cap Nut

$6.99

$

In Stock, only 1 left!

0

13

MTD 728-0175

Pop Rivet

$4.99

$

In Stock, Qty 11

0

14

MTD 732-0546

Torsion Spring
(Superseded to 932-0546)

$4.99

$

In Stock, only 2 left!

0

15

MTD 732-0629

Hopper Door Spring
(Superseded to 932-0629)

$

$

Not available

16

MTD 735-0127

Rubber Washer

$6.99

$

Usually ships in 3-6 days

0

17

MTD 735-0651

Hopper Flap

$

$

Not available

18

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 738-0137A

Shdr. Scr: .340 x .285 x 1/4-20

$10.99

$

In Stock, Qty 10

0

20

MTD 738-0946

Shdr. Scr: .56 x .165 x 5/16-18

$

$

Not available

21

MTD 747-0531A

Rel. Rod: 5/16" dia.

$

$

Not available

22

MTD 747-0747

Hopper Door Rod

$

$

Not available

23

MTD 747-1124

Flap Retaining Rod

$

$

Not available

24

MTD 747-1125

Flap Retaining Bail

$

$

Not available

?25

MTD 781-0492A

Hopper Pivot Door

Variations

MTD 781-0492A-0483

No Longer Available DOOR-HOPPE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0492A-0637

No Longer Available DOOR-HOPPER PIVOT - POWDER BLACK (0637)

$

$

Not available

MTD 781-0492A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0492A-0689

No Longer Available DOOR-HOPPER PIVOT - POLO GREEN (0689)

$

$

Not available

$

$

26

MTD 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

27

MTD 781-0698

Hopper Lock Bracket

Variations

MTD 781-0698-0638

BRACKET- HOPPER LO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0698-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0698-0689

No Longer Available BRACKET- H - POLO GREEN (0689)

$

$

Not available

$

$

28

MTD 781-0715

Shredder Plate
(Superseded to 781-0715-0637)

Variations

MTD 781-0715-0637

PLATE-SHREDDER - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 781-0752

Flap Mounting Bracket

Variations

MTD 781-0752-0689

No Longer Available BRACKET-MT - POLO GREEN (0689)

$

$

Not available

$

$

30

MTD 781-0754-0689

Upper Hopper

$

$

Not available

?31

MTD 781-0755-0689

Lower Hopper

$

$

Not available

32

MTD 738-0813

Shredder Axle

$52.99

$

Usually ships in 3-6 days

0

33

MTD 731-1899

Chipper Chute
(Superseded to 753-05094)

$146.99

$

In Stock, only 1 left!

0

37

MTD 710-0751

Hex Bolt 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

38

MTD 736-0173

Flat Washer .28 I.d. x .74 O.d.

$4.49

$

In Stock, only 4 left!

0

39

MTD 712-3027

Flanged Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

40

MTD 749-1004

Chipper Chute Support

Variations

MTD 749-1004-0637

SUPPORT-CHUTE - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0638

SUPPORT-CHUTE - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0689

SUPPORT-CHUTE - POLO GREEN (0689)

$46.99

$

Usually ships in 3-6 days

0

MTD 749-1004-0721

SUPPORT-CHUTE - SEARS RED (0721)

$43.99

$

Usually ships in 3-6 days

0

MTD 749-1004-4044

SUPPORT-CHUTE - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

41

MTD 710-0106

Hex Scr. 1/4-20 x .625 (Gr. 2)

$3.99

$

In Stock, only 2 left!

0

43

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0242

Bell Washer .345" I.d. x .88"

$4.49

$

In Stock, Qty 20+

0

45

MTD 735-0249

Shredder Chute Flap
(Superseded to 735-0249A)

$24.99

$

Usually ships in 3-6 days

0

48

MTD 681-0068-0689

Chipper Chute Assembly
(Superseded to 681-0068A)

$177.99

$

Usually ships in 3-6 days

0

49

MTD 726-0214

Push Cap 5/8" dia.

$10.99

$

In Stock, only 3 left!

0

50

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

51

MTD 750-0793

Chute Hinge Spacer
(Superseded to 950-0793)

$3.99

$

In Stock, only 2 left!

0

52

MTD 712-3027

Hex Ctr. Lock Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

53

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

55

MTD 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

56

MTD 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

57

MTD 781-0510B

Shredder Frame
(Superseded to 681-0184C)

Variations

MTD 781-0510B-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 781-0510B-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 781-0510B-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

58

MTD 736-0366

Flat Washer 1.12 x .64 x .120

$4.49

$

In Stock, only 2 left!

0

59

MTD 734-1845

Wheel Assembly
(Superseded to 753-08108)

$126.99

$

Usually ships in 3-6 days

0

61

MTD 736-0170

Special Lock Washer

$5.99

$

Usually ships in 3-6 days

0

63

MTD 681-0117-0689

Flail Housing Ass'y. - Inner
(Superseded to 681-0117-0637)

$185.99

$

Usually ships in 3-6 days

0

65

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

67

Engine, Tecumseh

$

$

Not available

68

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 10

0

69

MTD 712-0411

Hex Top Lock Nut 5/16-24 (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

70

MTD 736-0119

Lock Washer 5/16" I.d.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

MTD 681-0030

Impeller assembly
(Superseded to 981-04096)

$600.99

$

Usually ships in 3-6 days

0

72

MTD 742-0571

Shredder Blade
(Superseded to 942-0571)

$37.99

$

Usually ships in 3-6 days

0

73

MTD 781-0457-0637

Shredder Screen

$41.99

$

In Stock, Qty 5

0

74

MTD 681-0094

Discharge Chute Assembly
(Superseded to 681-0094A)

Variations

MTD 681-0094-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0498

CHUTE-DISCHARGE - OLD CUB YELLOW (0498)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0691

CHUTE-DISCHARGE - BLACK JACK (0691)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0721

Discharge Chute - SEARS RED (0721)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4021

CHUTE-DISCHARGE - CUB YELLOW 2 (4021)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-4044

Discharge Chute - CRAFTSMAN RED (4044)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0689

CHUTE-DISCHARGE - POLO GREEN (0689)

$129.99

$

Usually ships in 3-6 days

0

MTD 681-0094-0709

CHUTE-DISCHARGE - MASTERCRAFT GREEN (0709)

$129.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

75

MTD 781-0735

Retaining Clip

$4.49

$

In Stock, Qty 20+

0

76

MTD 715-0166

Spring Roll Pin

$6.99

$

In Stock, Qty 15

0

78

MTD 710-1054

Flat Head Scr 5/16-24 x .75"

$4.49

$

In Stock, Qty 20+

0

79

MTD 710-3008

Hex Bolt 5/16-18 x .75" (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

80

MTD 681-0004A-0689

Flail Housing Ass'y. - Outer

$219.99

$

Usually ships in 3-6 days

0

81

UNKNOWN

$

$

Not available

82

MTD 710-0825

Hex Bolt 1/4-20 x 3.75"

$5.49

$

In Stock, only 1 left!

0

83

MTD 726-0211

U Nut 5/16-18

$4.49

$

In Stock, only 1 left!

0

85

MTD 711-0835

Clevis Pin
(Superseded to 911-0835)

$12.99

$

Usually ships in 3-6 days

0

87

MTD 719-0329

Flail Blade

$31.99

$

In Stock, Qty 5

0

88

MTD 711-0833B

Clevis Pin
(Superseded to 911-0833B)

$12.99

$

In Stock, only 2 left!

0

89

MTD 710-1254

Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8)

$7.99

$

In Stock, Qty 9

0

90

MTD 736-0217

Lock Washer 3/8"

$4.49

$

In Stock, Qty 9

0

91

MTD 736-0247

Flat Washer .406" I.d. x 1.25"

$9.49

$

In Stock, Qty 16

0

92

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

93

MTD 736-0117

Flat Washer
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

94

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

95

MTD 711-1304

Axle Shaft

$

$

Not available

96

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

97

MTD 734-1797

Complete Wheel: Grey

$

$

Not available

98

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

99

MTD 747-0982

Lock Rod

$

$

Not available

?100

MTD 764-0501

Shredder Bag
(Superseded to 964-0501)

$

$

Not available
