247.770990 (24A-070H799) - Craftsman Walk-Behind Yard Vacuum (2005) (Sears) Handle Parts Diagram

Walk-Behind Yard Vacuum

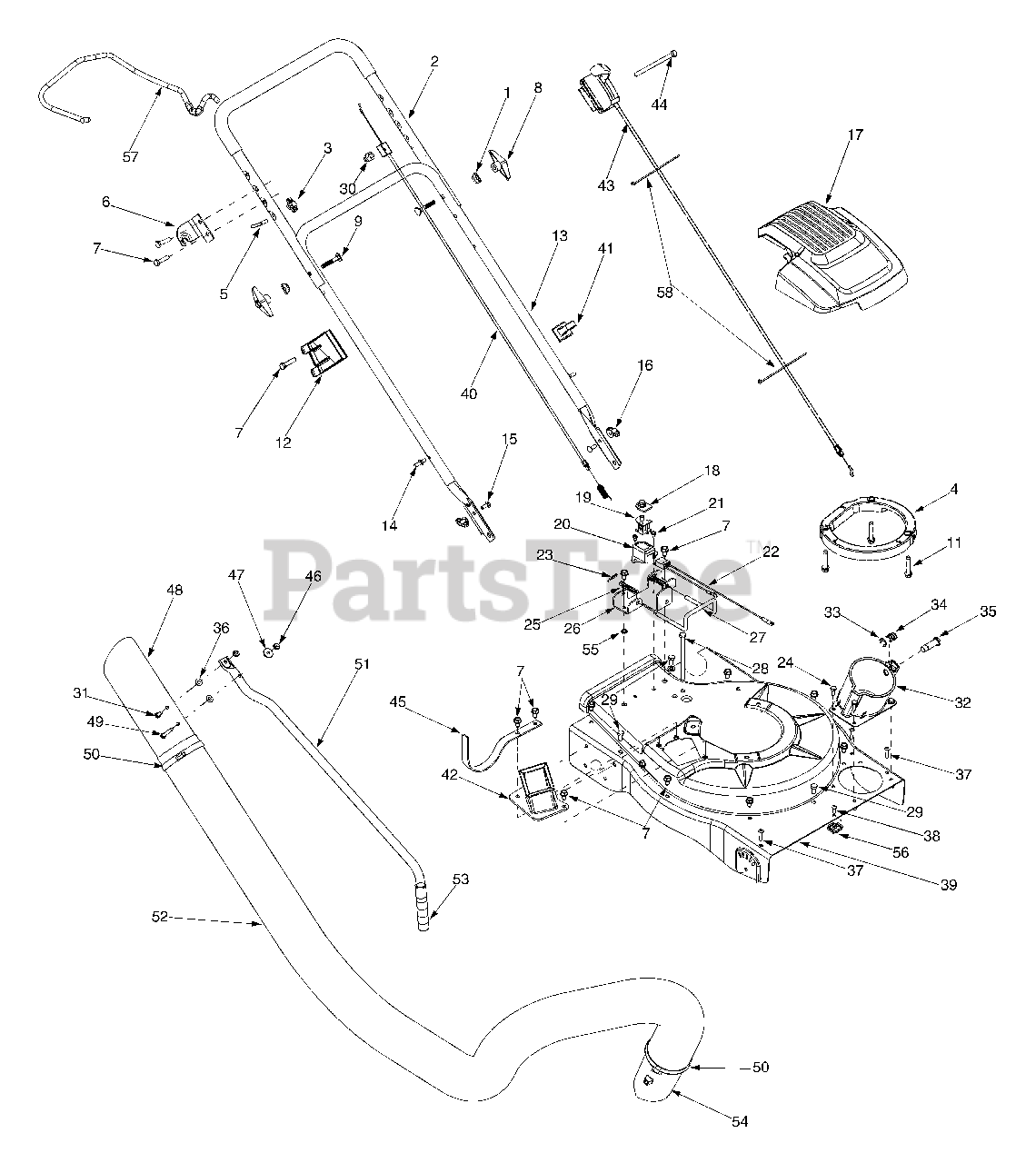

Handle Parts Diagram

  • Title

1

MTD 736-0451

Saddle Washer,.320 x.93

$4.49

$

In Stock, Qty 11

0

2

MTD 749-04163

Upper Handle
(Superseded to 749-04163A)

Variations

MTD 749-04163-0637

HANDLE-UPPER BLA - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 631-04118

Engine Spacer Ass'y

$38.99

$

Usually ships in 3-6 days

0

5

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

6

MTD 781-1056

Upper Hose Handle Bracket
(Superseded to 781-1056-0637)

Variations

MTD 781-1056-0637

Handle Bracket, Upper - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

7

MTD 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

8

MTD 720-0241

Handle Knob 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

9

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

11

MTD 710-1008

Screw, 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

12

MTD 731-04911

Lower Hose Handle Bracket

$11.99

$

Usually ships in 3-6 days

0

13

MTD 749-04165

Lower Handle
(Superseded to 749-04165-0637)

Variations

MTD 749-04165-0637

Lower Handle, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

14

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

15

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

16

MTD 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

MTD 751B790067

Shroud

$

$

Currently unavailable

18

MTD 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

19

MTD 725-3166

Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

20

MTD 731-1613

Safety Switch Cover
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

21

MTD 710-0224

Hex Washer Screw #10-16 x.50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

22

MTD 629-0920A

Wire Harness

$41.99

$

Usually ships in 3-6 days

0

23

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

25

MTD 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

26

MTD 781-0778A

Switch Mounting Bracket
(Superseded to 781-0778A-0637)

Variations

MTD 781-0778A-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

27

MTD 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

28

MTD 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

29

MTD 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

30

MTD 712-0442

Cap Lock Nut, 1/4-20

$6.99

$

In Stock, only 4 left!

0

31

MTD 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

32

MTD 731-2484

Hose Base Adapter
(Superseded to 681-0195)

$40.99

$

Usually ships in 3-6 days

0

33

MTD 716-0104

E Ring.500 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

34

MTD 732-3035

Compression Spring
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

35

MTD 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

36

MTD 736-3020

Flat Washer.271 ID x.630 OD

$6.99

$

In Stock, Qty 9

0

37

MTD 710-1220

Screw #12-16 x.750

$4.99

$

In Stock, only 4 left!

0

38

MTD 710-0351

Screw #10 - 16 x.500

$4.49

$

Usually ships in 3-6 days

0

39

MTD 781-04069

Flail Housing

Variations

MTD 781-04069-0638

HOUSING-FLAIL UPR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-04069-0721

HOUSING-FLAIL UPR - SEARS RED (0721)

$

$

Not available

MTD 781-04069-4044

HOUSING-FLAIL UPR - CRAFTSMAN RED (4044)

$

$

Not available

$

$

40

MTD 746-04156

Drive Control Cable
(Superseded to 746P04156)

$42.99

$

In Stock, only 3 left!

0

41

MTD 731-1820

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

42

MTD 681-0122

Chipper Chute Assembly

Variations

MTD 681-0122-0498

CHUTE CHIPPER ASM. - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0122-0638

CHUTE CHIPPER ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0122-0662

CHUTE CHIPPER ASM. - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0122-0665

CHUTE CHIPPER ASM. - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0122-0689

CHUTE CHIPPER ASM. - POLO GREEN (0689)

$

$

Not available

MTD 681-0122-0716

No Longer Available CHUTE CHIP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0122-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$

$

Not available

MTD 681-0122-4021

No Longer Available CHUTE CHIP - CUB YELLOW 2 (4021)

$

$

Not available

MTD 681-0122-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

43

MTD 746-04155

Speed Control Cable
(Superseded to 946-04155A)

$92.99

$

Usually ships in 3-6 days

0

44

MTD 710-1122

Hex Screw, 1/4-20 x 2.50

$7.49

$

Usually ships in 3-6 days

0

45

MTD 781-1058

Hose Bracket Hanger
(Superseded to 781-1058-0637)

Variations

MTD 781-1058-0637

BRACKET-HANGAR HO - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

47

MTD 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

48

MTD 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

49

MTD 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

50

MTD 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

51

MTD 749-1270

Nozzle Handle
(Superseded to 749-1270A)

Variations

MTD 749-1270-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

52

MTD 764-0648

Vacuum Hose
(Superseded to 764-0648A)

$165.99

$

In Stock, only 3 left!

0

53

MTD 07071

Handle Grip

$12.99

$

Usually ships in 3-6 days

0

54

MTD 731-2292

Hose Adapter

$40.99

$

Usually ships in 3-6 days

0

55

MTD 736-0607

External L-Washer 5/16

$3.99

$

In Stock, Qty 20+

0

56

MTD 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

57

MTD 747-04305

Drive Control
(Superseded to 747-04305B)

$40.99

$

Usually ships in 3-6 days

0

58

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

MTD 752B699886

Fuel Cap

Note: (Not Shown)

$

$

Currently unavailable

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
