247.770990 (24A-070H799) - Craftsman Walk-Behind Yard Vacuum (2005-2) (Sears) Frame & Handle Assembly Parts Diagram

Walk-Behind Yard Vacuum

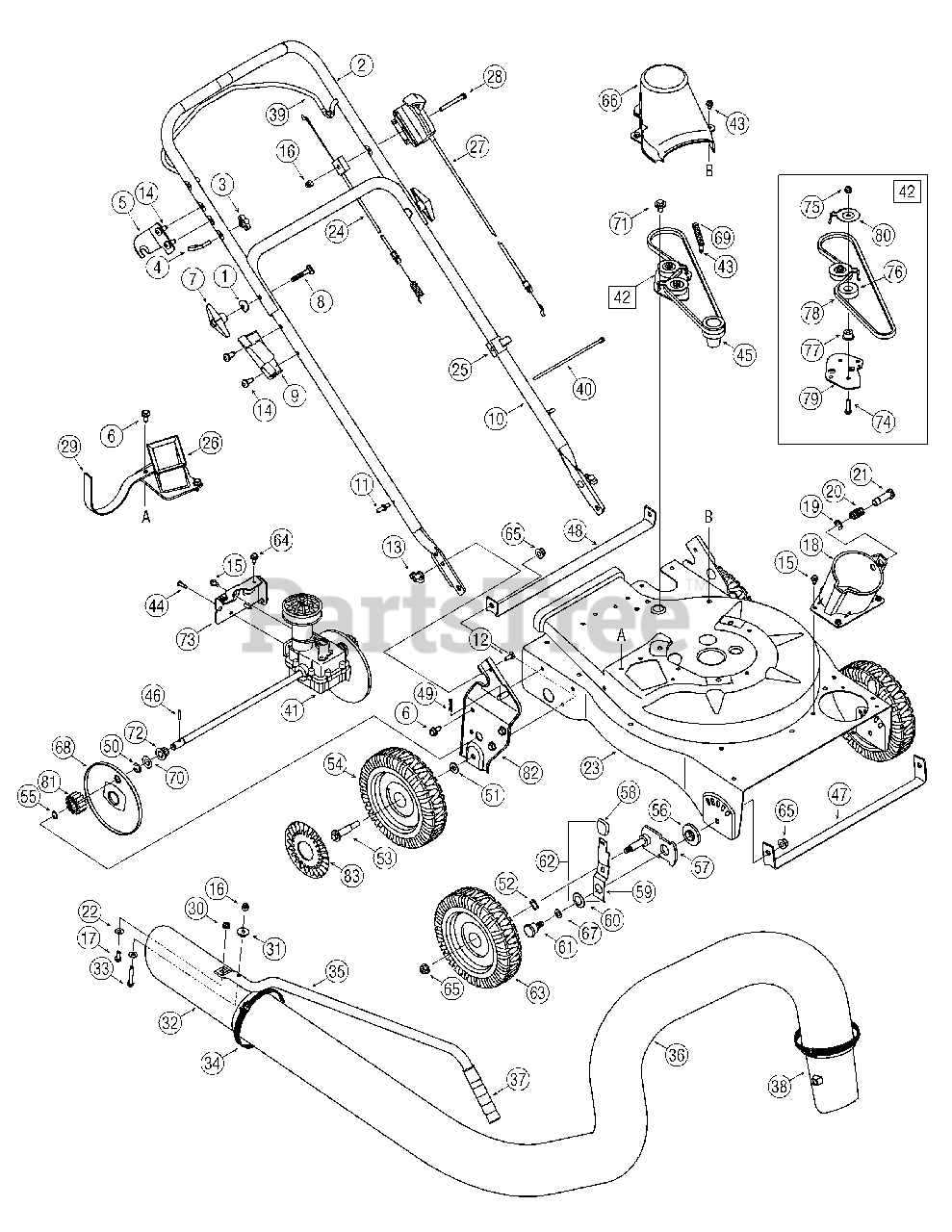

Frame & Handle Assembly Parts Diagram

  • Title

1

MTD 736-0451

Saddle Washer, .320 x.93

$4.49

$

In Stock, Qty 11

0

2

MTD 749-04163

Upper Handle
(Superseded to 749-04163A)

Variations

MTD 749-04163-0637

HANDLE-UPPER BLA - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 781-1056

Upper Handle Bracket
(Superseded to 781-1056-0637)

Variations

MTD 781-1056-0637

Handle Bracket, Upper - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

6

MTD 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

7

MTD 720-0241

Handle Knob 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

8

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

MTD 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

10

MTD 749-04165

Lower Handle
(Superseded to 749-04165-0637)

Variations

MTD 749-04165-0637

Lower Handle, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

11

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

12

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

15

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0442

Cap Lock Nut, 1/4-20

$6.99

$

In Stock, only 4 left!

0

17

MTD 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

18

MTD 681-0195

Hose Base Adapter Assembly (Incl. Ref.# 19-21)

$40.99

$

Usually ships in 3-6 days

0

19

MTD 716-0104

E Ring.500 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

20

MTD 732-3035

Compression Spring
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

21

MTD 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

22

MTD 736-3020

Flat Washer.271 ID x.630 OD

$6.99

$

In Stock, Qty 9

0

23

MTD 781-04069

Upper Flail Housing

Variations

MTD 781-04069-0638

HOUSING-FLAIL UPR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-04069-0721

HOUSING-FLAIL UPR - SEARS RED (0721)

$

$

Not available

MTD 781-04069-4044

HOUSING-FLAIL UPR - CRAFTSMAN RED (4044)

$

$

Not available

$

$

24

MTD 746-04156

Drive Control Cable
(Superseded to 746P04156)

$42.99

$

In Stock, only 1 left!

0

25

MTD 731-1820

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

26

MTD 681-0122

Chipper Chute Assembly

Variations

MTD 681-0122-0498

CHUTE CHIPPER ASM. - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0122-0638

CHUTE CHIPPER ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0122-0662

CHUTE CHIPPER ASM. - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0122-0665

CHUTE CHIPPER ASM. - YARDMAN GREEN (0665)

$

$

Not available

MTD 681-0122-0689

CHUTE CHIPPER ASM. - POLO GREEN (0689)

$

$

Not available

MTD 681-0122-0716

No Longer Available CHUTE CHIP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 681-0122-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$

$

Not available

MTD 681-0122-4021

No Longer Available CHUTE CHIP - CUB YELLOW 2 (4021)

$

$

Not available

MTD 681-0122-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

27

MTD 746-04155

Speed Control Cable
(Superseded to 946-04155A)

$92.99

$

Usually ships in 3-6 days

0

28

MTD 710-1122

Hex Screw, 1/4-20 x 2.50

$7.49

$

Usually ships in 3-6 days

0

29

MTD 781-1058

Hose Hanger Bracket
(Superseded to 781-1058-0637)

Variations

MTD 781-1058-0637

BRACKET-HANGAR HO - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

MTD 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

32

MTD 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

33

MTD 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

34

MTD 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

35

MTD 749-1270

Nozzle Handle
(Superseded to 749-1270A)

Variations

MTD 749-1270-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

36

MTD 764-0648

Vacuum Hose
(Superseded to 764-0648A)

$165.99

$

In Stock, only 3 left!

0

37

MTD 07071

Handle Grip

$12.99

$

Usually ships in 3-6 days

0

38

MTD 731-2292

Hose Adapter

$40.99

$

Usually ships in 3-6 days

0

39

MTD 747-04305

Drive Control
(Superseded to 747-04305B)

$40.99

$

In Stock, only 1 left!

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 618-04175

Transmission Assembly
(Superseded to 918-04175)

$

$

Not available

42

MTD 681-04027

Idler Assembly (Incl. Ref.# 74-80)

$

$

Not available

43

MTD 710-1650

Shoulder Screw, #12-24 x .30 x .46

$4.99

$

In Stock, Qty 20+

0

44

MTD 710-1220

Screw, #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

45

MTD 711-04245

Impeller Hub
(Superseded to 911-04245)

$71.99

$

Usually ships in 3-6 days

0

46

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

47

MTD 781-04082

Front Wheel Support Brace
(Superseded to 781-04082-0637)

Variations

MTD 781-04082-0637

BRACE-SUPT WHL FRT - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

48

MTD 781-04081

Rear Wheel Support Brace
(Superseded to 781-04081-0637)

Variations

MTD 781-04081-0637

BRACE-SUPT WHL RR - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

49

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

50

MTD 716-0104

E-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

51

MTD 736-0258

Flat Washer, .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

52

MTD 736-0232

Wave Washer.531 ID x.781 OD

$4.99

$

In Stock, Qty 12

0

53

MTD 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

54

MTD 734-2042

Wheel, 8 x 2.125
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

55

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

56

MTD 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

57

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

58

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

59

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

60

MTD 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

61

MTD 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

62

MTD 687-02051

Height Lever Assembly (Incl. Ref.# 58-59)

$9.49

$

Usually ships in 3-6 days

0

63

MTD 734-2004A

Wheel 8 x 2
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

64

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

65

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

66

MTD 731-04879

Belt Cover

$28.99

$

Usually ships in 3-6 days

0

67

MTD 736-0314

Thrust Washer.375 ID x.70 OD

$6.99

$

Usually ships in 3-6 days

0

68

MTD 731-2522

Wheel Cover
(Superseded to 731-04643)

$8.49

$

In Stock, only 1 left!

0

69

MTD 732-04217

Extension Spring,.375 x 2.95

$10.99

$

Usually ships in 3-6 days

0

70

MTD 736-0369

Flat Washer,.508ID x1.00OD x.020

$4.49

$

In Stock, Qty 20+

0

71

MTD 738-0930

Shoulder Screw,.560 x.165

$6.99

$

In Stock, only 1 left!

0

72

MTD 741-04108

Drive Axle Bushing

$5.99

$

In Stock, Qty 11

0

73

MTD 781-04078

Transmission Mounting Bracket
(Superseded to 781-04078-0637)

Variations

MTD 781-04078-0637

BRACKET-MTG TRANS - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

74

MTD 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 13

0

75

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

76

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

77

MTD 750-1050

Flange Spacer,.260 x.659 x.517

$5.49

$

Usually ships in 3-6 days

0

78

MTD 754-0369

Belt, 3/8 x 32.5
(Superseded to 954-0369)

$28.99

$

In Stock, Qty 5

0

79

MTD 781-04077

Idler Bracket
(Superseded to 781-04077-0637)

Variations

MTD 781-04077-0637

BRACKET-IDLER CSV - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

80

MTD 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

81

MTD 717-1762

Spur Gear - RH

$13.99

$

In Stock, only 3 left!

0

81

MTD 717-1761

Spur Gear - LH (Not Shown)

$13.99

$

In Stock, only 4 left!

0

82

MTD 681-0156A

Handle Bracket Ass’y RH
(Superseded to 981-0156A)

Variations

MTD 681-0156A-0721

BRACKET ASM-HNDL RH - SEARS RED (0721)

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-4044

BRACKET ASM-HNDL RH - CRAFTSMAN RED (4044)

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0638

BRACKET ASM-HNDL RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0662

BRACKET ASM-HNDL RH - OYSTER GRAY (0662)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0665

BRACKET ASM-HNDL RH - YARDMAN GREEN (0665)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0689

BRACKET ASM-HNDL RH - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0691

BRKT ASM-HNDL RH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0709

BRACKET ASM-HNDL RH - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-0716

BRACKET ASM-HNDL RH - CUB YELLOW-99 (0716)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0156A-4021

BRACKET ASSY-HANDLE RH - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

82

MTD 681-0155A

Handle Brkt Ass’y LH (Not Shown)
(Superseded to 981-0155A)

Variations

MTD 681-0155A-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0638

BRACKET ASM-HNDL LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0662

BRACKET ASM-HNDL LH - OYSTER GRAY (0662)

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0665

BRACKET ASM-HNDL LH - YARDMAN GREEN (0665)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0689

BRACKET ASM-HNDL LH - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0691

BRKT ASM-HNDL LH - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0709

BRACKET ASM-HNDL LH - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0716

BRACKET ASM-HNDL LH - CUB YELLOW-99 (0716)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-0721

BRACKET ASM-HNDL LH - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-4021

BRACKET ASSY-HANDLE LH - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

MTD 681-0155A-4044

BRACKET ASM-HNDL LH - CRAFTSMAN RED (4044)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

83

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0
