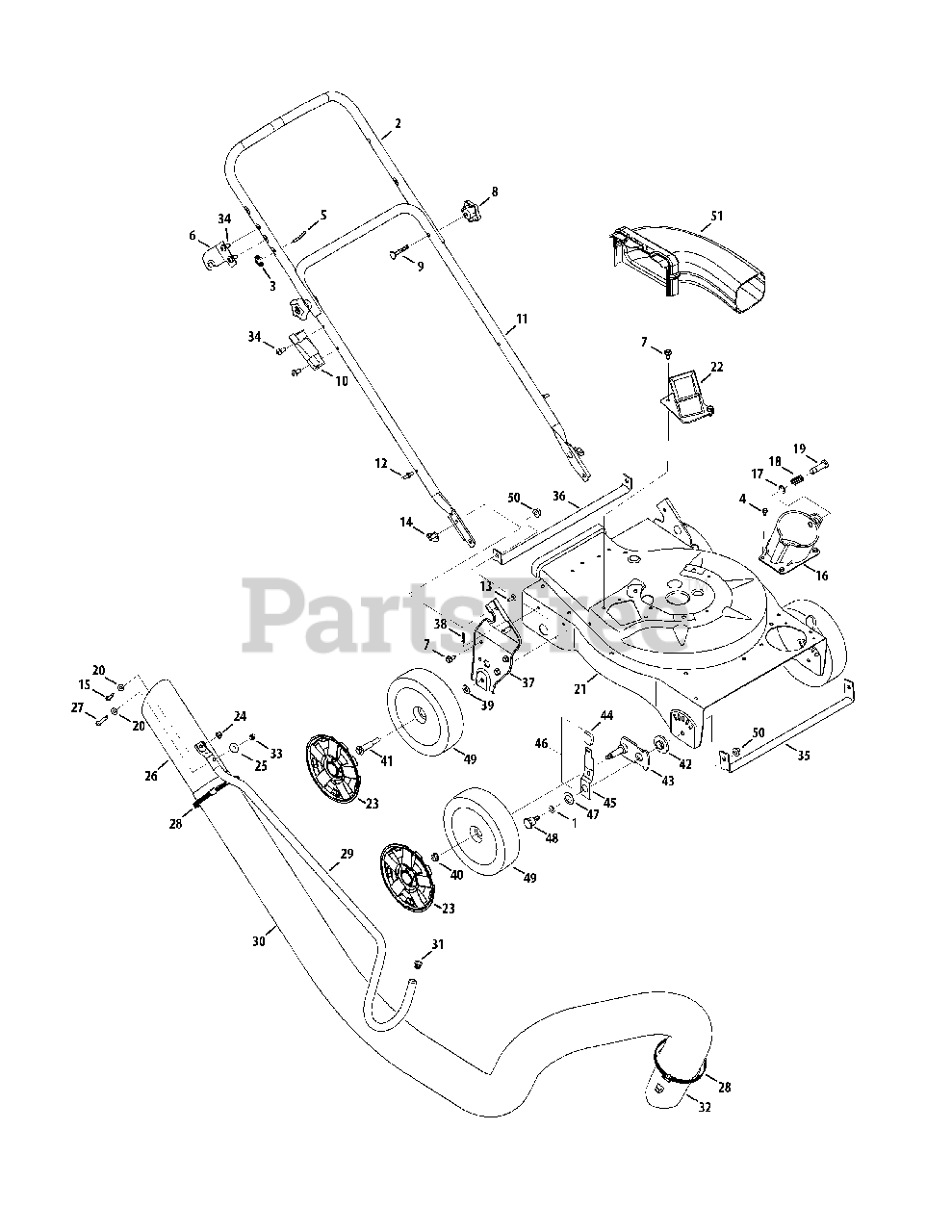

247.770330 (24A-060H799) - Craftsman Chipper Shredder Vacuum (2015) Handle & Hose Parts Diagram

Chipper Shredder Vacuum

Handle & Hose Parts Diagram

  • Title

1

MTD 936-0314

Thrust Washer.375 ID x.70 OD
(Superseded to 736-0314)

$

$

Not available

2

MTD 749-04163-0637

Upper Handle
(Superseded to 749-04163A-0637)

$49.99

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

6

MTD 781-1056-0637

Upper Handle Bracket

$24.99

$

In Stock, only 1 left!

0

7

MTD 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

8

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

9

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

10

MTD 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

11

MTD 749-04165-0637

Lower Handle

$43.99

$

Usually ships in 3-6 days

0

12

MTD 711-06418

Studs

$6.49

$

Usually ships in 3-6 days

0

13

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0397A

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0751

Hex Cap Screw 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

16

MTD 681-0195

Hose Base Adapter Assembly

Note: (Incl. Ref.# 17-19)

$40.99

$

Usually ships in 3-6 days

0

17

MTD 916-0104

E Ring.500 Dia

$3.99

$

In Stock, Qty 20+

0

18

MTD 932-3035

Compression Spring

$11.99

$

Usually ships in 3-6 days

0

19

MTD 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

20

MTD 936-3020

Flat Washer.271 ID x.630 OD
(Superseded to 736-3020)

$

$

Not available

21

MTD 781-04223-4044

Upper Flail Housing

$200.99

$

Usually ships in 3-6 days

0

22

MTD 681-04088-4044

Chipper Chute Assembly

$75.99

$

Usually ships in 3-6 days

0

23

MTD 731-07173

Hubcap, 8"

$6.49

$

In Stock, only 4 left!

0

24

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

MTD 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

26

MTD 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

27

MTD 710-3288

Hex Cap Screw 1/4-20 x 1.62

$6.99

$

In Stock, Qty 12

0

28

MTD 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

29

MTD 749-1270A

Nozzle Handle

Variations

MTD 749-1270A-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

30

MTD 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 3 left!

0

31

MTD 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

32

MTD 731-2292

Hose Adapter, Briggs

$40.99

$

Usually ships in 3-6 days

0

33

MTD 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

34

MTD 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

35

MTD 781-04082-0637

Front Wheel Support Brace

$28.99

$

Usually ships in 3-6 days

0

36

MTD 781-04081-0637

Rear Wheel Support Brace

$27.99

$

Usually ships in 3-6 days

0

37

MTD 981-0156A-0637

Handle Bracket Ass’y RH

$45.99

$

Usually ships in 3-6 days

0

37

MTD 981-0155A-0637

Handle Brkt Ass’y LH

$45.99

$

Usually ships in 3-6 days

0

38

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

40

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

41

MTD 738-04523

Shoulder Screw 3/8-16

$9.99

$

Usually ships in 3-6 days

0

42

MTD 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

43

MTD 681-04195

Pivot Arm Assembly

$14.99

$

Usually ships in 3-6 days

0

44

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

45

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

46

MTD 987-02051

Height Lever Assembly
(Superseded to 687-02051)

Note: (Incl. Ref.# 44-45)

$

$

Not available

47

MTD 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

48

MTD 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

49

MTD 634-04665

Wheel, 8 x 2

$40.99

$

Usually ships in 3-6 days

0

50

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

MTD OEM-290-012

Blower Chute Assembly

$99.99

$

Usually ships in 3-6 days

0
