247.770130 (24A-070J799) - Craftsman Vacuum (2009) (Sears) General Assembly Parts Diagram

Vacuum

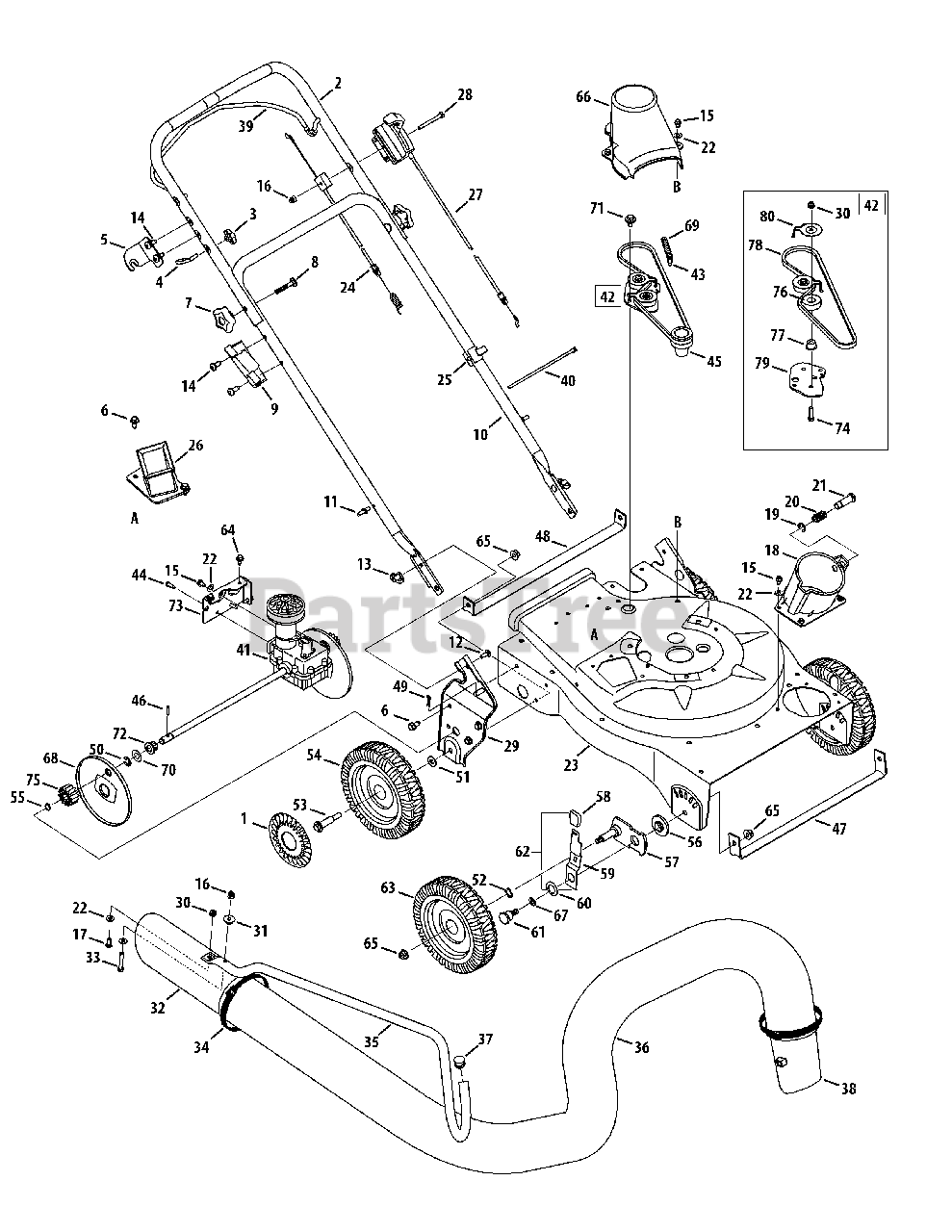

General Assembly Parts Diagram

  • Title

1

MTD 731-07001

Hub Cap

$5.49

$

In Stock, only 2 left!

0

2

MTD 749-04163-0637

Upper Handle
(Superseded to 749-04163A-0637)

$49.99

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 781-1056-0637

Upper Handle Bracket

$24.99

$

In Stock, only 1 left!

0

6

MTD 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

7

MTD 720-04072A

Handle Knob 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

MTD 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

10

MTD 749-04165-0637

Lower Handle

$43.99

$

Usually ships in 3-6 days

0

11

MTD 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

12

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

13

MTD 912-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

15

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

MTD 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

17

MTD 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

18

MTD 681-0195

Hose Base Adapter Assembly (Incl. Ref.# 19-21)

$40.99

$

Usually ships in 3-6 days

0

19

MTD 916-0104

E Ring.500 Dia

$3.99

$

In Stock, Qty 20+

0

20

MTD 932-3035

Compression Spring

$11.99

$

Usually ships in 3-6 days

0

21

MTD 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

22

MTD 936-3020

Flat Washer.271 ID x.630 OD
(Superseded to 736-3020)

$

$

Not available

23

MTD 781-04266-0721

Upper Flail Housing
(Superseded to 781-04266-4044)

$194.99

$

Usually ships in 3-6 days

0

24

MTD 746-04156

Drive Control Cable
(Superseded to 746P04156)

$42.99

$

In Stock, only 2 left!

0

25

MTD 731-1820

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

26

MTD 681-04088-0721

Chipper Chute Assembly
(Superseded to 681-04088-4044)

$75.99

$

Usually ships in 3-6 days

0

27

MTD 746-04155

Speed Control Cable
(Superseded to 946-04155A)

$92.99

$

Usually ships in 3-6 days

0

28

MTD 710-1122

Hex Screw, 1/4-20 x 2.50

$7.49

$

Usually ships in 3-6 days

0

29

MTD 981-0156A-0721

Handle Bracket Ass’y RH
(Superseded to 981-0156A-4044)

$45.99

$

Usually ships in 3-6 days

0

29

MTD 981-0155A-0721

Handle Bracket Ass’y LH
(Superseded to 981-0155A-4044)

Note: (Not Shown)

$42.99

$

Usually ships in 3-6 days

0

30

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

MTD 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

32

MTD 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

33

MTD 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

34

MTD 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

35

MTD 749-1270A

Nozzle Handle

Variations

MTD 749-1270A-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

36

MTD 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 3 left!

0

37

MTD 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

38

MTD 731-2292

Hose Adapter

$40.99

$

Usually ships in 3-6 days

0

39

MTD 747-04305A

Drive Control
(Superseded to 747-04305B)

$40.99

$

Usually ships in 3-6 days

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 918-04460

Transmission Assembly

$277.99

$

Usually ships in 3-6 days

0

42

MTD 981-04027

Idler Assembly (Incl. Ref.# 74-80)

$

$

Not available

43

MTD 710-1650

Shoulder Screw, #12-24 x .30 x .46

$4.99

$

In Stock, Qty 20+

0

44

MTD 710-1220

Screw, #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

45

MTD 911-04245

Impeller Hub

$71.99

$

Usually ships in 3-6 days

0

46

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

47

MTD 781-04082-0637

Front Wheel Support Brace

$28.99

$

Usually ships in 3-6 days

0

48

MTD 781-04081-0637

Rear Wheel Support Brace

$27.99

$

Usually ships in 3-6 days

0

49

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

50

MTD 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

51

MTD 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

52

MTD 936-0232

Wave Washer.531 ID x.781 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

53

MTD 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

54

MTD 934-2042A

Rear Wheel
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

55

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

56

MTD 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

57

MTD 687-02342

Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

58

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

59

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

60

MTD 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

61

MTD 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

62

MTD 987-02051

Height Lever Assembly (Incl. Ref.# 58-59)
(Superseded to 687-02051)

$

$

Not available

63

MTD 734-2004B

Front Wheel
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

64

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

65

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

66

MTD 731-04879

Belt Cover

$28.99

$

Usually ships in 3-6 days

0

67

MTD 936-0314

Thrust Washer.375 ID x.70 OD
(Superseded to 736-0314)

$

$

Not available

68

MTD 731-04643

Wheel Cover

$8.49

$

In Stock, only 1 left!

0

69

MTD 732-04217

Extension Spring,.375 x 2.95

$10.99

$

Usually ships in 3-6 days

0

70

MTD 936-0369

Flat Washer,.508ID x1.00OD x.020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

71

MTD 738-0930

Shoulder Screw,.560 x.165

$6.99

$

In Stock, only 1 left!

0

72

MTD 741-04108

Drive Axle Bushing

$5.99

$

In Stock, Qty 12

0

73

MTD 781-04078-0637

Transmission Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

74

MTD 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

75

MTD 717-1762

Spur Gear - RH

$13.99

$

In Stock, only 3 left!

0

75

MTD 717-1761

Spur Gear - LH

Note: (Not Shown)

$13.99

$

In Stock, only 4 left!

0

76

MTD 941-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

77

MTD 750-1050

Flange Spacer,.260 x.659 x.517

$5.49

$

Usually ships in 3-6 days

0

78

MTD 954-0369

Belt, 3/8 x 32.5

$28.99

$

In Stock, Qty 5

0

79

MTD 781-04077-0637

Idler Bracket

$14.99

$

Usually ships in 3-6 days

0

80

MTD 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0
