247.770130 (24A-070J799) - Craftsman Vacuum (2008) (Sears) Impeller Assembly Parts Diagram

Vacuum

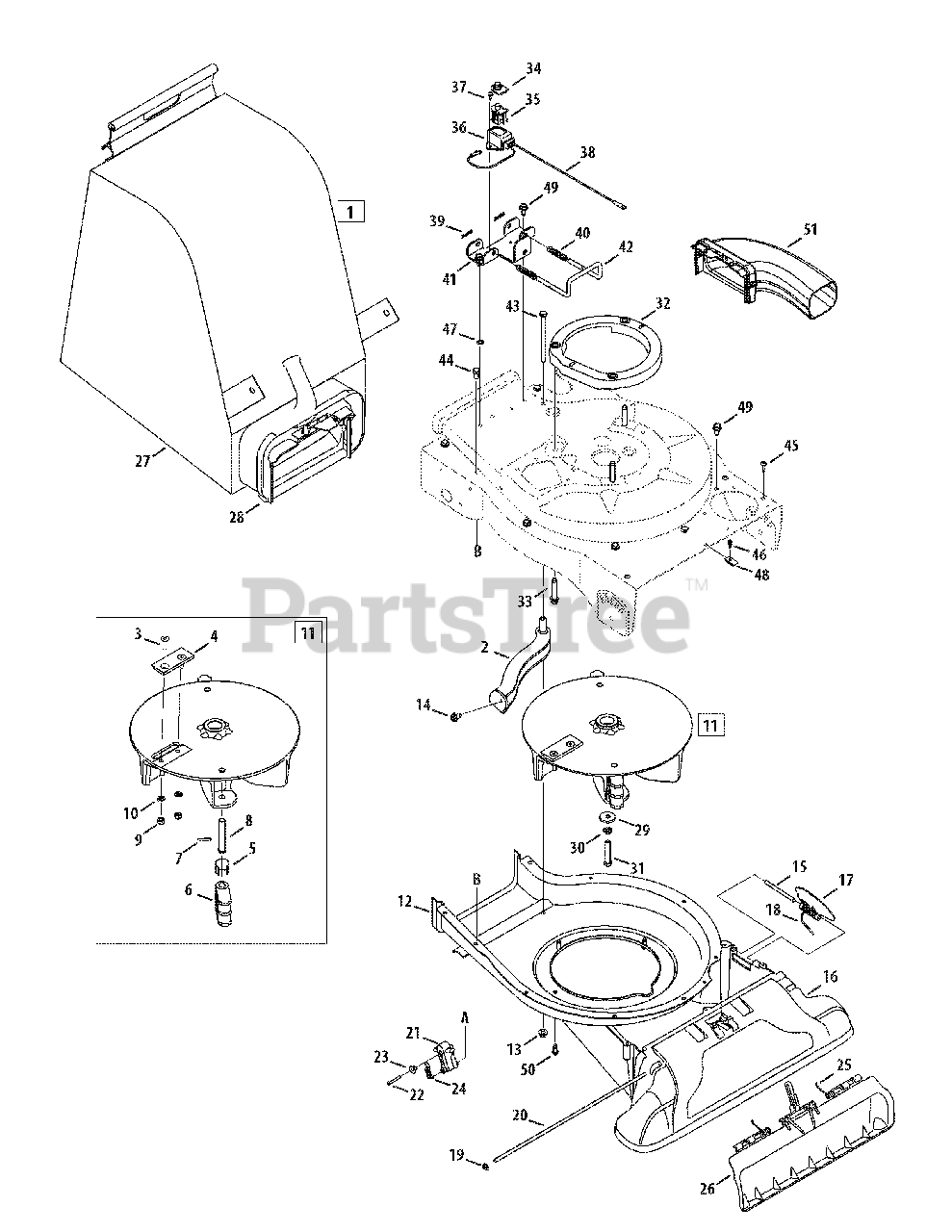

Impeller Assembly Parts Diagram

  • Title
1

MTD 664-0094

Bag Assembly
(Superseded to 664P0094B)

$326.99

$

Usually ships in 3-6 days

0

2

MTD 681-0154-0637

Screen Assembly

$48.99

$

Usually ships in 3-6 days

0

3

MTD 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

MTD 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 9

0

5

MTD 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

6

MTD 719-0329

Flail

$31.99

$

In Stock, Qty 5

0

7

MTD 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 19

0

8

MTD 711-1401

Clevis Pin

$9.99

$

Usually ships in 3-6 days

0

9

MTD 712-0411

Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 681-0152

Impeller Assembly
(Superseded to 981-0152)

Note: (Incl. Ref No. 3 - 10)

$534.99

$

Usually ships in 3-6 days

0

12

MTD 781-0721B-0721

Lower Flail Housing
(Superseded to 781-0721B-4044)

$157.99

$

Usually ships in 3-6 days

0

13

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, only 4 left!

0

14

MTD 710-0607

Screw, 5/16-18 x.500

$6.99

$

In Stock, Qty 11

0

15

MTD 747-04297

Hinge Pin

$6.99

$

Usually ships in 3-6 days

0

16

MTD 731-2293A

Nozzle
(Superseded to 981-04031)

$199.99

$

Usually ships in 3-6 days

0

17

MTD 781-1064

Base Adapter Door

$36.99

$

Usually ships in 3-6 days

0

18

MTD 732-1156

Torsion Spring

$4.99

$

Usually ships in 3-6 days

0

19

MTD 726-0106

Cap Speed Nut 1/4

$3.99

$

Usually ships in 3-6 days

0

20

MTD 711-1551

Pivot Rod

$12.99

$

Usually ships in 3-6 days

0

21

MTD 731-04967

Nozzle Door Lever

$13.99

$

In Stock, only 1 left!

0

22

MTD 710-1256

Hex Screw, #8-18 x 1.25

$5.99

$

In Stock, only 2 left!

0

23

MTD 750-1294

Shoulder Spacer

$13.99

$

Usually ships in 3-6 days

0

24

MTD 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

25

MTD 732-1151A

Nozzle Door Torsion Spring

$4.99

$

In Stock, only 2 left!

0

26

MTD 731-2294A

Nozzle Door

$42.99

$

In Stock, Qty 7

0

27

MTD 664-04039

Bag
(Superseded to 664-04039A)

$225.99

$

Usually ships in 3-6 days

0

28

MTD 631-0083

Chute Assembly
(Superseded to 631P0083A)

$107.99

$

Usually ships in 3-6 days

0

29

MTD 736-0247

Flat Washer.375 ID x 1.25 OD

$9.49

$

In Stock, Qty 14

0

30

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 8

0

31

MTD 710-1273

Hex Cap Screw, 3/8-24 x 2.75

$7.99

$

Usually ships in 3-6 days

0

32

MTD 631-04118

Engine Spacer Assembly

$38.99

$

Usually ships in 3-6 days

0

33

MTD 710-1008

Screw, 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

34

MTD 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

35

MTD 725-3166

Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

36

MTD 731-1613

Safety Switch Cover
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

37

MTD 710-0224

Hex Washer Screw #10-16 x.50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

38

MTD 629-0920A

Wire Harness

$41.99

$

Usually ships in 3-6 days

0

39

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

40

MTD 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

41

MTD 781-0778A-0637

Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

42

MTD 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

43

MTD 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

44

MTD 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

45

MTD 710-1220

Screw, #12-16 x.750

$4.99

$

In Stock, only 4 left!

0

46

MTD 710-0351

Screw #10 - 16 x.500

$4.49

$

Usually ships in 3-6 days

0

47

MTD 736-0607

External L-Washer 5/16

$3.99

$

In Stock, Qty 20+

0

48

MTD 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

49

MTD 710-0726

Hex Index Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

50

MTD 710-1650

Shoulder Screw, #12-24 x .30 x .46

$4.99

$

In Stock, Qty 20+

0

51

MTD 631-0090

Blower Chute
(Superseded to OEM-290-012)

$99.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
